Description

Price

1

PAD SET, RR.

06435-HN8-016

Unavailable

2

SEAL SET, PISTON

06451-HN8-006

$11.93

3

CALIPER SUB-ASSY., RR.

43150-HN8-006

$192.64

4

BRACKET, RR.

43210-HN8-006

$52.72

5

RETAINER, BRACKET

43211-HN8-006

$6.75

6

PISTON ASSY.

43215-SH3-931

$134.84

7

CUP

43218-T5B-003

$4.54

8

BEARING A

43223-SD2-932

$19.29

9

SPRING B, ADJUSTING

43224-SD2-931

$5.19

10

ROD

43229-SD2-931

$10.54

11

O-RING (NISSIN)

43232-TA0-A01

$0.94

12

PISTON, SLEEVE

43233-TR0-A01

$27.15

13

COVER, DUST

43234-S04-003

$6.24

14

PIN A

43235-S84-A51

$8.68

15

SPACER

43236-S04-003

$7.66

16

RING, RETAINING

43238-SD2-931

$9.63

17

BOLT, FLANGE (8X26)

43240-S6M-J51

$5.35

18

GUIDE, SPRING

43241-SD2-931

$9.40

19

COVER, SHAFT

43242-SD2-933

$10.87

20

NUT (10MM)

43243-HN8-006

Unavailable

21

LEVER, BRAKE LOCK

43245-HN8-006

$9.19

22

SPRING, ARM RETURN

43246-HN8-006

$3.32

23

SHAFT B

43248-SD2-933

$37.91

24

BOLT, ADJUSTER

43249-S04-003

$21.59

25

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.04

26

CAP, BLEEDER

43353-461-771

$4.83

27

NUT, BRAKE ADJUSTING

43459-HB2-000

$10.18

28

SPRING, PAD

45108-HN8-006

$6.82

29

SLEEVE, BOOT

45233-HN8-305

$6.48

29

SLEEVE, BOOT This part replaces 45233-S3Y-003.

45233-HN8-305

$6.48

30

SLEEVE

45235-S3Y-003

$15.85

31

BOLT, FLANGE (8X74)

45241-S3Y-003

$7.55

32

BOLT, FLANGE (8X40)

90131-MS6-900

$3.89

33

WASHER, SPRING (10MM)

94111-10800

$1.07

34

JOINT B, BRAKE ARM

95015-32001

$0.87

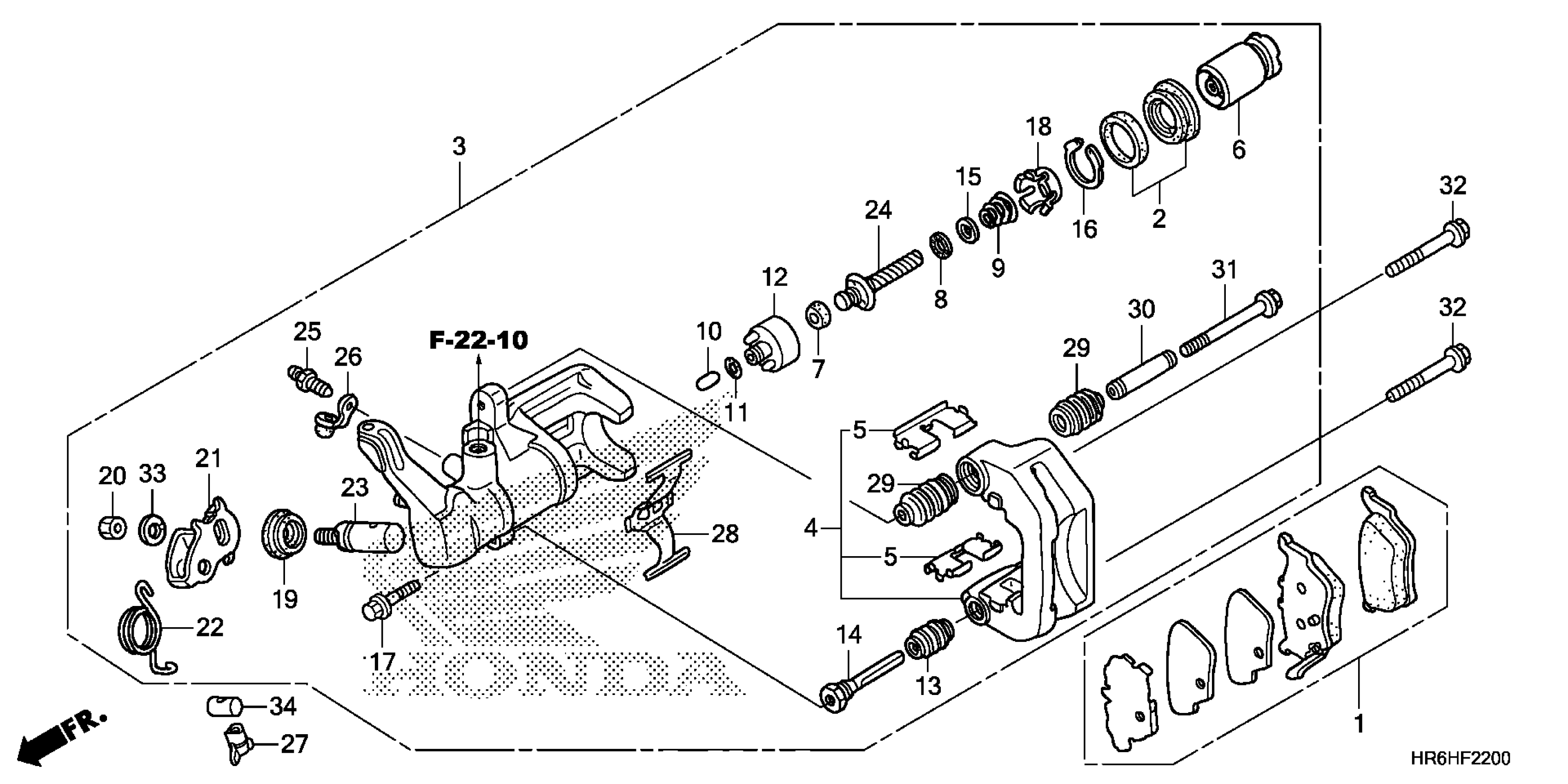

Honda TRX500FA5A (18) TRX500FA5, USA, VIN# 1HFTE46E-J4300001 REAR BRAKE CALIPER Diagram
