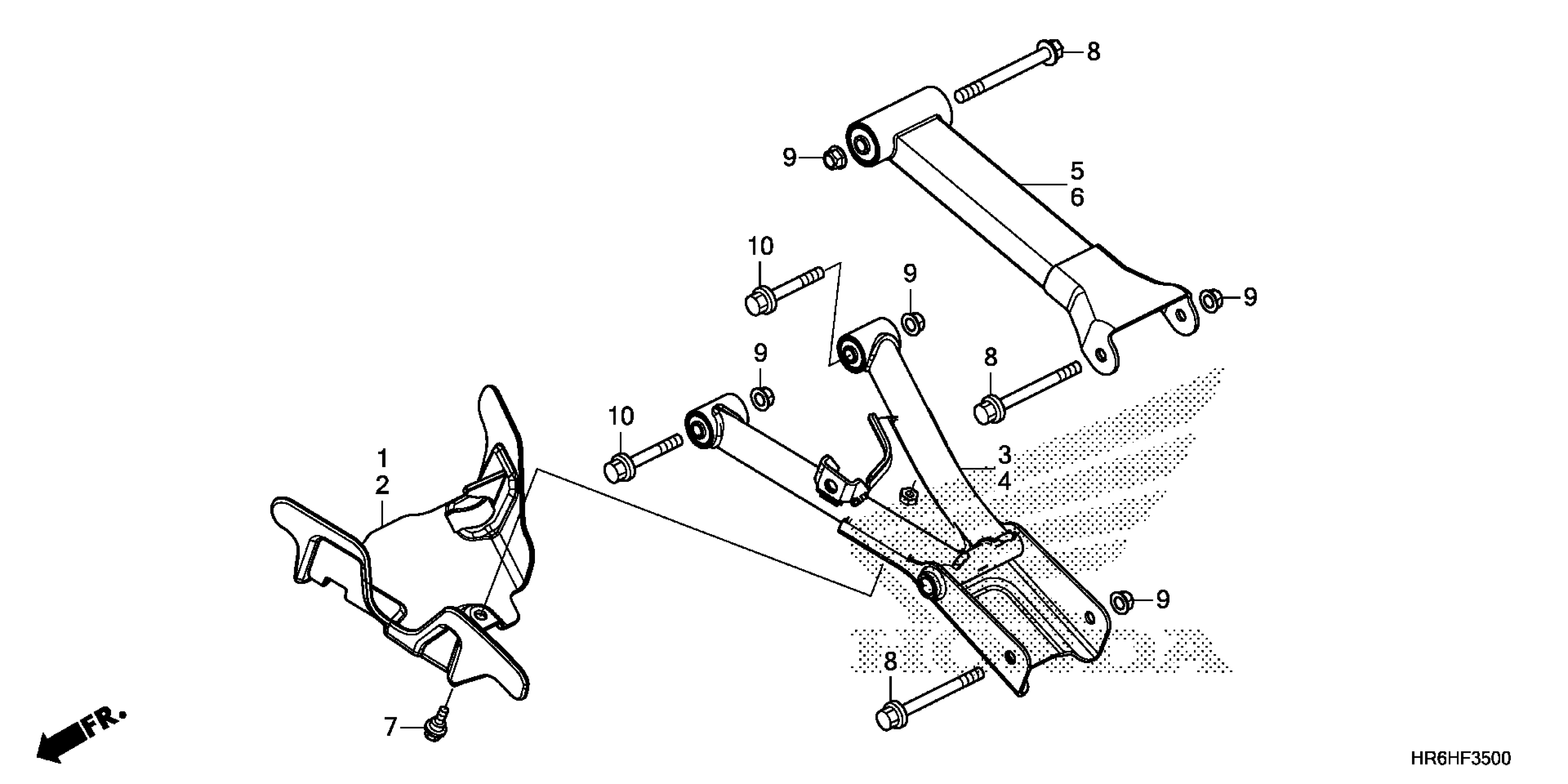

Honda TRX500FA5A (18) TRX500FA5, USA, VIN# 1HFTE46E-J4300001 REAR ARM Diagram

#

Description

Price

1

GUARD, R. RR. BOOT

52315-HR6-A60

$5.51

2

GUARD, L. RR. BOOT

52325-HR6-A60

$5.51

3

ARM ASSY., R. RR. (LOWER) (TYPE1) | Close range camo YRA05L;

52350-HR6-A60ZB

$172.44

4

ARM ASSY., L. RR. (LOWER) (TYPE1) | Close range camo YRA05L;

52360-HR6-A60ZB

$144.31

5

ARM ASSY., R. RR. (UPPER) (TYPE1) | Close range camo YRA05L;

52370-HR6-A60ZB

$62.16

6

ARM ASSY., L. RR. (UPPER) (TYPE1) | Close range camo YRA05L;

52380-HR6-A60ZB

$62.16

7

BOLT, FLANGE (6MM)

90111-KT1-780

$13.35

8

BOLT, FLANGE (10X110)

90121-HL1-A00

$4.05

9

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.86

10

BOLT, FLANGE (10X62)

90151-HC5-000

$7.40

10

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.40
