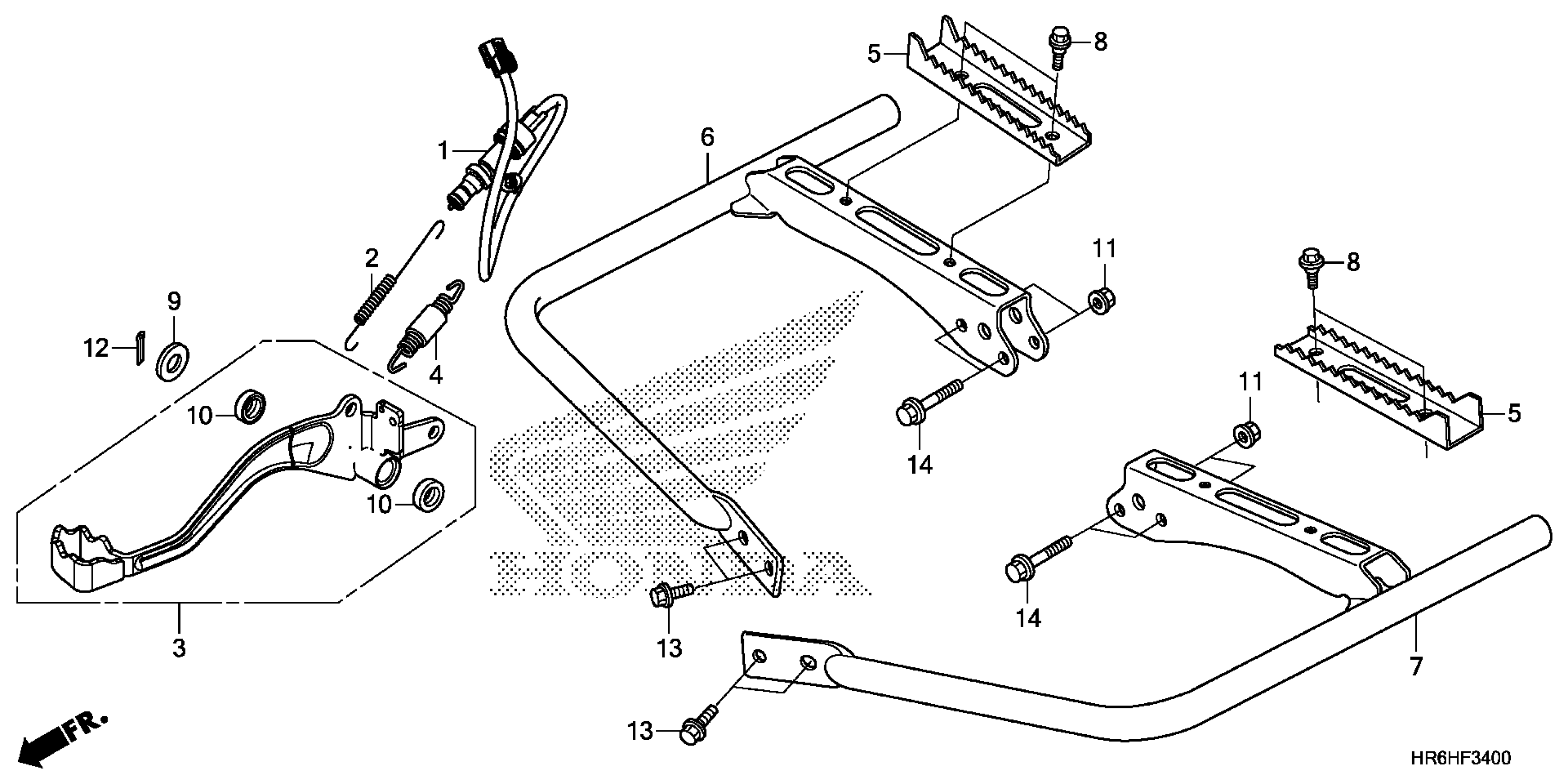

Honda TRX500FA5A (18) TRX500FA5, USA, VIN# 1HFTE46E-J4300001 PEDAL + STEP Diagram

SWITCH ASSY., RR. STOP

35350-HR6-A61

$16.57

SPRING, STOP SWITCH

35357-HP5-600

$3.01

PEDAL ASSY., BRAKE This part replaces 46510-HR6-A60.

46510-HR6-B00

$34.62

SPRING ASSY., RR. BRAKE PEDAL

46513-HR3-A20

$4.92

STEP

50610-HR3-A20

$4.67

BRACKET, R. STEP

50611-HR3-A20

$21.14

BRACKET, L. STEP

50612-HR3-A20

$21.14

BOLT, FLANGE (6MM)

90111-HP0-A00

$2.66

WASHER (17.5MM)

90512-303-000

$1.77

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.69

DUST SEAL (17X23X3) (NOK) This part replaces 91206-968-004.

91206-968-003

$3.69

NUT, FLANGE (8MM)

94050-08000

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, SPLIT (3.0X45)

94201-30450

$1.49

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

BOLT, FLANGE (8X16) This part replaces 95801-08016-00.

95701-08016-00

$1.80

BOLT, FLANGE (8X45)

95801-08045-00

$1.80
