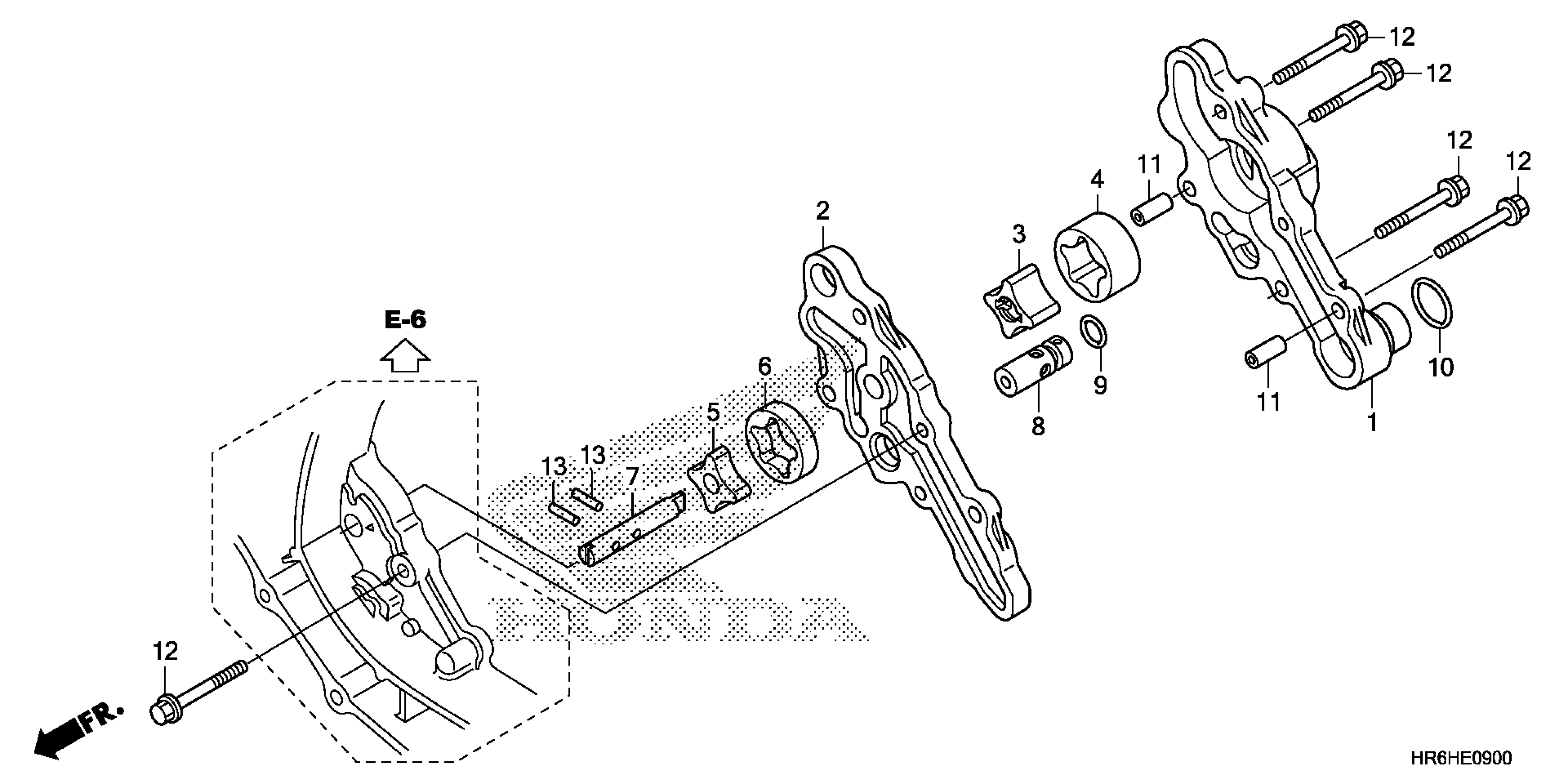

Honda TRX500FA5A (18) TRX500FA5, USA, VIN# 1HFTE46E-J4300001 OIL PUMP Diagram

#

Description
Price

1

BODY A, OIL PUMP

15101-HR6-A60

$23.00

2

BODY B, OIL PUMP

15102-HR6-A60

$10.58

3

ROTOR A, OIL PUMP (INNER)

15128-HR6-A61

$9.25

4

ROTOR A, OIL PUMP (OUTER)

15129-HR6-A61

$12.07

5

ROTOR B, OIL PUMP (INNER)

15130-HR6-A61

$9.21

6

ROTOR B, OIL PUMP (OUTER)

15131-HR6-A61

$12.28

7

SHAFT, OIL PUMP

15132-HR6-A60

$9.25

8

VALVE ASSY., RELIEF

15220-HP7-A00

$15.81

9

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.42

9

O-RING (14.8X2.2)

91313-MG7-004

$3.42

10

O-RING (21.2X2.4) (ARAI)

91331-PC9-003

$2.92

11

PIN, DOWEL (8X20)

94301-08200

$2.04

12

BOLT, FLANGE (6X40)

95701-06040-00

$1.71

13

ROLLER (4X15.8)

96220-40158

$0.41
