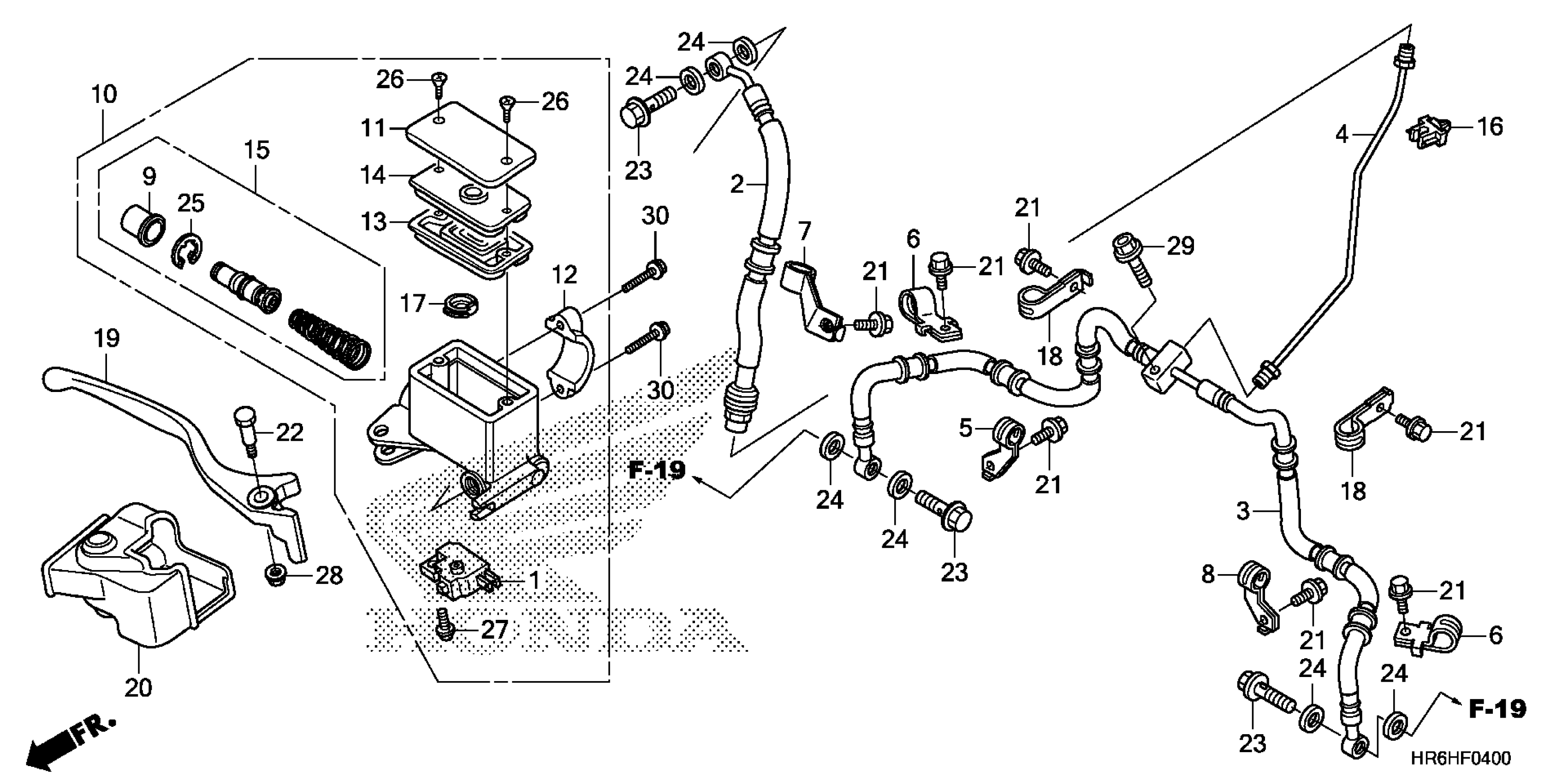

Honda TRX500FA5A (18) TRX500FA5, USA, VIN# 1HFTE46E-J4300001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.99

2

HOSE, FR. BRAKE (A)

45126-HR6-A61

$42.24

3

HOSE, FR. BRAKE (B)

45127-HR6-A61

$71.63

4

PIPE, FR. BRAKE

45128-HR3-A20

$4.40

5

CLAMP A, R. FR. BRAKE HOSE

45461-HR3-A20

$56.34

6

CLAMP B, FR. BRAKE HOSE

45462-HR0-F00

$19.70

7

CLAMP, FR. BRAKE HOSE

45464-HR3-A20

$11.46

8

CLAMP A, L. FR. BRAKE HOSE

45471-HR3-A20

$1.79

9

BOOT

45504-410-003

$11.17

10

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)

45510-HR3-305

$60.52

11

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$3.97

12

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

13

DIAPHRAGM

45520-MG7-006

$9.73

14

PLATE, DIAPHRAGM

45521-HA2-006

$9.96

15

PISTON SET, FR. MASTER CYLINDER

45530-MCA-006

$16.65

16

CLIP A

46394-S04-003

$1.19

17

SEPARATOR

46666-HB9-006

$8.64

18

CLAMP A, FR. BRAKE HOSE

51207-HN2-000

$1.34

19

LEVER, R. HANDLE (COO) This part replaces 53175-HR3-A21.

53175-HR3-305

Unavailable

19

LEVER, R. HANDLE (COO)

53175-HR3-305

Unavailable

20

COVER, R. HANDLE LEVER (COO) This part replaces 53176-HR3-A21.

53176-HR3-305

$3.13

20

COVER, R. HANDLE LEVER (COO)

53176-HR3-305

$3.13

21

BOLT, FLANGE (6X12)

90103-MCS-G00

$1.19

22

BOLT, HANDLE LEVER PIVOT

90114-KGH-900

$0.90

23

BOLT, OIL (10X22)

90145-MS9-612

$6.99

24

WASHER, OIL BOLT

90545-300-000

$5.79

25

CIRCLIP

90651-MA5-671

$2.38

26

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

26

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

27

SCREW-WASHER (4X12)

93893-04012-07

$1.32

27

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

28

NUT, FLANGE (6MM)

94050-06000

$0.60

29

BOLT, FLANGE (6X25)

95701-06025-07

$1.79

30

BOLT, FLANGE (6X22)

96001-06022-07

$1.71
