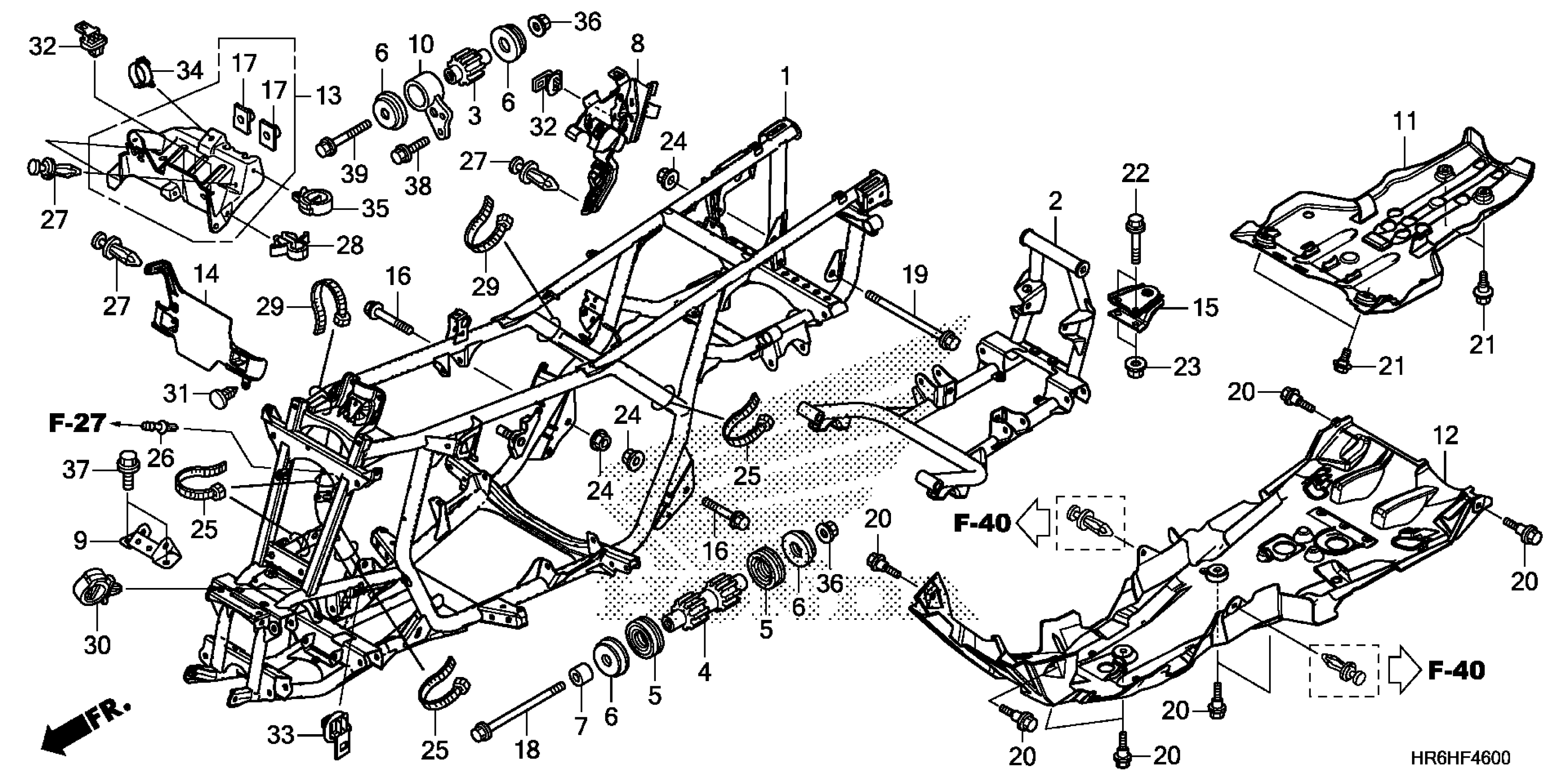

Honda TRX500FA5A (18) TRX500FA5, USA, VIN# 1HFTE46E-J4300001 FRAME Diagram

#

Description
Price

1

FRAME

50100-HR6-A60

$771.72

2

FRAME, RR. (LOWER)

50200-HR6-A60

$707.03

3

RUBBER, ENGINE HEAD MOUNTING

50201-HP5-600

$8.76

4

RUBBER, ENGINE MOUNTING (LOWER)

50202-HP0-A50

$22.64

5

DUST SEAL, ENGINE MOUNTING

50203-HM7-003

$18.33

6

RUBBER C, MOUNTING

50204-HP5-600

$6.35

7

COLLAR, ENGINE HANGER

50205-HM8-000

$7.60

8

STAY, CONNECTOR (SIDE)

50340-HR6-A60

$7.23

9

BRACKET, FR. GEAR CASE

50350-HR3-A20

$6.49

10

BRACKET, HEAD HANGER

50351-HP5-600

$9.07

11

SKID, RR. GEAR CASE

50355-HR6-A60

$9.90

12

GUARD, ENGINE *NH1* (BLACK)

50360-HR3-A20ZA

$42.81

13

STAY, CONNECTOR (FR)

50370-HR3-A20

$8.30

14

DEFLECTOR, AIR

50380-HR6-A60

$4.51

15

HITCH, TRAILER

50810-HN8-000

$60.12

16

BOLT, SWINGARM PIVOT (12X70)

52101-HR3-A20

$1.70

17

NUT, SPECIAL (6X7)

61304-958-003

$3.01

18

BOLT, ENGINE HANGER (10X148)

90103-147-000

$11.11

19

BOLT, FLANGE (12X193)

90106-MEJ-000

$15.54

20

BOLT, FLANGE (6MM)

90111-147-000

$2.62

21

BOLT, FLANGE (6MM)

90111-187-000

$5.21

22

BOLT, FLANGE (10X50)

90120-HC4-000

$6.01

23

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.80

24

NUT, FLANGE (12MM)

90306-181-761

$5.66

25

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.80

26

JOINT, BREATHER TUBE

90652-HF7-003

$8.54

27

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

28

CLIP, WIRE HARNESS (6MM) (WHITE)

90654-SA4-003

$0.20

29

BAND, SUCTION HOSE (BLACK)

90679-SG9-E01

$3.39

30

CLIP, HARNESS

90684-ZA0-601

$2.80

31

CLIP, WASHER MOUTH

91504-SD5-901

$4.09

32

CLIP, CONNECTOR (DARK BLUE)

91535-STK-003

$5.71

33

CLIP, CONNECTOR (BROWN)

91535-TF0-003

$2.77

34

CLIP, WIRE HARNESS (BLACK)

91556-SK7-003

$5.06

35

CLIP, WIRE HARNESS (BLACK)

91558-SD5-003

$7.04

36

NUT, FLANGE (10MM)

94050-10000

$1.41

37

BOLT, FLANGE (8X16)

95701-08016-07

$1.59

38

BOLT, FLANGE (8X22)

95701-08022-00

$1.91

39

BOLT, FLANGE (10X60)

95701-10060-00

$1.80
