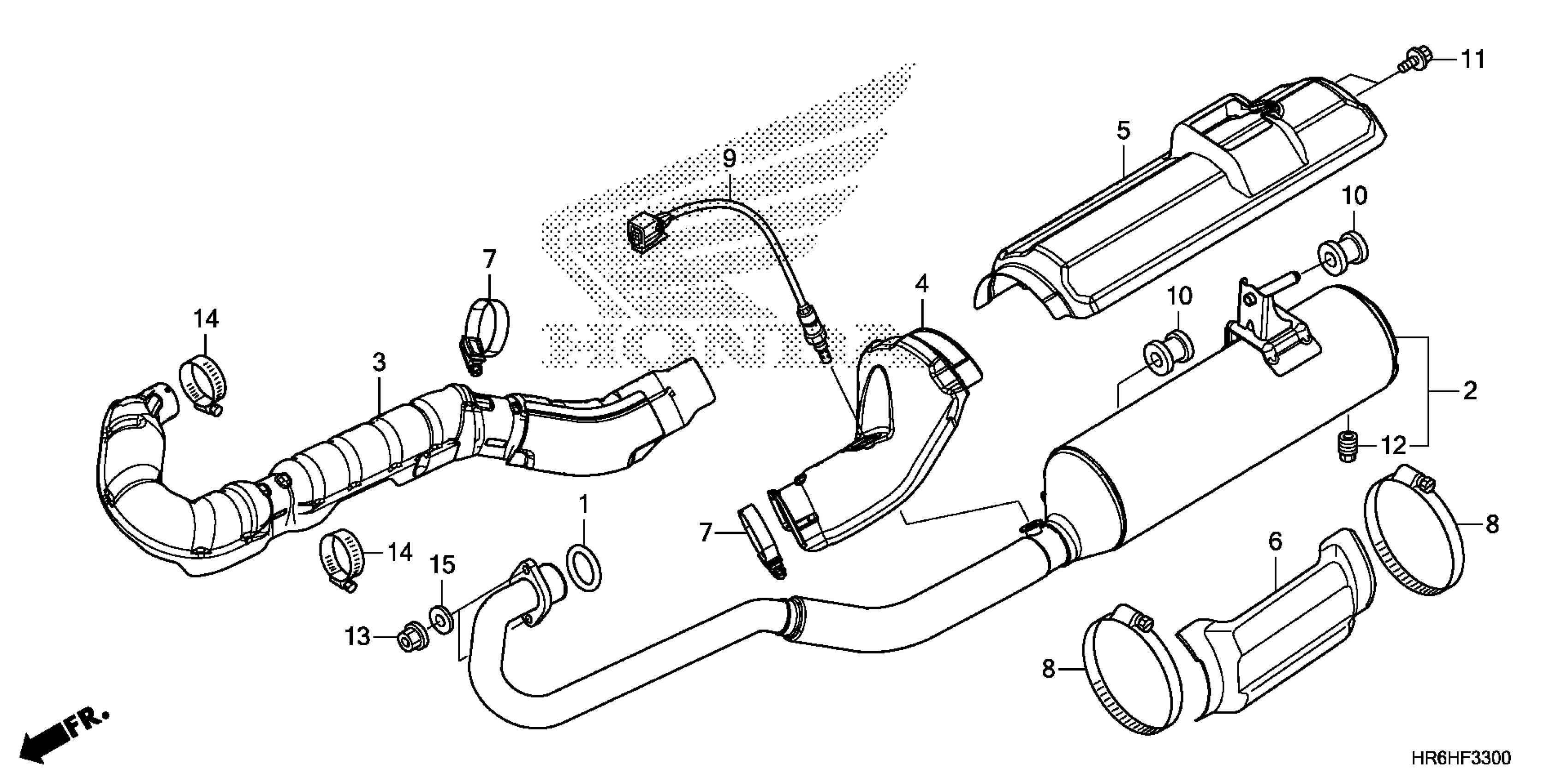

Honda TRX500FA5A (18) TRX500FA5, USA, VIN# 1HFTE46E-J4300001 EXHAUST MUFFLER Diagram

GASKET, EX. PIPE

18291-MV9-000

$4.72

MUFFLER

18300-HR6-A60

$523.80

COVER, EX. PIPE

18321-HR6-A60

$55.79

COVER, FR. MUFFLER

18322-HR6-A60

$30.33

COVER, MUFFLER

18323-HR6-A60

$33.85

COVER, MUFFLER (LOWER)

18324-HR3-A20

$24.18

BAND, HEAT PROTECTOR (57)

18329-HP0-A00

$10.34

BAND, MUFFLER COVER (89-140MM) This part replaces 19084-HP0-A50.

19084-HR6-B00

$4.90

SENSOR, OXYGEN (NGK)

36531-HR3-A21

Unavailable

RUBBER, MUFFLER MOUNTING

50608-HR0-F00

$10.03

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.62

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

BOLT, ARRESTER

90183-HM5-850

$2.57

NUT, FLANGE (8MM)

90301-HM8-000

$2.70

BAND, AIR CLEANER CONNECTING TUBE (38)

90638-HN7-000

$4.25

WASHER, PLAIN (8MM)

94101-08800

$1.93
