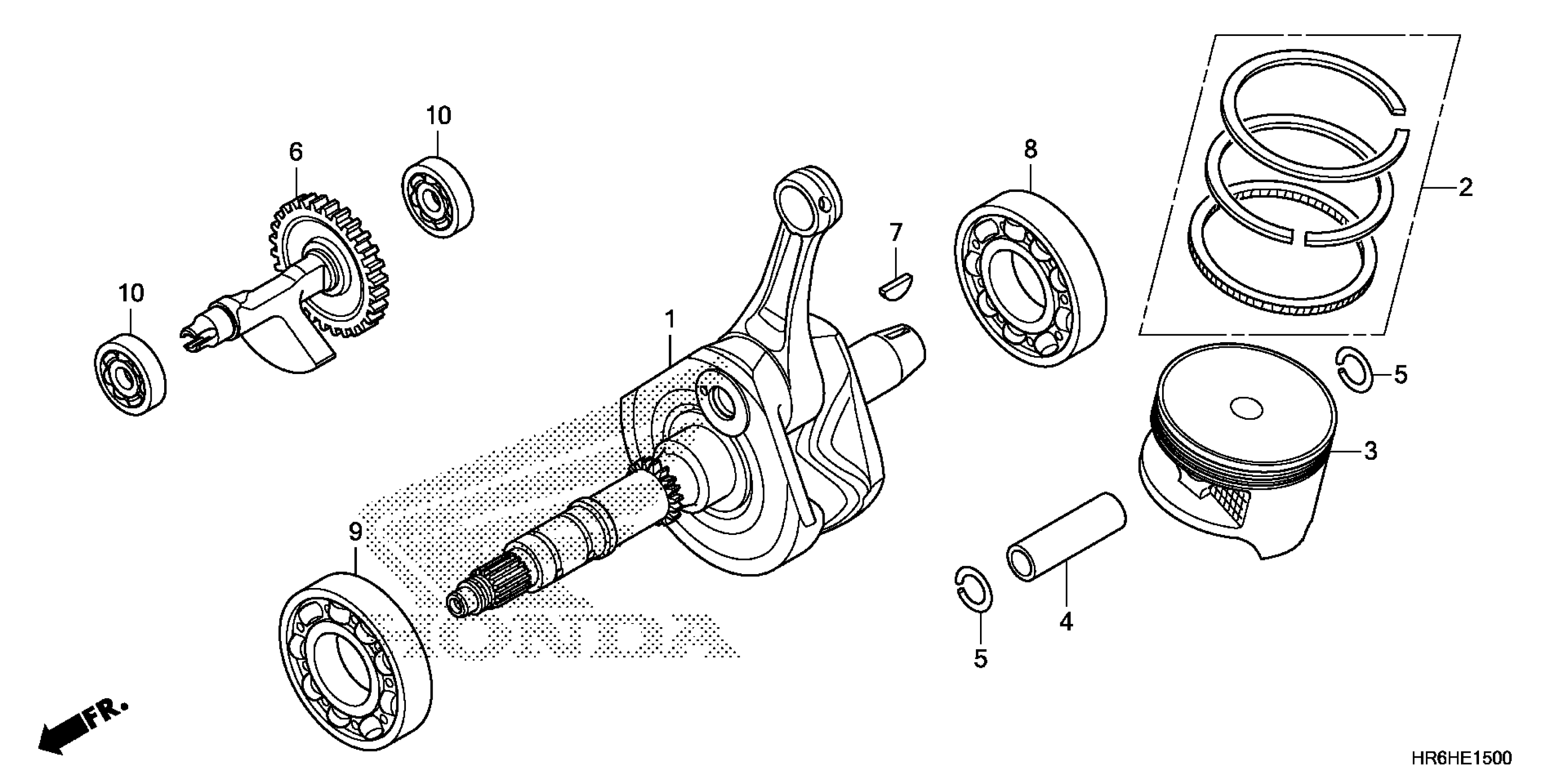

Honda TRX500FA5A (18) TRX500FA5, USA, VIN# 1HFTE46E-J4300001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT This part replaces 13000-HR6-A60.

13000-HR6-MF0

$663.02

2

RING SET, PISTON (STD)

13010-HP0-A01

$55.90

2

RING SET, PISTON (0.25) | (Optional).

13011-HP0-A01

$55.90

2

RING SET, PISTON (0.50) | (Optional).

13012-HP0-A01

$57.57

3

PISTON (STD)

13101-HR0-F00

$94.82

3

PISTON (O.S. 0.25) | (Optional).

13102-HR0-F00

$60.26

3

PISTON (O.S. 0.50) | (Optional).

13103-HR0-F00

$60.21

4

PIN, PISTON

13111-HP5-600

$22.58

5

CLIP, PISTON PIN (19MM)

13112-MAT-000

$2.11

6

SHAFT, BALANCER (32T)

13420-HP5-600

$237.15

7

KEY, SPECIAL WOODRUFF (25X18)

90741-ZE2-000

$3.08

8

BEARING, RADIAL BALL

91001-HM7-008

$56.58

9

BEARING, RADIAL BALL (40X85X18)

91002-HP5-601

$45.81

10

BEARING, RADIAL BALL (6203)

96100-62033-00

$10.00
