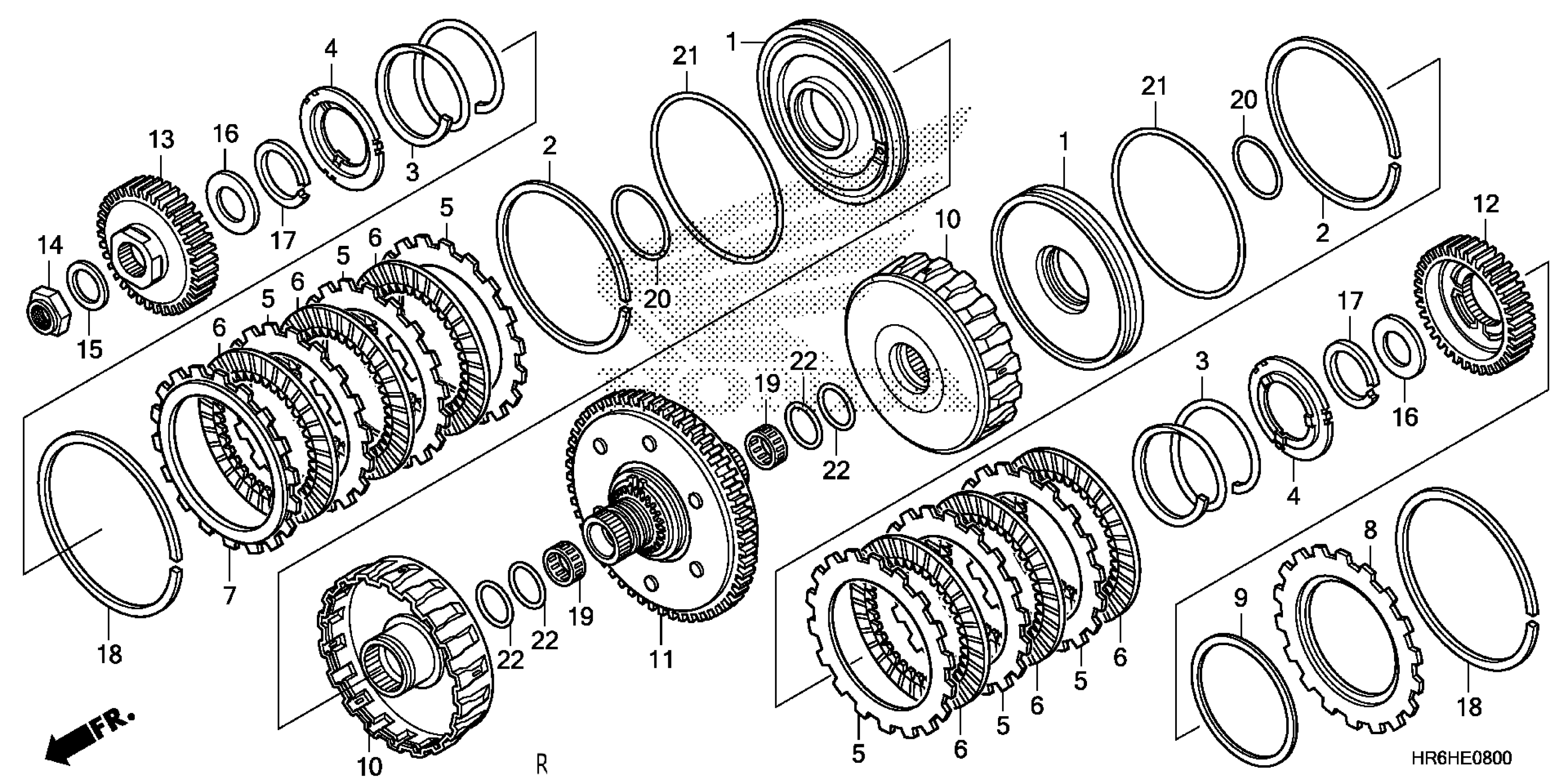

Honda TRX500FA5A (18) TRX500FA5, USA, VIN# 1HFTE46E-J4300001 CLUTCH (DCT) Diagram

#

Description
Price

1

PISTON, CLUTCH

22530-HN8-003

$51.39

2

SPRING, CLUTCH WAVE

22536-HN8-003

$7.12

3

SPRING, CLUTCH RETURN

22541-HN8-003

$10.17

4

SEAT, RETURN SPRING

22542-HP7-A01

$4.71

5

PLATE, CLUTCH

22543-HP7-A01

Unavailable

6

DISK, CLUTCH

22544-HP7-A01

$3.74

7

PLATE A, CLUTCH END (1.9MM)

22551-HP7-A01

$14.78

7

PLATE A, CLUTCH END (2.0MM)

22552-HP7-A01

$15.16

7

PLATE A, CLUTCH END (2.1MM)

22553-HP7-A01

$15.16

7

PLATE A, CLUTCH END (2.2MM)

22554-HP7-A01

$14.78

7

PLATE A, CLUTCH END (2.3MM)

22555-HP7-A01

$6.99

7

PLATE A, CLUTCH END (2.4MM)

22556-HP7-A01

$13.84

7

PLATE A, CLUTCH END (2.5MM)

22557-HP7-A01

$14.78

7

PLATE A, CLUTCH END (2.6MM)

22558-HP7-A01

$14.78

7

PLATE A, CLUTCH END (2.7MM)

22559-HP7-A01

$10.87

8

PLATE B, CLUTCH END (1.9MM)

22561-HP7-A00

$14.54

8

PLATE B, CLUTCH END (2.0MM)

22562-HP7-A00

$14.54

8

PLATE B, CLUTCH END (2.1MM)

22563-HP7-A00

$14.54

8

PLATE B, CLUTCH END (2.2MM)

22564-HP7-A00

$13.31

8

PLATE B, CLUTCH END (2.3MM)

22565-HP7-A00

$13.71

8

PLATE B, CLUTCH END (2.4MM)

22566-HP7-A00

$13.31

8

PLATE B, CLUTCH END (2.5MM)

22567-HP7-A00

$14.54

8

PLATE B, CLUTCH END (2.6MM)

22568-HP7-A00

$14.54

8

PLATE B, CLUTCH END (2.7MM)

22569-HP7-A00

$14.54

9

PLATE A, CLUTCH GUIDE

22571-HP7-A00

$2.99

10

GUIDE, CLUTCH

22651-HP7-A01

$60.87

11

GEAR, PRIMARY DRIVEN (67T)

23100-HP7-A00

$377.01

12

GUIDE, SECOND CLUTCH GEAR

23405-HP7-A00

$118.68

13

GUIDE, FIRST CLUTCH GEAR

23406-HP7-A00

$88.96

14

NUT, LOCK (18MM)

90236-HN5-M00

$4.96

15

WASHER, SPECIAL (18MM)

90432-MR1-000

$4.65

16

WASHER, WAVE THRUST (23.5X42X1)

90452-HP7-A00

$2.96

17

CIRCLIP (OUTER) (42MM)

90603-PL4-000

$2.53

17

CIRCLIP (OUTER) (42MM) This part replaces 90603-P24-A11.

90603-PL4-000

$2.53

18

RING, SNAP (119MM)

90605-PC9-000

$18.60

18

RING, SNAP (119MM) (F.C.C.)

90605-P24-A01

$9.60

19

BEARING, NEEDLE (23X27X13)

91021-HP7-A01

$6.25

20

O-RING (41.8X2.2) (NOK)

91302-PL4-003

$3.97

21

O-RING (104X2.2) (NOK) This part replaces 91303-PC9-003.

91303-PC9-004

$8.49

21

O-RING (104X2.2) (NOK)

91303-PC9-004

$8.49

22

O-RING (31.2X1.9) (ARAI)

91307-PA9-003

$3.52
