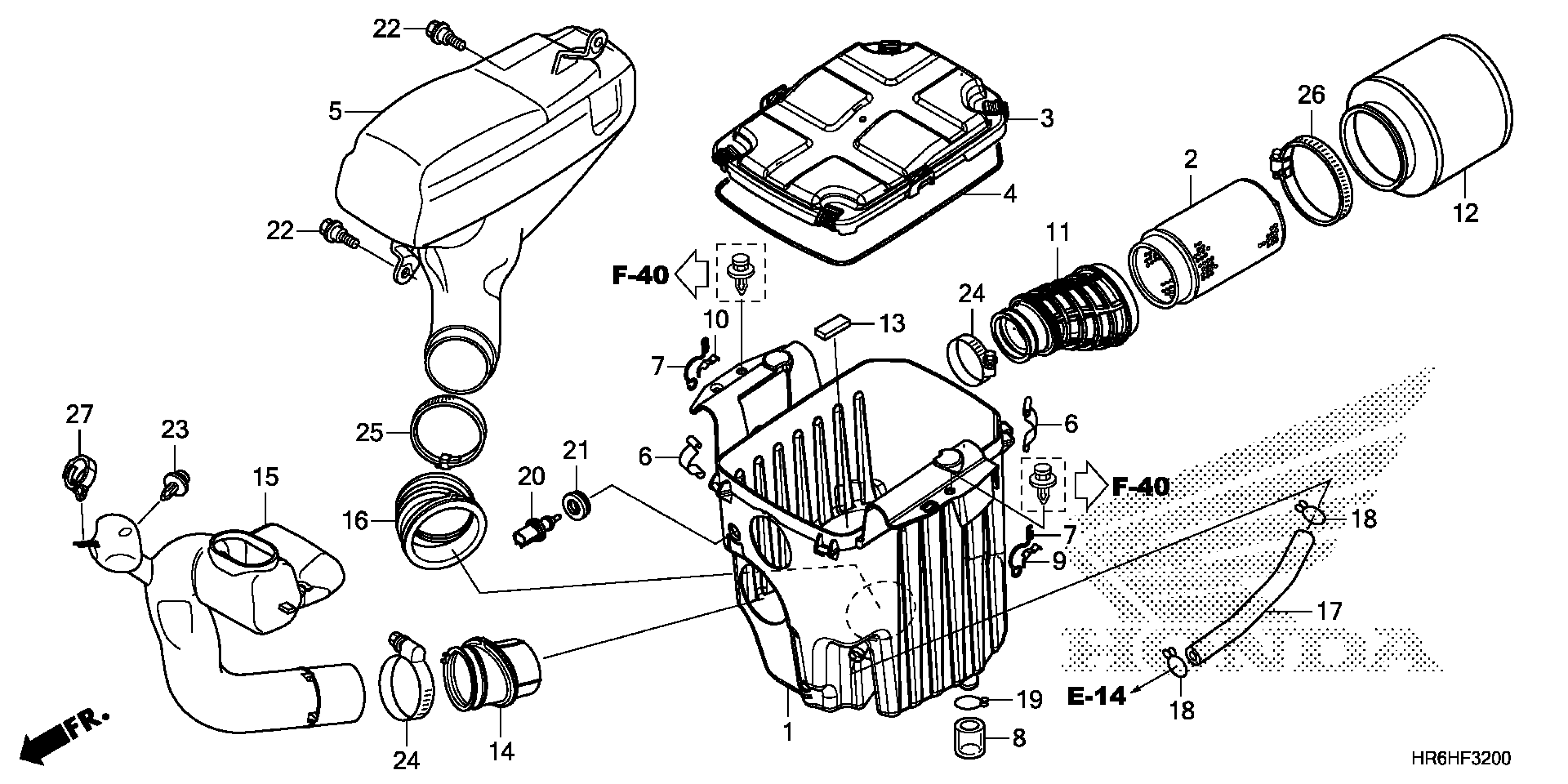

Honda TRX500FA5A (18) TRX500FA5, USA, VIN# 1HFTE46E-J4300001 AIR CLEANER Diagram

#

Description
Price

1

HOUSING, AIR CLEANER

17210-HR6-A60

$36.11

2

BODY, AIR CLEANER

17211-HP0-A00

$21.62

3

LID, AIR CLEANER

17217-HR6-A60

$9.88

4

SEAL, AIR CLEANER COVER

17219-HR6-A60

$14.64

5

CHAMBER, AIR CLEANER SUB

17220-HR6-A60

$32.07

6

SPRING, AIR CLEANER HOUSING LID

17223-HM8-000

$1.68

7

SPRING, AIR CLEANER LID

17223-HN1-A40

Unavailable

8

TUBE, AIR CLEANER DRAIN

17224-HM8-B40

$6.56

9

HOOK, R. LID SPRING (LEFT SIDE)

17228-HN1-000

$2.41

10

HOOK, L. LID SPRING (RIGHT SIDE)

17229-HN1-000

$2.41

11

TUBE, AIR CLEANER CONNECTING

17253-HR6-A60

$25.32

12

ELEMENT, AIR CLEANER

17254-HN1-000

$21.08

13

COVER, DUST

17256-HR3-A20

$0.46

14

TUBE, SNORKEL

17258-HR3-A20

$4.12

15

DUCT, SNORKEL

17259-HR3-A20

$41.04

16

TUBE, SUB-CHAMBER CONNECTING

17262-HN7-000

$24.21

17

TUBE, BREATHER

17366-HR6-A60

$53.29

18

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

19

CLIP, AIR HOSE (21.5)

18532-634-670

$7.58

20

SENSOR ASSY., AIR TEMPERATURE

37880-RE1-Z01

$32.48

21

GROMMET, TA SENSOR

37881-P2A-000

$4.28

22

BOLT, FLANGE (6MM)

90111-162-000

$2.66

23

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

24

BAND, AIR CLEANER CONNECTING TUBE (62)

90662-HN5-M00

$1.35

25

BAND, AIR CONNECTING TUBE (78)

90678-HN2-830

$3.89

26

BAND, AIR CLEANER CONNECTING TUBE (96)

90696-HN2-830

$5.28

27

CLIP, WIRE HARNESS (BLACK)

91558-SD5-003

Unavailable
