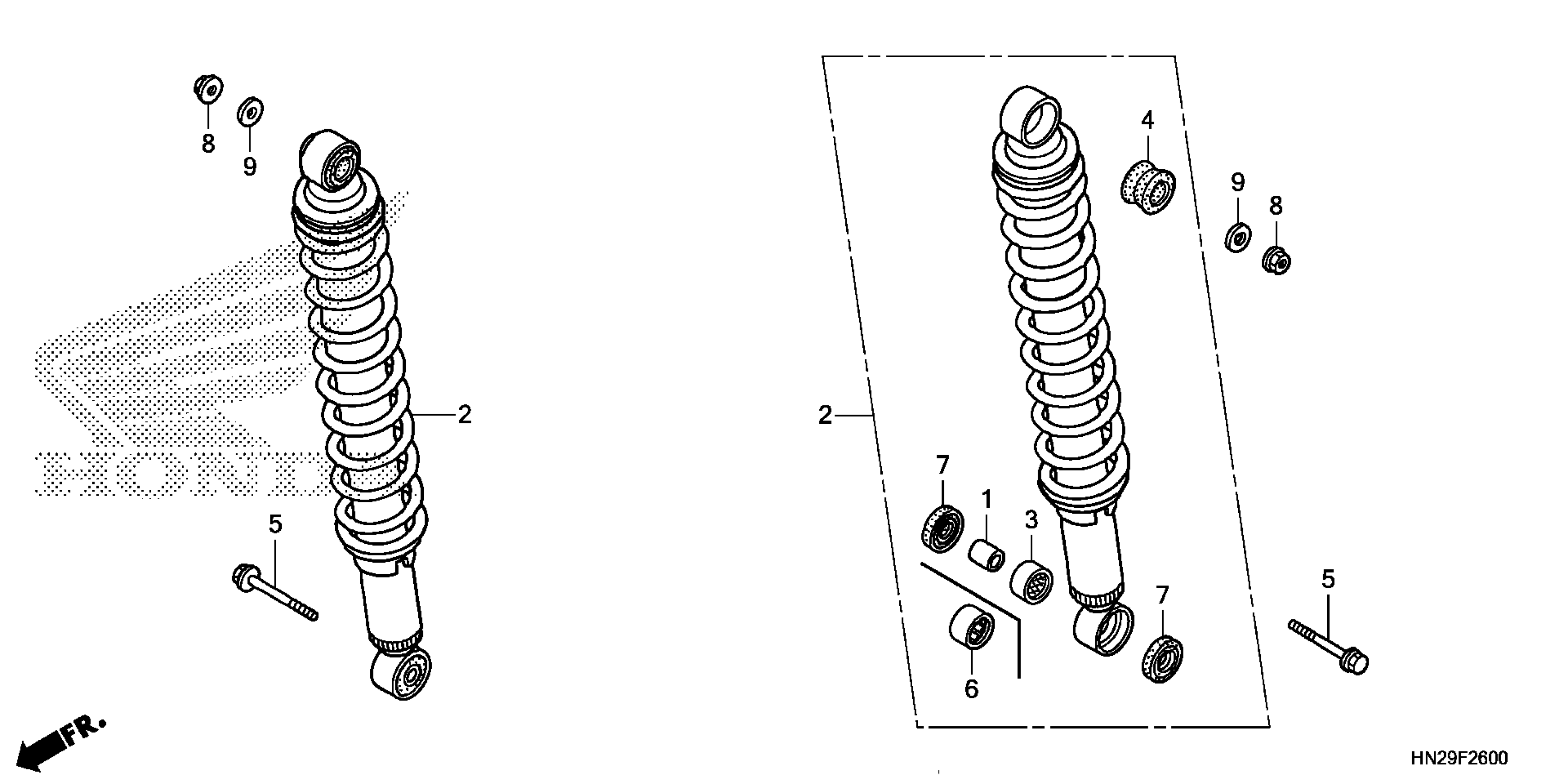

Honda TRX500FA2A (12) FOURTRAX RUBICON, USA, VIN# 1HFTE266-C4200001 TO 1HFTE266-C4299999 REAR SHOCK ABSORBER Diagram

#

Description

Price

1

COLLAR, FR. FORK (LOWER) (RR.)

51486-HN5-670

$10.75

2

CUSHION ASSY., RR.

52400-HN2-B41

$120.33

3

METAL, BUSH

52489-HN5-671

$8.47

4

BUSH, RR. SHOCK ABSORBER

52489-MJ1-004

$5.80

5

BOLT, FLANGE (10X45)

90163-SZ3-000

$2.33

7

DUST SEAL (16X24X4)

91253-MBR-003

$5.66

8

NUT, FLANGE (10MM)

94050-10000

$1.41

9

WASHER, PLAIN (10MM)

94103-10000

$0.61
