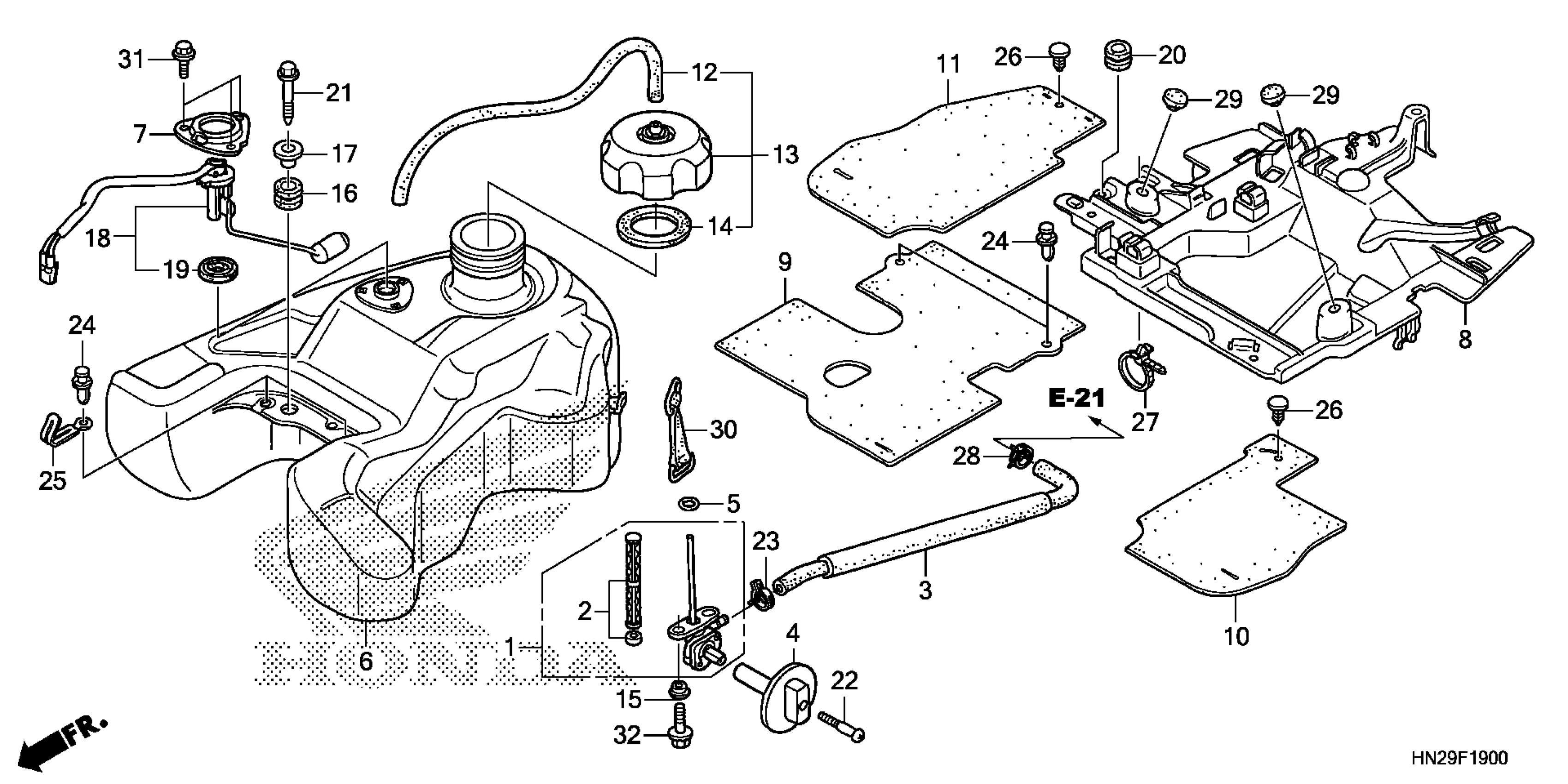

Honda TRX500FA2A (12) FOURTRAX RUBICON, USA, VIN# 1HFTE266-C4200001 TO 1HFTE266-C4299999 FUEL TANK Diagram

PETCOCK ASSY.

16950-HP0-A01

$82.38

SCREEN SET, FUEL STRAINER

16952-HP0-A01

$25.05

TUBE, FUEL

16955-HP0-B80

$11.13

LEVER, PETCOCK *NH1* (BLACK)

16963-HP0-A00ZA

$12.94

O-RING (11.8X3.55)

16997-467-000

$2.11

TANK, FUEL

17510-HP0-B80

Unavailable

PLATE, UNIT SET

17515-GBL-760

$4.93

PROTECTOR, TANK HEAT (LOWER)

17515-HP0-A00

$25.93

RUBBER, RR. SEAL

17516-HP0-A50

$4.50

RUBBER, L. FR. SEAL

17517-HN2-A20

$2.30

RUBBER, R. FR. SEAL

17518-HP0-A00

$2.49

TUBE, FUEL CAP BREATHER

17521-HA2-670

$6.99

CAP ASSY., FUEL TANK

17620-HF7-000

$55.16

GASKET, FUEL CAP

17624-HF7-000

$7.81

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

RUBBER, MUFFLER

18334-KA3-830

$3.89

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.48

FUEL UNIT SET

37080-HP0-A01

$84.61

GASKET, BASE

37801-GA7-700

$5.17

RUBBER, TAILLIGHT MOUNTING

80219-HC4-000

$3.12

BOLT, SPECIAL (6X32)

90101-HM8-000

$4.39

SCREW, PETCOCK LEVER SETTING

90116-KY6-000

$5.05

CLAMP, TUBE (12.0)

90651-HN6-A51

$2.07

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

CLIP, WIRE HARNESS

91405-MG1-000

$2.31

CLIP, WASHER MOUTH

91504-SD5-901

$4.39

CLIP, HARNESS BAND (151.5MM) (NATURAL)

91540-S30-003

$2.90

CLAMP, TUBE (D13)

95002-41300-05

$1.49

RUBBER C, STAND STOPPER

95011-63000

$3.90

BAND A, BATTERY

95012-11001

$2.92

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
