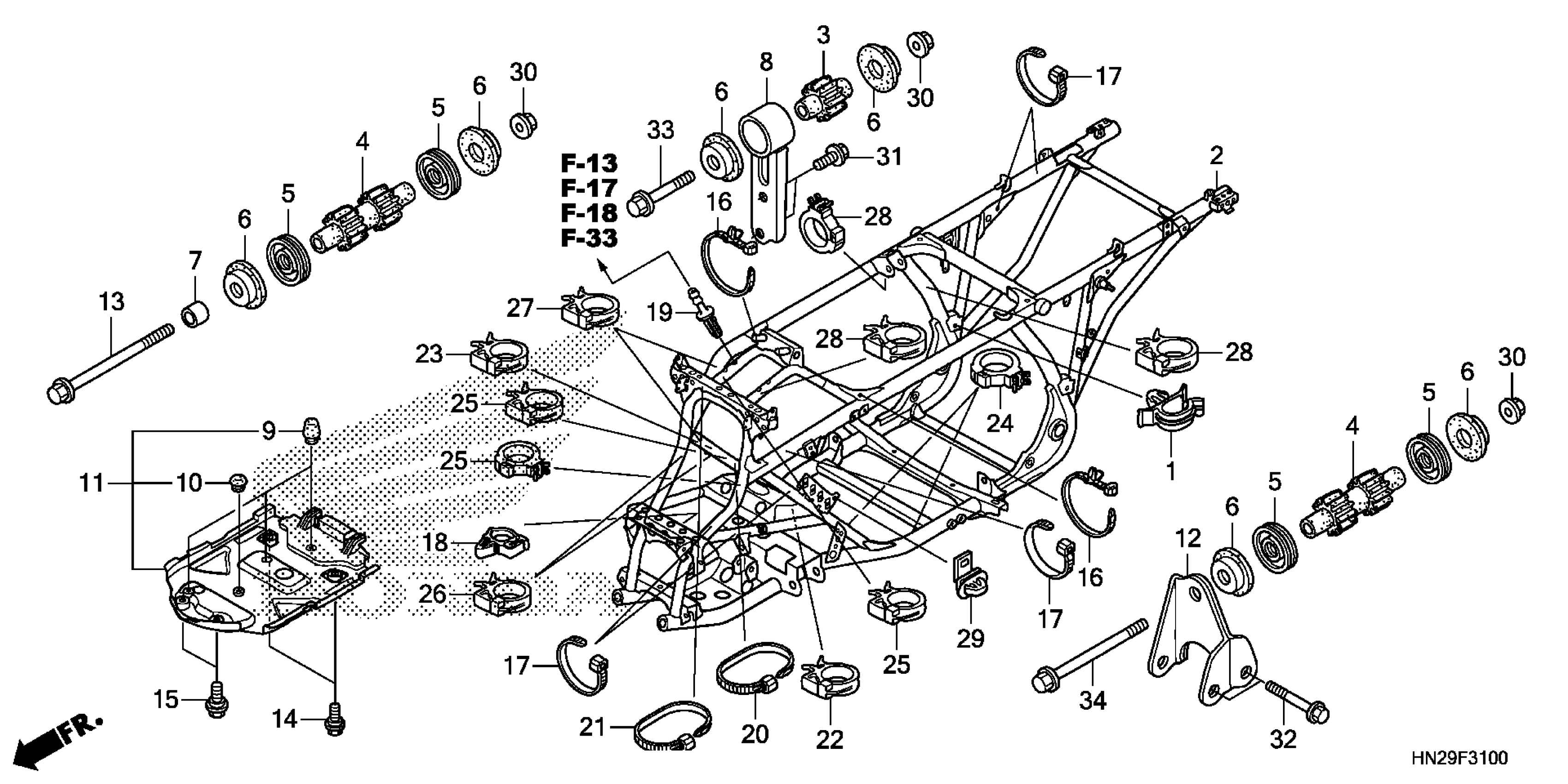

Honda TRX500FA2A (12) FOURTRAX RUBICON, USA, VIN# 1HFTE266-C4200001 TO 1HFTE266-C4299999 FRAME Diagram

#

Description
Price

1

CLIP, WIRE HARNESS

32161-393-003

$3.07

2

FRAME This part replaces 50100-HN2-930.

50100-HN2-B40

$5.00

3

RUBBER, ENGINE HEAD MOUNTING

50201-HN2-000

$13.75

4

RUBBER, ENGINE MOUNTING (LOWER)

50202-HP0-A50

$25.21

5

DUST SEAL, ENGINE MOUNTING

50203-HM7-003

$20.39

6

RUBBER C, MOUNTING

50204-HM7-003

$21.27

7

COLLAR, ENGINE HANGER

50205-HM8-000

$8.16

8

PLATE, HEAD HANGER

50351-HN2-000

$120.82

9

RUBBER A, STOPPER

50352-HM5-730

$22.38

10

RUBBER B, STOPPER

50354-HM5-730

$14.60

11

GUARD ASSY., ENGINE

50360-HN2-B70

$127.48

12

HANGER, ENGINE (LOWER)

50363-HN2-000

$78.11

13

BOLT, ENGINE HANGER (10X148)

90103-147-000

$12.74

14

BOLT, FLANGE (6MM)

90113-GF0-000

$4.24

15

BOLT, FLANGE (8X18)

90186-GBC-000

$1.49

16

BAND, WIRE HARNESS (150MM) (NATURAL)

90649-SC2-003

$5.81

17

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

18

CLAMP, HARNESS

90652-HC4-003

$5.95

19

JOINT, BREATHER TUBE

90652-HF7-003

$9.52

20

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

21

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

22

CLIP, CABLE (10MM)

90690-GHB-641

$2.18

24

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

25

CLIP, CABLE (20MM)

90690-GHB-661

$2.08

27

CLIP, CABLE (25MM)

90690-GHB-671

$2.18

28

CLIP, CABLE (30MM)

90690-GHB-681

$2.92

29

CLIP, CONNECTOR (BLACK)

91565-SEL-003

$3.67

30

NUT, FLANGE (10MM)

94050-10000

$1.59

31

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

32

BOLT, FLANGE (8X60)

95701-08060-00

$1.49

33

BOLT, FLANGE (10X60)

95701-10060-00

$2.03

34

BOLT, FLANGE (10X120)

95801-10120-00

$4.73
