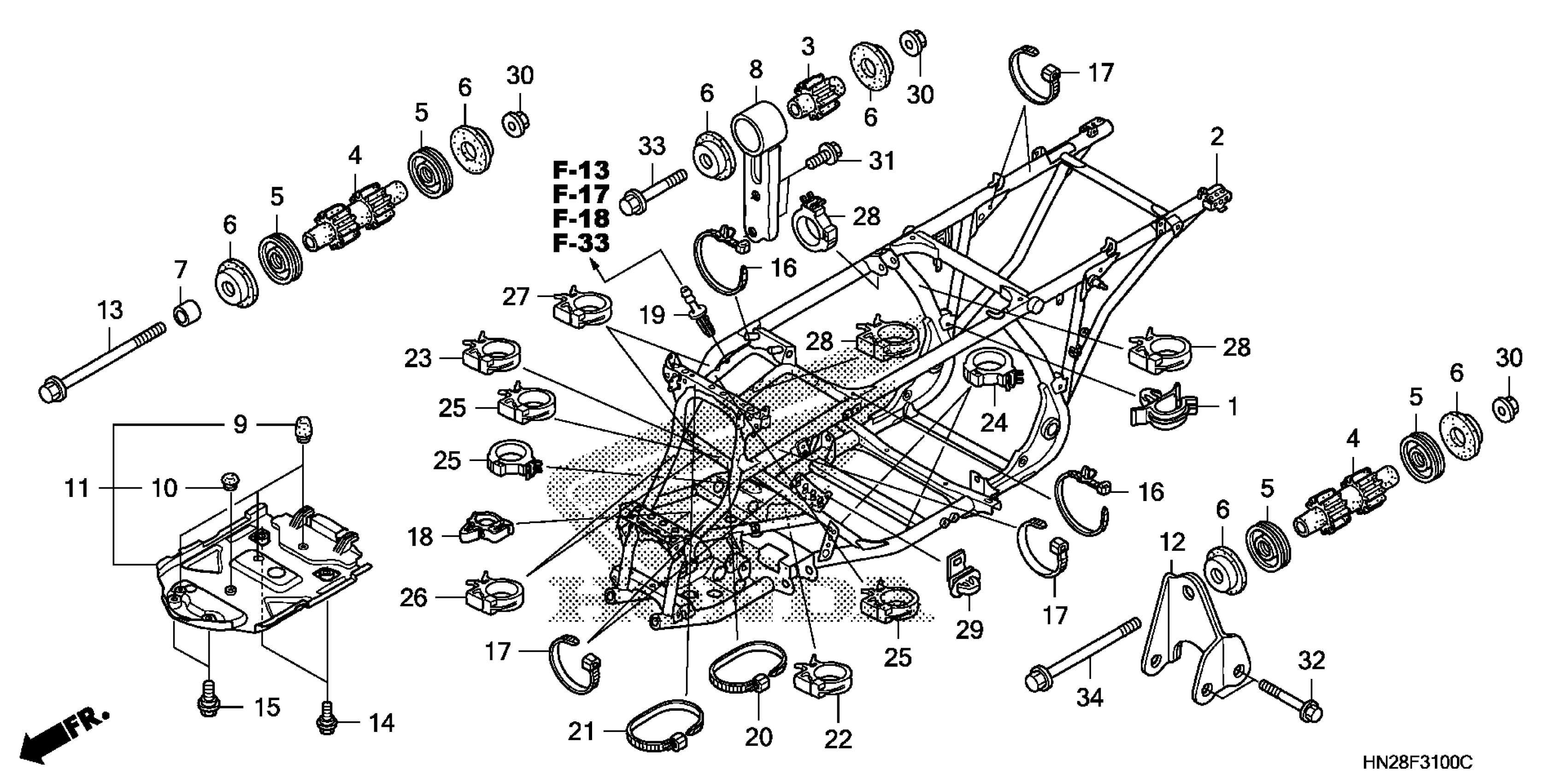

Honda TRX500FA2A (09) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE266-94800001 TO 1HFTE266-94899999 FRAME Diagram

#

Description
Price

1

CLIP, WIRE HARNESS

32161-393-003

$2.84

2

FRAME

50100-HN2-B40

$4,998.99

3

RUBBER, ENGINE HEAD MOUNTING

50201-HN2-000

$12.64

4

RUBBER, ENGINE MOUNTING (LOWER)

50202-HP0-A50

$23.14

5

DUST SEAL, ENGINE MOUNTING

50203-HM7-003

Unavailable

6

RUBBER C, MOUNTING

50204-HM7-003

$19.53

7

COLLAR, ENGINE HANGER

50205-HM8-000

$7.79

8

PLATE, HEAD HANGER

50351-HN2-000

$108.38

9

RUBBER A, STOPPER

50352-HM5-730

$19.95

10

RUBBER B, STOPPER

50354-HM5-730

$13.02

11

GUARD ASSY., ENGINE

50360-HN2-B70

$113.98

12

HANGER, ENGINE (LOWER)

50363-HN2-000

$70.07

13

BOLT, ENGINE HANGER (10X148)

90103-147-000

$11.35

14

BOLT, FLANGE (6MM)

90113-GF0-000

$4.04

15

BOLT, FLANGE (8X18)

90186-GBC-000

$1.03

16

BAND, WIRE HARNESS (150MM) (NATURAL)

90649-SC2-003

$6.33

17

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.56

18

CLAMP, HARNESS

90652-HC4-003

$5.68

19

JOINT, BREATHER TUBE

90652-HF7-003

$8.76

20

BAND, WIRE (BLACK)

90652-KT1-771

$4.28

21

BAND, WIRE (BLACK)

90652-KT1-771

$4.28

22

CLIP, CABLE (10MM) CLIP, CABLE (8MM)

90690-GHB-641

$2.01

24

CLIP, CABLE (15MM)

90690-GHB-651

$2.01

25

CLIP, CABLE (20MM)

90690-GHB-661

$2.01

27

CLIP, CABLE (25MM)

90690-GHB-671

$2.01

28

CLIP, CABLE (30MM)

90690-GHB-681

$2.80

29

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.52

30

NUT, FLANGE (10MM)

94050-10000

$1.66

31

BOLT, FLANGE (8X20)

95701-08020-00

$1.87

32

BOLT, FLANGE (8X60)

95701-08060-00

$1.40

33

BOLT, FLANGE (10X60)

95701-10060-00

$1.82

34

BOLT, FLANGE (10X120)

95801-10120-00

$4.88
