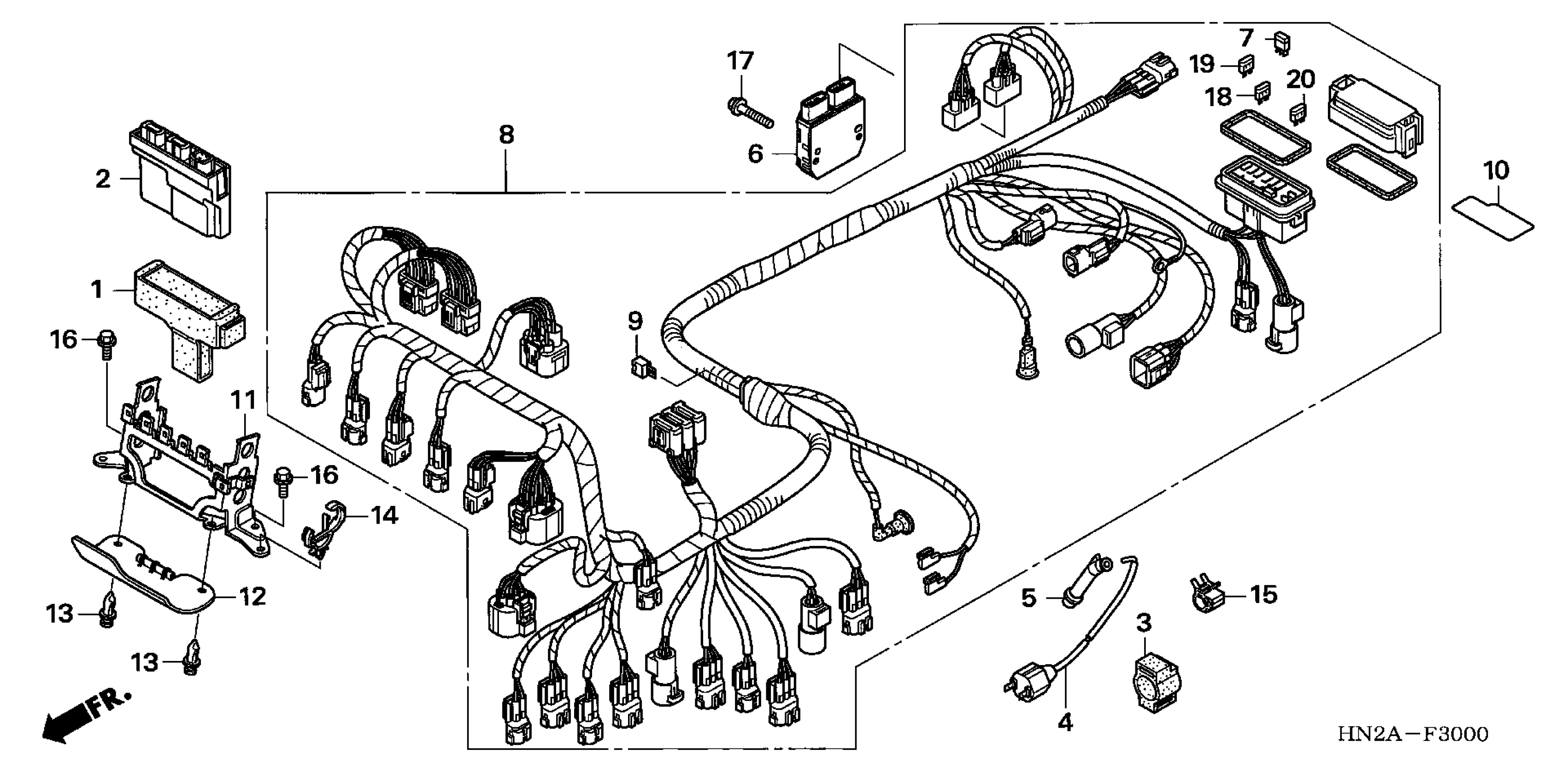

Honda TRX500FA2A (08) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE266-84700001 WIRE HARNESS Diagram

SUSPENSION, CONTROL UNIT

30401-HN7-000

$25.51

CONTROL UNIT, C.D.I. & HONDA MATIC

30410-HN2-A21

$331.36

SUSPENSION, IGNITION COIL

30506-KV3-771

$11.89

COIL, IGNITION

30510-HN2-A20

$37.23

CAP ASSY., NOISE SUPPRESSOR

30700-HN2-003

$23.25

RECTIFIER ASSY., REGULATOR

31600-HP0-A01

$127.69

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS (CONTACT MC TECHLINE (800)- 421-1900 OPTION#9 TO ORDER)

32100-HN2-A60

$1,239.75

CONNECTOR, DIODE (2P) (3A)

32146-S84-003

$15.33

STAY, ENGINE CONTROL UNIT

50269-HP0-A00

$77.93

GUARD, ENGINE CONTROL UNIT HEAT

50271-HP0-A00

$28.97

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

CLIP, HARNESS

90684-ZA0-601

$2.93

CLIP, CABLE (10MM)

90690-GHB-641

$2.18

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (15A)

98200-41500

$1.49

FUSE, MINI (30A)

98200-43000

$1.67
