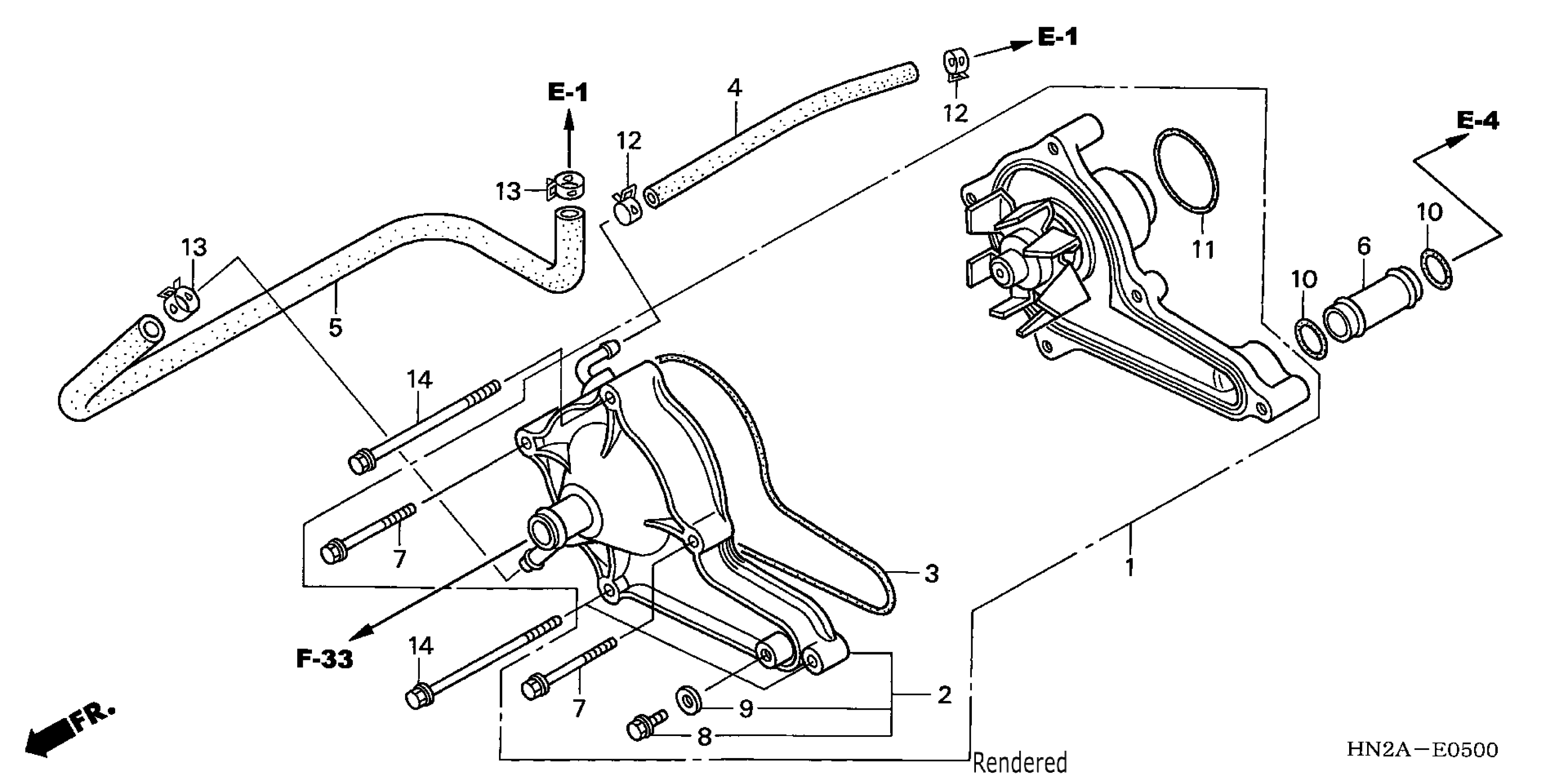

Honda TRX500FA2A (08) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE266-84700001 WATER PUMP Diagram

WATER PUMP

19200-HN2-010

$242.25

COVER, WATER PUMP

19220-HN2-000

$81.72

GASKET, WATER PUMP COVER

19226-HN2-000

$12.49

HOSE, WATER PUMP

19322-HN2-000

$5.72

HOSE, WATER BYPASS

19323-HN2-A20

$13.57

JOINT, WATER

19523-HN2-000

$6.37

BOLT, FLANGE (6X30) (CT200)

90003-HN2-000

$1.19

BOLT, FLANGE (6X12) (CT200)

90013-883-000

$1.43

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

O-RING (18.5X2.2)

91303-KV3-780

$1.81

O-RING (37X2.4) (ARAI)

91305-KT7-003

$2.68

CLAMP, TUBE (D10)

95002-41000-08

$2.16

CLAMP, TUBE (D12.5)

95002-41250-08

$2.31

BOLT, FLANGE (6X55)

95701-06055-00

$2.59
