Description

Price

2

SHAFT ASSY., PROPELLER

40200-HP0-A00

$59.12

3

JOINT, YOKE

40210-HN7-010

$54.06

4

SPRING, PROPELLER SHAFT

40215-HN0-671

$2.87

5

HITCH, TRAILER

50810-HP0-A00

$36.01

6

SWINGARM ASSY., RR.

52100-HP0-A50

Unavailable

7

BOOT, JOINT

52101-HM7-000

$12.56

9

PIPE, R. HOUSING

52210-HP0-A00

$528.75

10

PIPE ASSY., L. HOUSING

52300-HN2-000

$777.84

11

BOLT A, PIVOT

90121-HM5-930

$8.42

12

BOLT B, PIVOT

90122-HM5-930

$9.67

13

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.86

14

CAP, LOCK NUT

90312-HM5-670

$10.44

15

NUT, SWINGARM PIVOT LOCK

90355-469-000

$16.10

16

BEARING, RADIAL BALL (32X58X13UU)

91055-HN5-681

$17.64

17

OIL SEAL (42X58X10) (ARAI)

91255-HA0-681

$18.68

18

SEAL A, RUBBER

91302-HM7-003

$7.54

19

O-RING (75X3.2) (NOK)

91320-HM7-702

$2.74

20

BAND, AIR CLEANER CONNECTING TUBE (74)

95018-74250

$6.48

21

BAND, AIR CLEANER CONNECTING TUBE (90)

95018-90250

$5.21

22

BOLT, FLANGE (10X20)

95701-10020-00

$2.17

23

BOLT, FLANGE (10X60)

95701-10060-00

$1.82

24

HOLDER, SWINGARM GREASE

52112-MA1-300

$6.72

25

BEARING, ANGULAR (7203)

91066-HC4-004

$31.29

26

DUST SEAL (26X40X5) (NOK)

91268-HN0-A01

$5.44

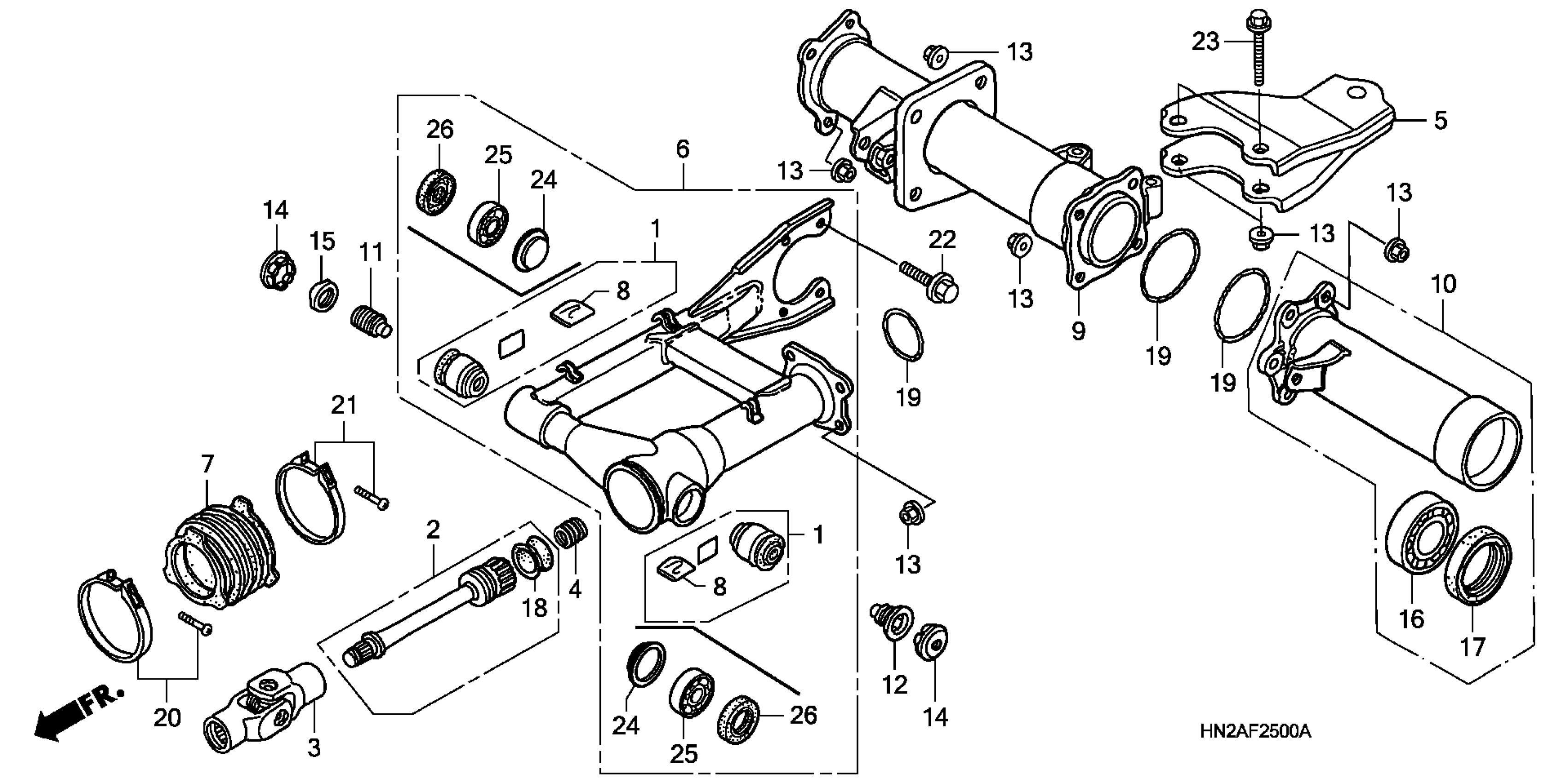

Honda TRX500FA2A (08) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE266-84700001 SWINGARM Diagram
