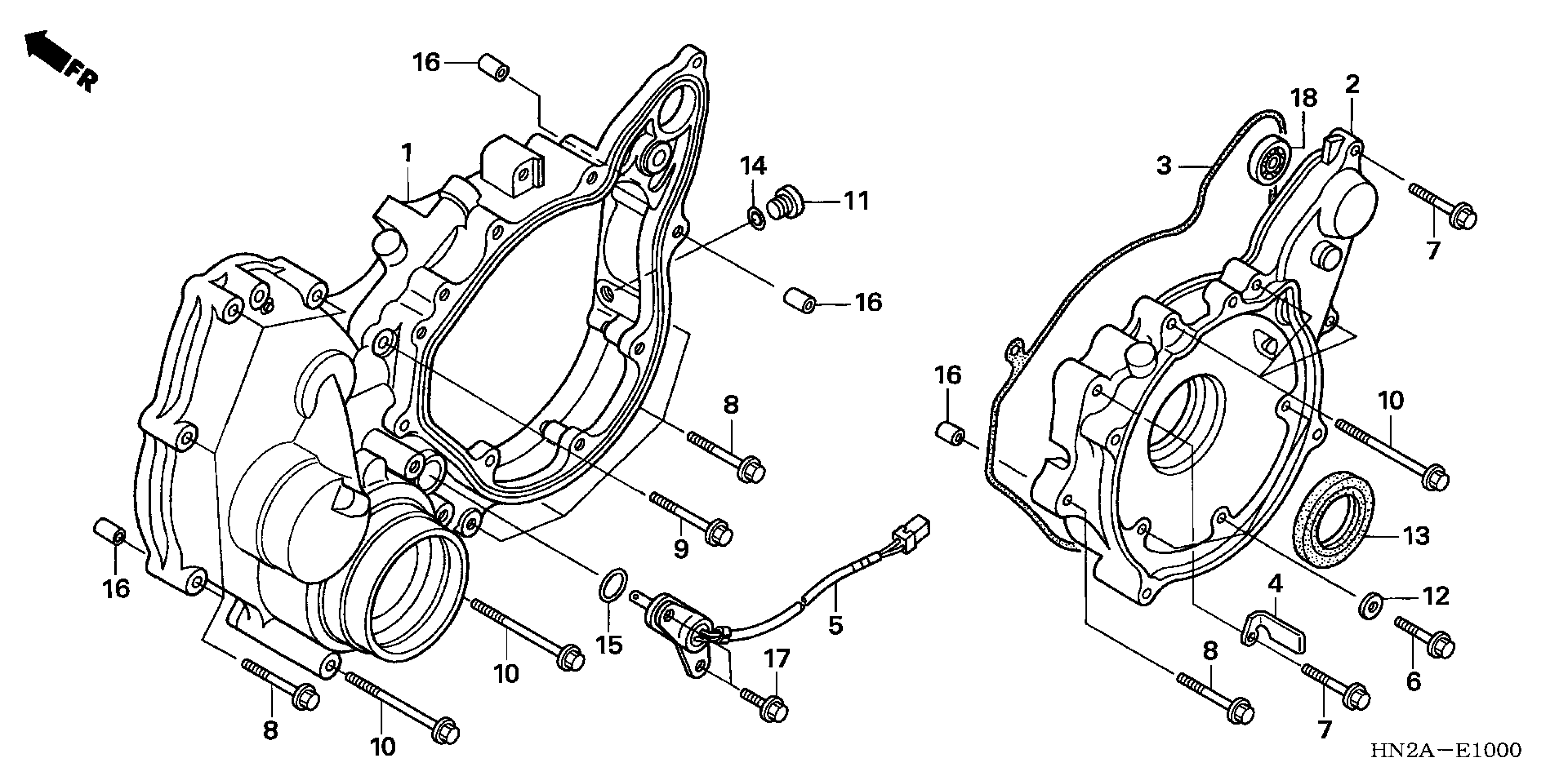

Honda TRX500FA2A (08) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE266-84700001 REAR CRANKCASE COVER Diagram

COVER, RR. CRANKCASE

11340-HN2-A20

$237.10

COVER, ALTERNATOR

11350-HN2-A20

$212.00

GASKET, ALTERNATOR COVER

11396-HN2-000

$12.55

CLAMP, OIL PRESSURE WIRE

32972-MS8-000

$9.30

SWITCH ASSY., CHANGE

35759-HN2-A21

$36.15

BOLT, FLANGE (6X25) (NSHF)

90004-GHB-670

$2.89

BOLT, FLANGE (6X32) (NSHF)

90004-GHB-690

$3.85

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$4.07

BOLT, FLANGE (6X50) (NSHF)

90004-GHB-730

$4.25

BOLT, FLANGE (6X85) (NSHF)

90004-GHB-800

$2.72

CAP (14MM)

90084-KY2-000

$15.97

WASHER, SEALING (6MM)

90441-706-000

$1.49

OIL SEAL (32X52X8) This part replaces 91201-HM7-003.

91201-HN0-671

$8.68

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (17.0X2.5) (ARAI)

91333-KE5-003

$2.13

O-RING (17.0X2.5) (ARAI) This part replaces 91333-567-010.

91333-KE5-003

$2.13

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
