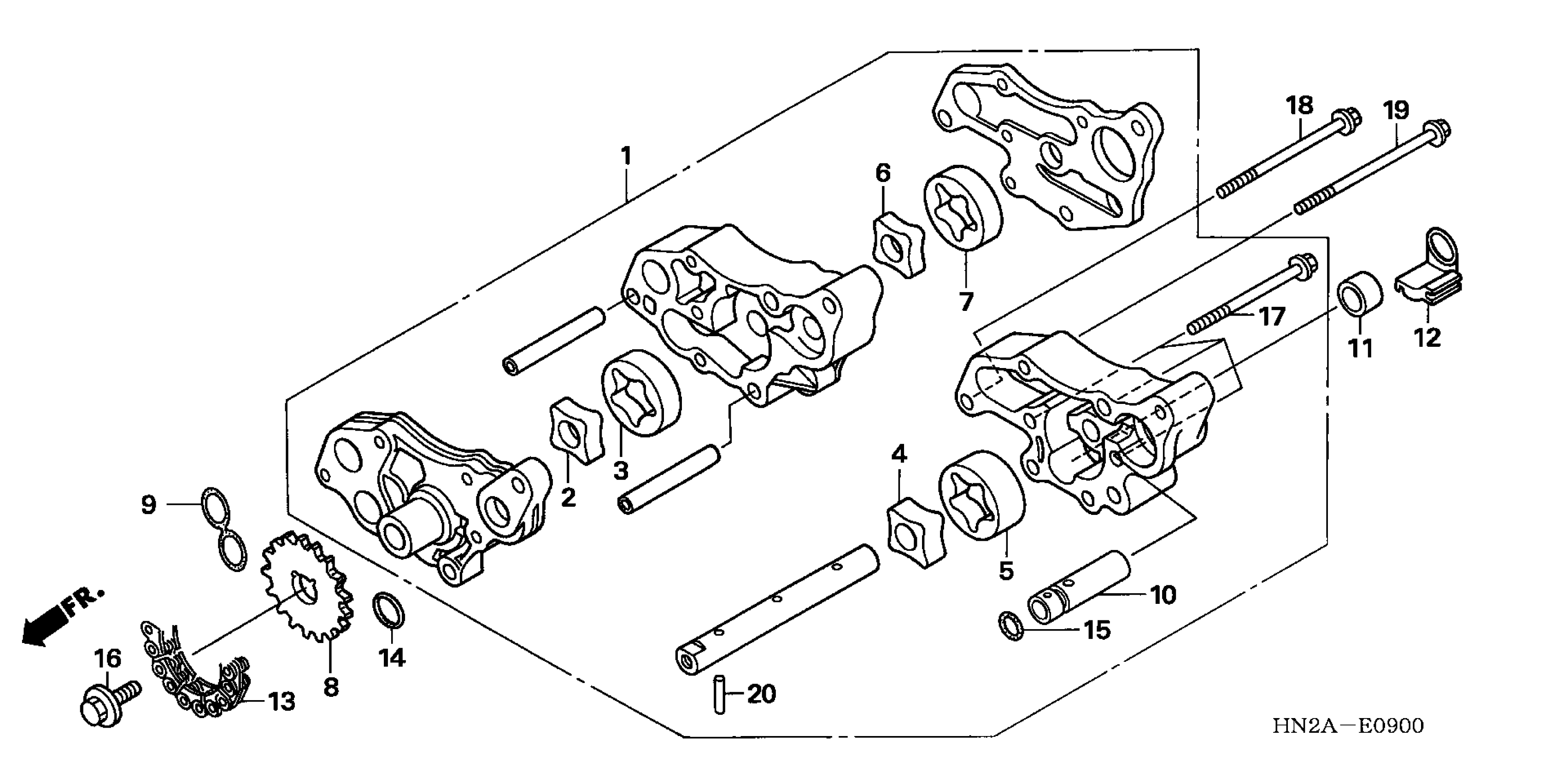

Honda TRX500FA2A (08) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE266-84700001 OIL PUMP Diagram

PUMP ASSY., OIL

15100-HN2-010

$257.11

ROTOR A, OIL PUMP (INNER)

15122-HN2-003

$17.87

ROTOR A, OIL PUMP (OUTER)

15123-HN2-003

$19.55

ROTOR SET B This part replaces 15124-HN2-003.

15022-HR6-B01

$48.13

ROTOR SET B This part replaces 15125-HN2-003.

15022-HR6-B01

$48.13

ROTOR B, OIL PUMP (INNER)

15126-HN2-003

$18.12

ROTOR B, OIL PUMP (OUTER)

15127-HN2-003

$24.74

SPROCKET, OIL PUMP DRIVEN (19T)

15133-HN2-000

$45.63

SEAL, RUBBER

15152-HN2-000

$4.51

VALVE ASSY., RELIEF

15220-HN8-000

$24.20

COLLAR, SPECIAL

15234-HN2-000

$2.48

RUBBER, OIL PUMP SEAL

15236-HN2-000

$7.19

CHAIN, OIL PUMP DRIVE (50L) (DAIDO)

15401-HN2-003

$20.59

O-RING (16X2.1) (NOK)

91309-PX4-003

$2.80

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.42

O-RING (14.8X2.2)

91313-MG7-004

$3.42

BOLT, FLANGE (6X14)

95701-06014-00

$0.91

BOLT, FLANGE (6X75)

95701-06075-00

$2.09

BOLT, FLANGE (6X80)

95701-06080-08

$2.30

BOLT, FLANGE (6X90)

95701-06090-08

$1.46

ROLLER (4X15.8)

96220-40158

$0.41
