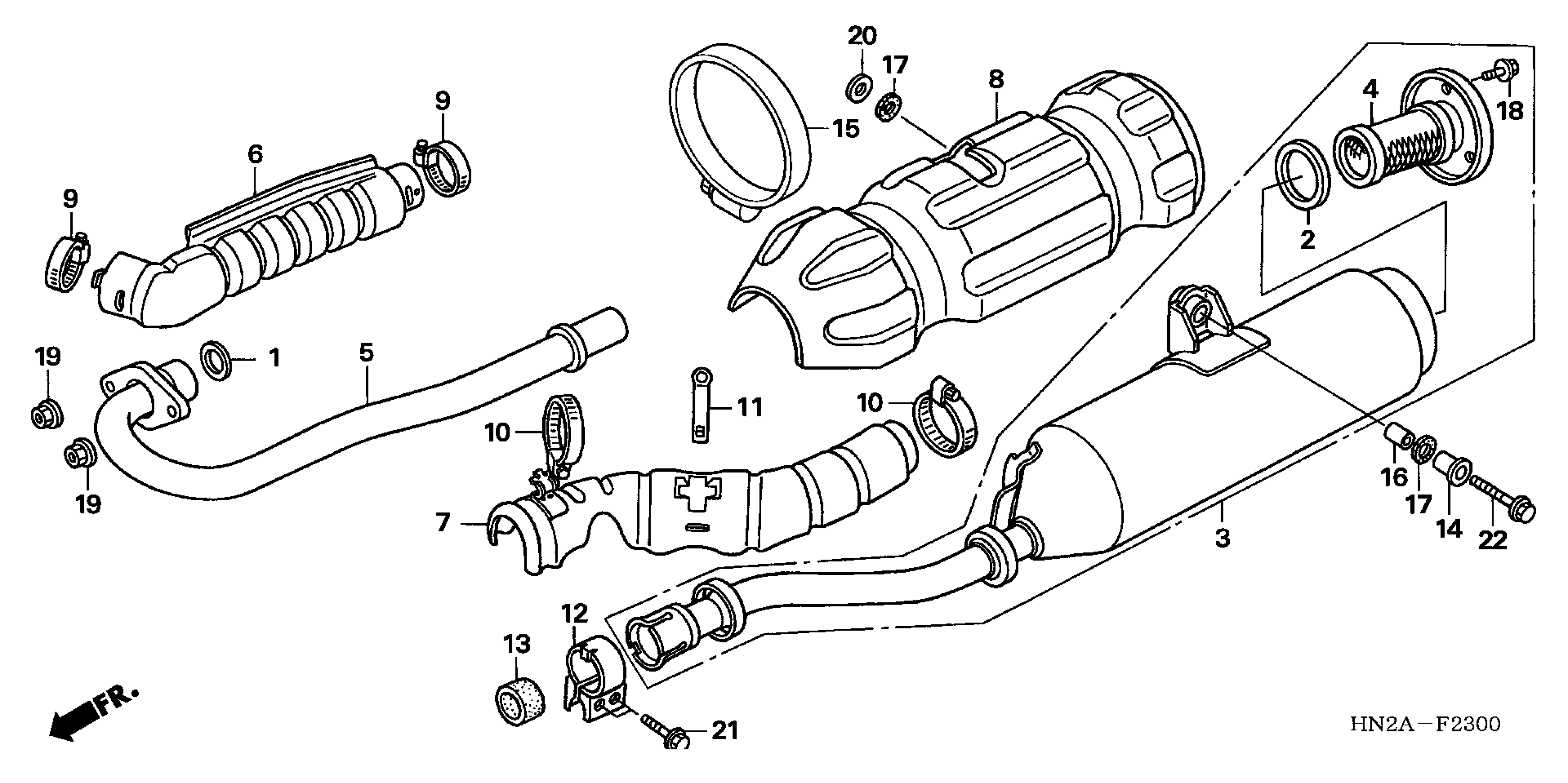

Honda TRX500FA2A (08) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE266-84700001 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-MN4-920

$4.94

2

GASKET, MUFFLER

18292-MV4-000

$7.79

3

MUFFLER ASSY.

18300-HN2-A60

Unavailable

4

ARRESTER, SPARK

18317-HN2-A60

Unavailable

5

PIPE, EX.

18320-HN2-A20

Unavailable

5

PIPE, EX. This part replaces 18320-HN2-A60.

18320-HN2-A20

Unavailable

6

COVER, EX. PIPE

18321-HN2-A20

Unavailable

7

PROTECTOR, HEAT

18322-HN2-A20

$43.96

8

COVER, MUFFLER

18323-HP0-A00

$118.42

9

BAND, EX. PIPE COVER

18325-HN2-000

$9.86

10

BAND, HEAT PROTECTOR

18326-HN2-000

Unavailable

11

BAND, HEAT PROTECTOR (57)

18329-HP0-A00

$9.01

12

BAND, MUFFLER

18373-HA7-671

$18.68

13

GASKET, MUFFLER

18391-HM7-A00

$11.03

14

COLLAR, MUFFLER MOUNTING

18422-HN2-000

$34.51

15

BAND, MUFFLER COVER (89-140MM) This part replaces 19084-HP0-A50.

19084-HR6-B00

$4.43

16

RUBBER, MUFFLER MOUNTING

50608-HP0-A00

$11.69

17

RUBBER, MUFFLER MOUNTING SIDE

50609-HN2-000

Unavailable

18

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.48

19

NUT, FLANGE (8MM)

90301-HM8-000

$2.46

20

WASHER, PLAIN (10MM)

90501-HN1-000

$2.87

21

BOLT, FLANGE (8X35)

95701-08035-08

$1.28

22

BOLT, FLANGE (10X50)

95701-10050-08

$2.29
