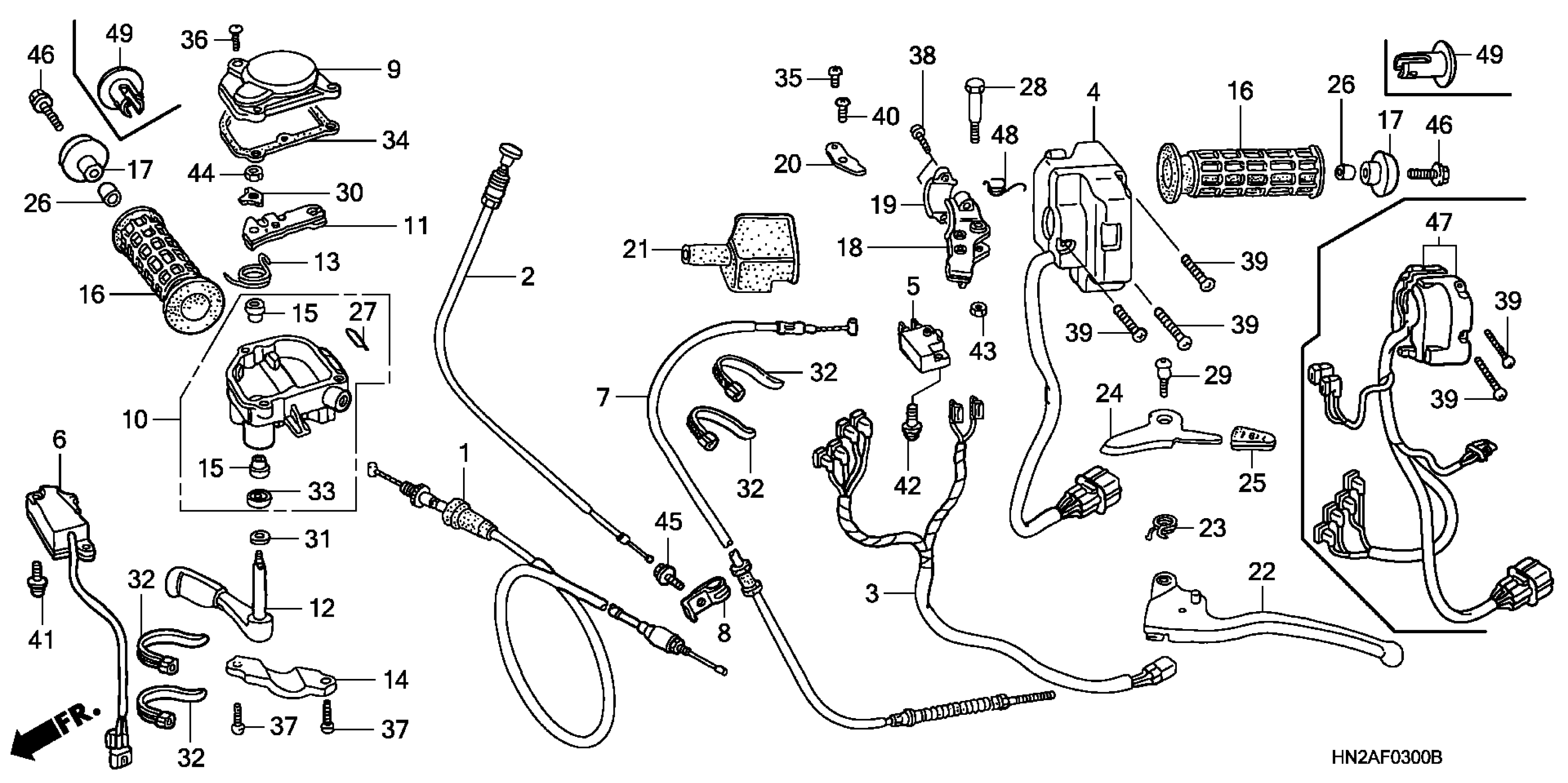

Honda TRX500FA2A (08) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE266-84700001 HANDLE LEVERS + SWITCHES + CABLES Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-HP0-A00

$35.39

2

CABLE, CHOKE

17950-HP0-A00

$9.48

5

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

$18.57

5

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$18.57

6

SWITCH ASSY., SELECT (2WD/4WD)

35400-HP0-A71

$24.86

7

CABLE, HAND BRAKE

43460-HP0-A00

$17.99

8

CLAMP, BRAKE CABLE

50352-HN2-000

$1.49

9

COVER, THROTTLE CASE

53141-HP1-000

$36.58

10

CASE ASSY., THROTTLE LEVER

53143-HN0-305

$47.56

11

ARM, THROTTLE

53144-HA0-010

$7.72

12

LEVER, THROTTLE This part replaces 53145-HA0-305.

53145-HA0-770

$24.05

12

LEVER, THROTTLE

53145-HA0-770

$24.05

13

SPRING, THROTTLE RETURN

53146-HM8-000

$3.10

14

HOLDER, THROTTLE CASE

53147-HN0-670

$14.30

15

BUSH, THROTTLE PIVOT

53148-HA0-000

$8.00

16

GRIP, HANDLE

53165-HP5-600

$3.83

18

BRACKET, BRAKE LEVER

53172-HN8-000

$28.76

19

HOLDER, LEVER BRACKET

53173-376-000

$10.95

20

STAY, PARKING BRAKE STOPPER

53174-HN8-000

$5.49

21

COVER, L. HANDLE LEVER

53177-HN8-000

$3.41

22

LEVER, L. HANDLEBAR

53178-HN8-010

$19.86

23

SPRING, PARKING BRAKE LEVER

53191-HN8-000

$2.56

24

LEVER, PARKING BRAKE LOCK

53192-HN8-000

$7.63

25

CAP, PARKING LEVER

53193-HA0-770

$6.16

27

MARK, SELECT (2WD/4WD)

87516-HN0-670

$15.34

28

BOLT, HANDLE LEVER PIVOT

90114-HN8-000

$3.80

29

SCREW, PARKING LEVER PIVOT

90115-HA6-000

$4.08

30

WASHER, LOCK (6MM)

90501-HA0-000

$2.92

31

WASHER (9X20)

90504-HA0-000

$2.28

32

BAND, WIRE HARNESS

90651-MA6-720

$3.73

33

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.92

33

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.92

34

GASKET, THROTTLE CASE

91532-HA0-020

$6.16

35

SCREW, PAN (4X8)

93500-04008-0G

$1.49

36

SCREW, PAN (4X16)

93500-04016-0G

$1.49

37

SCREW, PAN (5X14)

93500-05014-0G

$3.67

38

SCREW, PAN (5X18)

93500-05018-0G

$1.49

39

SCREW, PAN (5X28)

93500-05028-0G

$1.49

40

SCREW, PAN (6X16)

93500-06016-0G

$1.49

41

SCREW-WASHER (4X12)

93891-04012-07

$1.49

42

SCREW-WASHER (4X16)

93893-04016-07

$1.49

43

NUT, HEX. (6MM)

94001-06070-0S

$1.49

44

NUT, HEX. (6MM)

94002-06000-0S

$1.49

45

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

47

SWITCH ASSY., L. HANDLE This part replaces 35140-HN2-B00.

35140-HN2-B01

$111.75

48

SPRING, RETURN LEVER

53193-HN8-000

$2.92

49

GUARD, HANDLE END

53167-HP5-600

$2.33
