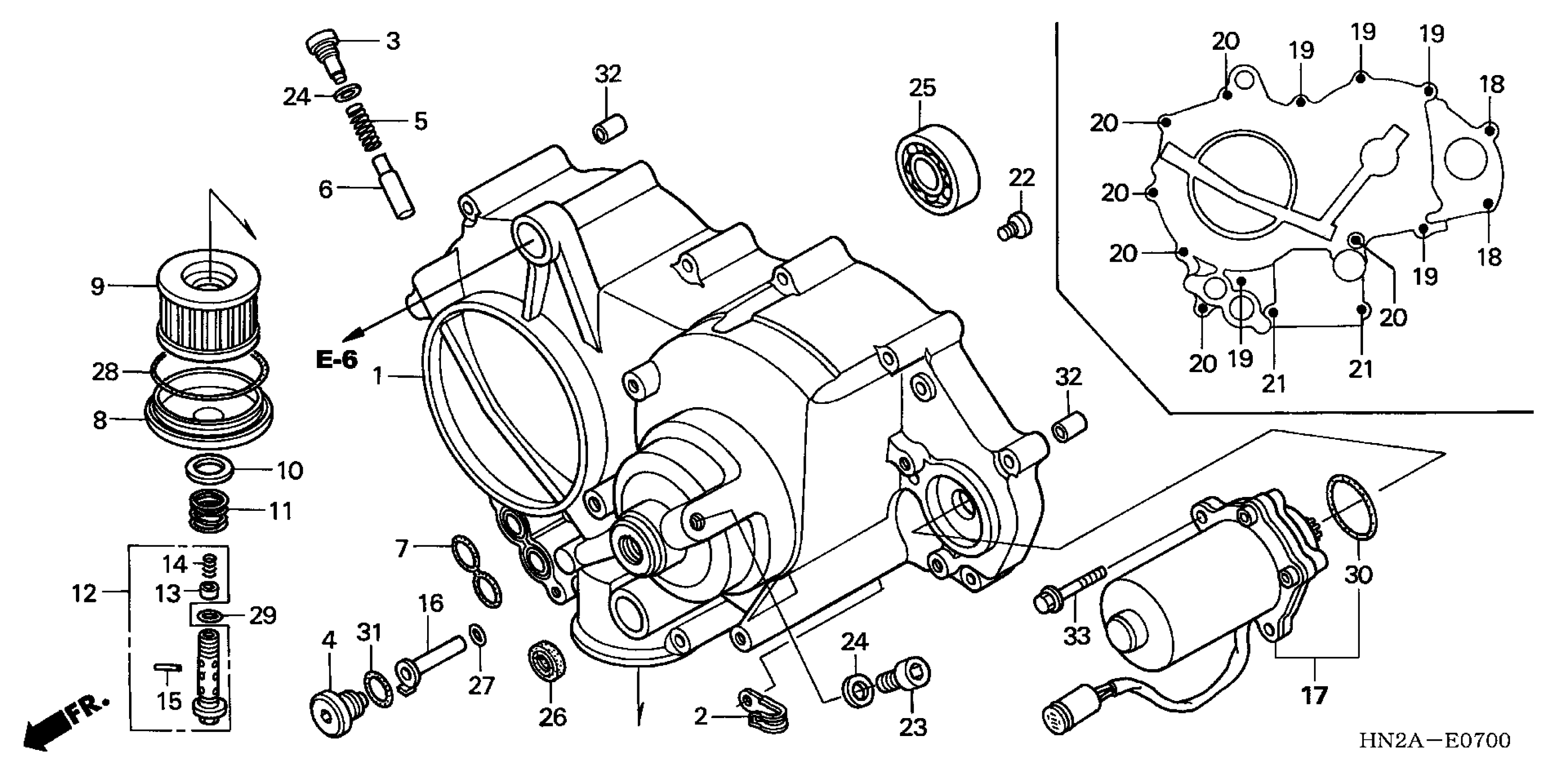

Honda TRX500FA2A (08) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE266-84700001 FRONT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, FR. CRANKCASE

11330-HN2-000

$372.13

2

CLAMP, CONTROL MOTOR

11333-HN2-000

Unavailable

3

BOLT, VALVE SETTING

11334-HN2-000

$5.37

4

BOLT, FEED PIPE SETTING

11335-HN2-000

$8.29

5

SPRING, ORIFICE VALVE (PINK)

11336-HN2-000

$1.87

6

VALVE, RELIEF

11337-HN2-000

$6.87

7

SEAL, RUBBER

15152-HN2-000

$4.63

8

COVER, OIL FILTER

15411-HN2-000

$32.81

9

ELEMENT, OIL FILTER

15412-KEA-003

$8.61

10

SEAT, OIL FILTER SPRING

15414-300-000

$3.71

11

SPRING, FILTER ELEMENT SETTING

15415-413-000

$3.31

12

BOLT, OIL FILTER CENTER

15420-HN2-000

$41.61

13

VALVE, CHECK

15473-300-300

$3.93

14

SPRING, CHECK VALVE

15474-300-310

$4.51

15

PIN, SPRING SETTING

15477-300-300

$3.29

16

PIPE, FEED

26631-HN2-000

$11.47

17

MOTOR ASSY., CONTROL

31300-HN2-003

$272.32

18

BOLT, FLANGE (6X32) (NSHF)

90004-GHB-690

$3.68

19

BOLT, FLANGE (6X50) (NSHF)

90004-GHB-730

$4.05

20

BOLT, FLANGE (6X75) (NSHF)

90004-GHB-780

$2.97

21

BOLT, FLANGE (6X95) (NSHF)

90004-GHB-820

$2.96

22

BOLT, SEALING (10MM)

90083-PL3-000

$8.85

23

BOLT, SPECIAL (10X13)

90101-VD6-003

$4.16

24

WASHER, OIL BOLT

90545-MC0-000

$3.23

24

WASHER, OIL BOLT

90545-300-000

$6.56

25

BEARING, RADIAL BALL (6303SP)

91009-HA0-004

$35.03

26

OIL SEAL (13X22X5) (ARAI)

91204-KE8-003

$2.97

27

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.80

28

O-RING (75X2.5)

91301-107-000

$4.66

29

O-RING (15X2.5)

91302-377-000

$5.07

30

O-RING, CONTROL MOTOR

91351-HM8-A51

$3.65

31

O-RING (22.1X2)

91305-679-003

$4.32

31

O-RING (22.1X2) This part replaces 91355-MB0-003.

91305-679-003

$4.32

32

PIN, DOWEL (8X14)

94301-08140

$2.62

33

BOLT, FLANGE (6X22)

95701-06022-00

$1.66
