Description

Price

1

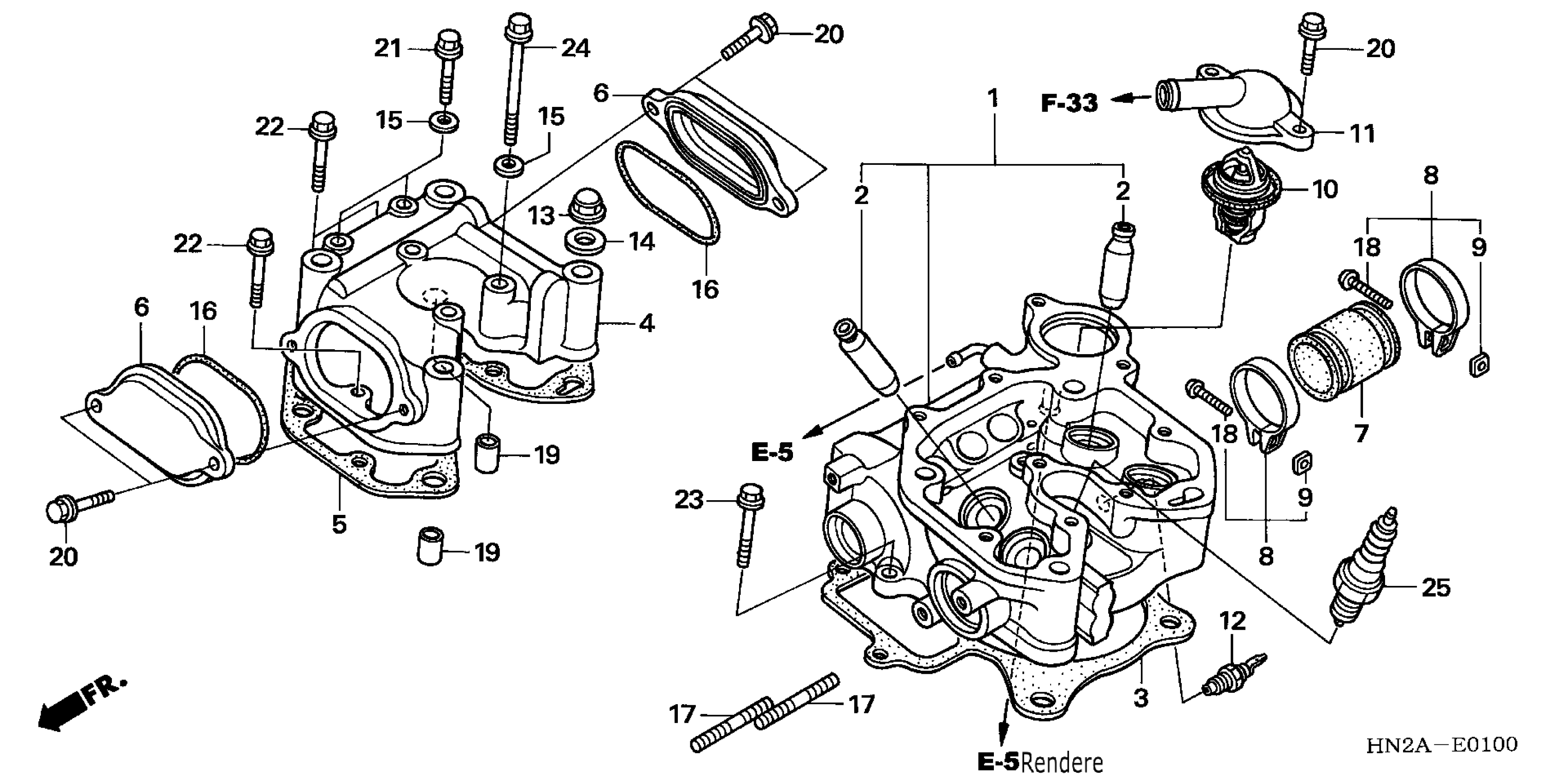

CYLINDER HEAD

12200-HN2-000

$318.74

2

GUIDE, VALVE (OVER SIZE)

12204-HN2-305

$18.00

3

GASKET, CYLINDER HEAD

12251-HN2-003

$36.27

3

GASKET, CYLINDER HEAD (OVER SIZE) | (Optional).

12252-HN2-305

$40.09

4

COVER, CYLINDER HEAD

12310-HN2-000

$206.66

5

GASKET, HEAD COVER

12315-HN2-003

$15.44

6

COVER, TAPPET ADJUSTING HOLE

12351-HN2-010

$12.31

7

INSULATOR, CARBURETOR

16211-HN2-000

$26.78

8

BAND B, INSULATOR

16218-MW4-000

$15.25

9

NUT, SQUARE (5MM)

16222-MV4-300

$1.99

10

THERMOSTAT ASSY.

19300-HN2-003

$39.86

11

COVER, THERMOSTAT

19321-HN2-000

$28.97

12

THERMO UNIT (DENSO)

37750-MAZ-003

$35.78

13

NUT, CAP (10MM)

90201-HA0-000

$6.15

13

NUT, CAP (10MM) This part replaces 90202-HA0-000.

90201-HA0-000

$6.15

14

WASHER, PLAIN (10MM)

90401-437-000

$2.59

15

WASHER, SEALING (6MM)

90441-706-000

$1.07

16

O-RING (57X2.5)

91308-500-000

$6.71

17

BOLT, STUD (8X25)

92900-08025-0B

$2.59

18

SCREW, PAN (5X25)

93500-05025-0G

$0.69

19

PIN A, DOWEL (12X16)

94301-12160

$2.80

20

BOLT, FLANGE (6X20)

95701-06020-00

$1.63

21

BOLT, FLANGE (6X22)

95701-06022-00

$1.66

22

BOLT, FLANGE (6X25)

95701-06025-00

$1.66

23

BOLT, FLANGE (6X30)

95701-06030-00

$1.74

24

BOLT, FLANGE (6X70)

95701-06070-00

$2.74

25

SPARK PLUG (IJR6A9) (NGK) | (Optional).

98069-5691U

$15.80

25

SPARK PLUG (VX20BC) (DENSO) | (Optional).

98069-5692U

Unavailable

25

SPARK PLUG (IJR7A9) (NGK)

98069-5791U

$15.29

25

SPARK PLUG (VX22BC) (DENSO)

98069-5792U
