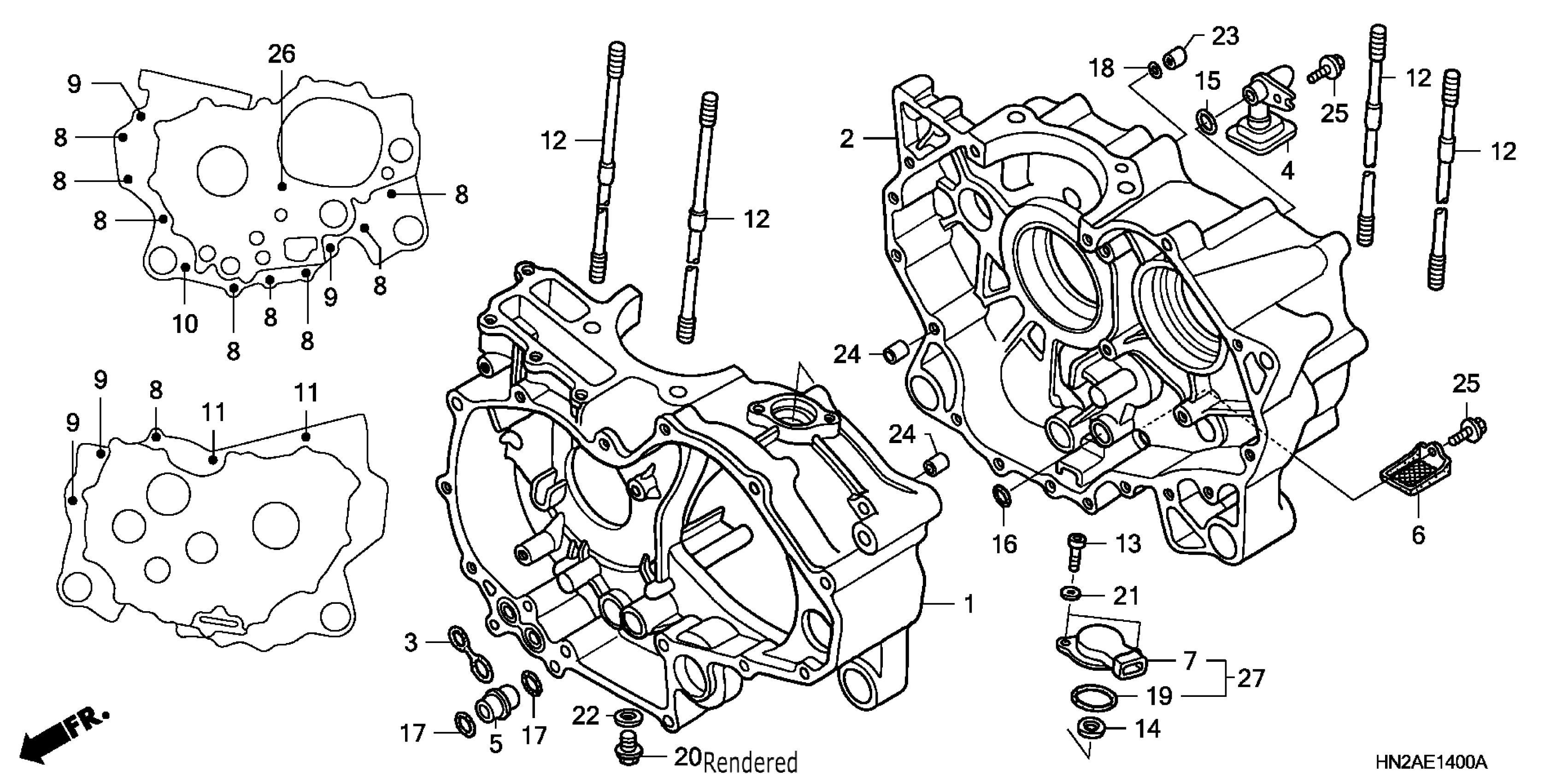

Honda TRX500FA2A (08) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE266-84700001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, FR.

11100-HN2-000

$512.25

2

CRANKCASE, RR.

11200-HN2-000

$574.00

3

SEAL, RUBBER

15152-HN2-000

$4.51

4

STRAINER, OIL

15153-HN2-000

Unavailable

5

JOINT, SPECIAL

15235-HN2-000

$5.37

6

SCREEN, OIL FILTER (KOYO)

15421-MN1-671

$9.90

7

SENSOR KIT, ANGLE

06380-HN2-305

$105.92

7

SENSOR KIT, ANGLE This part replaces 38800-HN2-015.

06380-HN2-305

$105.92

8

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$3.79

9

BOLT, FLANGE (6X55) (NSHF)

90004-GHB-740

$4.54

10

BOLT, FLANGE (6X65) (NSHF)

90004-GHB-760

$5.19

11

BOLT, FLANGE (6X80) (NSHF)

90004-GHB-790

$5.15

12

BOLT, STUD (10X252.5)

90032-HN2-A00

$10.73

13

BOLT, SOCKET (5X14)

90049-KBH-000

$1.38

14

OIL SEAL (6X13X5) (ARAI)

91202-GF9-003

$3.10

15

O-RING (9.8X1.9) This part replaces 91302-PJ4-000.

91305-PE2-003

$2.41

15

O-RING (9.8X1.9) This part replaces 91302-PJ4-004.

91305-PE2-003

$2.41

15

O-RING (9.8X1.9)

91305-PE2-003

$2.41

16

O-RING (11.8X2.4)

91302-ZE9-003

$2.33

17

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.61

17

O-RING (14.8X2.4) (NOK)

91356-MA6-005

$1.70

18

O-RING (5.5X1.4)

91319-ME5-003

$1.68

19

O-RING (25X2.4) (NOK)

91321-P0X-003

$3.55

20

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.00

21

WASHER, PLAIN (5MM)

94101-05000

$0.90

22

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12

23

PIN, DOWEL (6X10)

94301-06100

$2.04

24

PIN, DOWEL (8X14)

94301-08140

$2.04

25

BOLT, FLANGE (6X14)

95701-06014-00

$0.91

26

BOLT, FLANGE (6X80)

95701-06080-08

$2.30

27

SENSOR KIT, ANGLE

06380-HN2-305

$105.92
