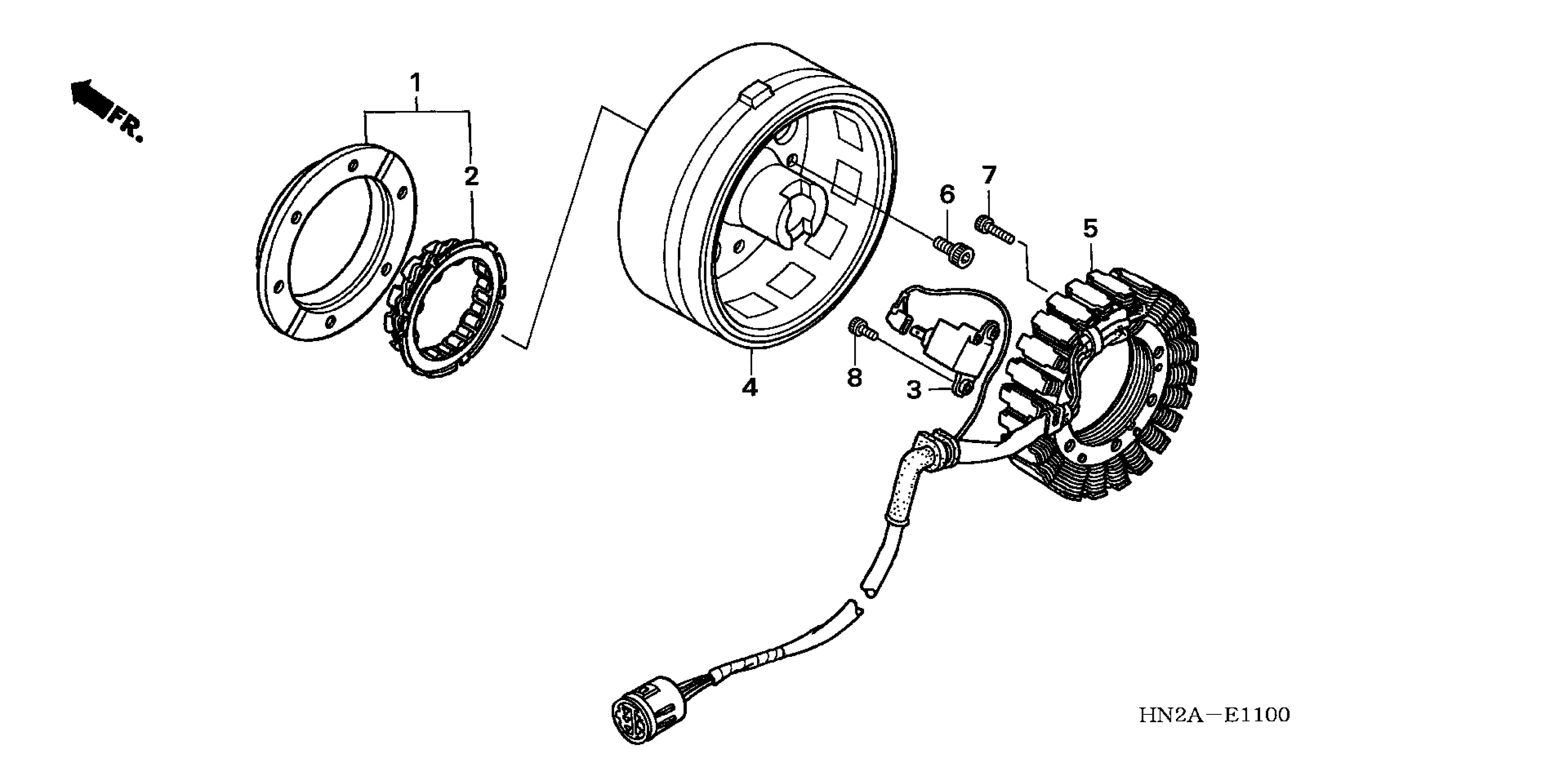

Honda TRX500FA2A (08) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE266-84700001 ALTERNATOR Diagram

#

Description

Price

1

CLUTCH OUTER, STARTING

28125-HN2-003

$248.19

2

CLUTCH, ONE-WAY

28126-HN0-A01

$72.70

3

GENERATOR ASSY., PULSE (TEC)

30300-HA0-033

$37.40

4

FLYWHEEL

31110-HN2-A21

$348.22

5

STATOR

31120-HN2-A21

$249.70

6

BOLT, SOCKET (8X12)

90010-HN2-000

$2.32

7

BOLT, SOCKET (6X34)

90012-KR8-000

$3.12

8

BOLT, SOCKET (5X12)

90089-KR0-000

$2.80
