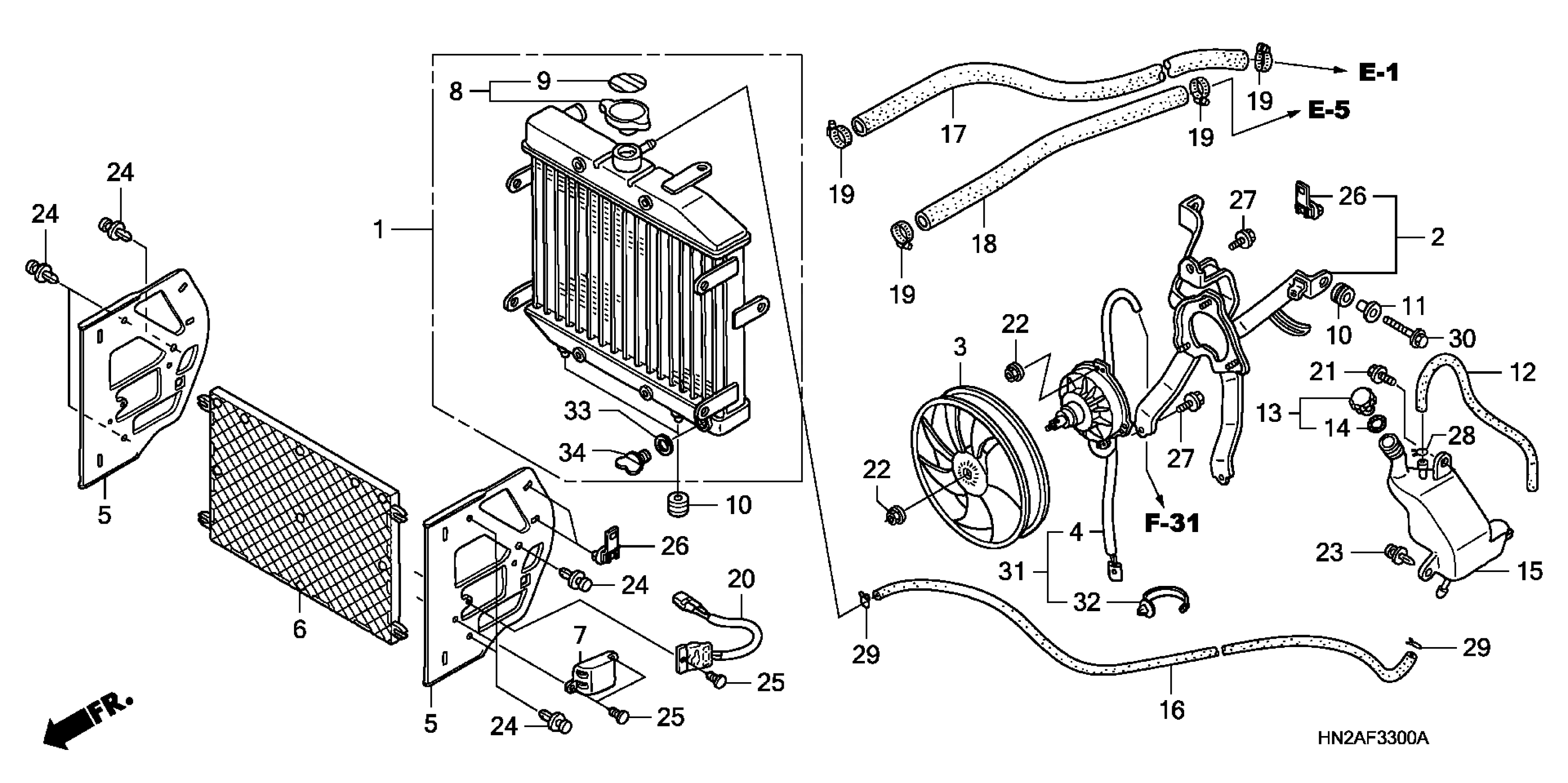

Honda TRX500FA2A (07) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE266-74600001 TO 1HFTE266-74699999 RADIATOR Diagram

#

Description
Price

1

RADIATOR

19010-HN2-A21

$244.88

2

STAY, COOLING FAN

19015-HN2-A21

$29.17

3

FAN, COOLING

19020-HN2-003

$61.82

4

MOTOR ASSY., FAN

19030-HN2-A21

$115.38

5

COVER, RADIATOR GRILLE

19033-HN2-A20

$8.91

6

PLATE, RADIATOR GRILL

19034-HN2-A20

$13.09

7

COVER, THERMO SWITCH

19036-HN8-000

$5.55

8

CAP, RADIATOR

19037-GEE-710

$27.19

9

LABEL, RADIATOR CAP

19046-PAA-A00

$2.80

10

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.08

11

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.26

12

TUBE, BREATHER

19104-HN2-000

$4.77

13

CAP ASSY., RESERVE TANK

19105-MG8-000

$11.30

14

GASKET, RESERVE TANK

19107-MG8-000

$4.56

15

TANK, RADIATOR RESERVE

19110-HN2-000

Unavailable

16

TUBE, RADIATOR RESERVE

19111-HN2-A20

$2.99

17

HOSE, WATER (UPPER)

19501-HN2-A20

$14.14

18

HOSE, WATER (LOWER)

19502-HN2-000

$17.76

19

BAND, WATER HOSE (27MM)

19503-HN2-A60

$4.33

20

SWITCH ASSY., THERMOSTAT

35250-HN4-670

$43.18

21

BOLT, FLANGE (6MM)

90111-162-000

$2.62

22

NUT, SERRATE (5MM)

90315-MK3-003

$2.12

23

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

24

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

25

CLIP, WASHER MOUTH

91504-SD5-901

$4.09

26

CLIP, CONNECTOR (BLACK)

91565-SEL-003

$3.42

27

BOLT-WASHER (6X12)

93401-06012-08

Unavailable

28

CLIP, TUBE (B10)

95002-02100

$1.72

29

CLIP, TUBE (C9)

95002-50000

$1.14

30

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

33

SEAL, GASKET

19109-HN2-003

$1.59

34

PETCOCK, DRAIN

90103-HN2-003

$1.61
