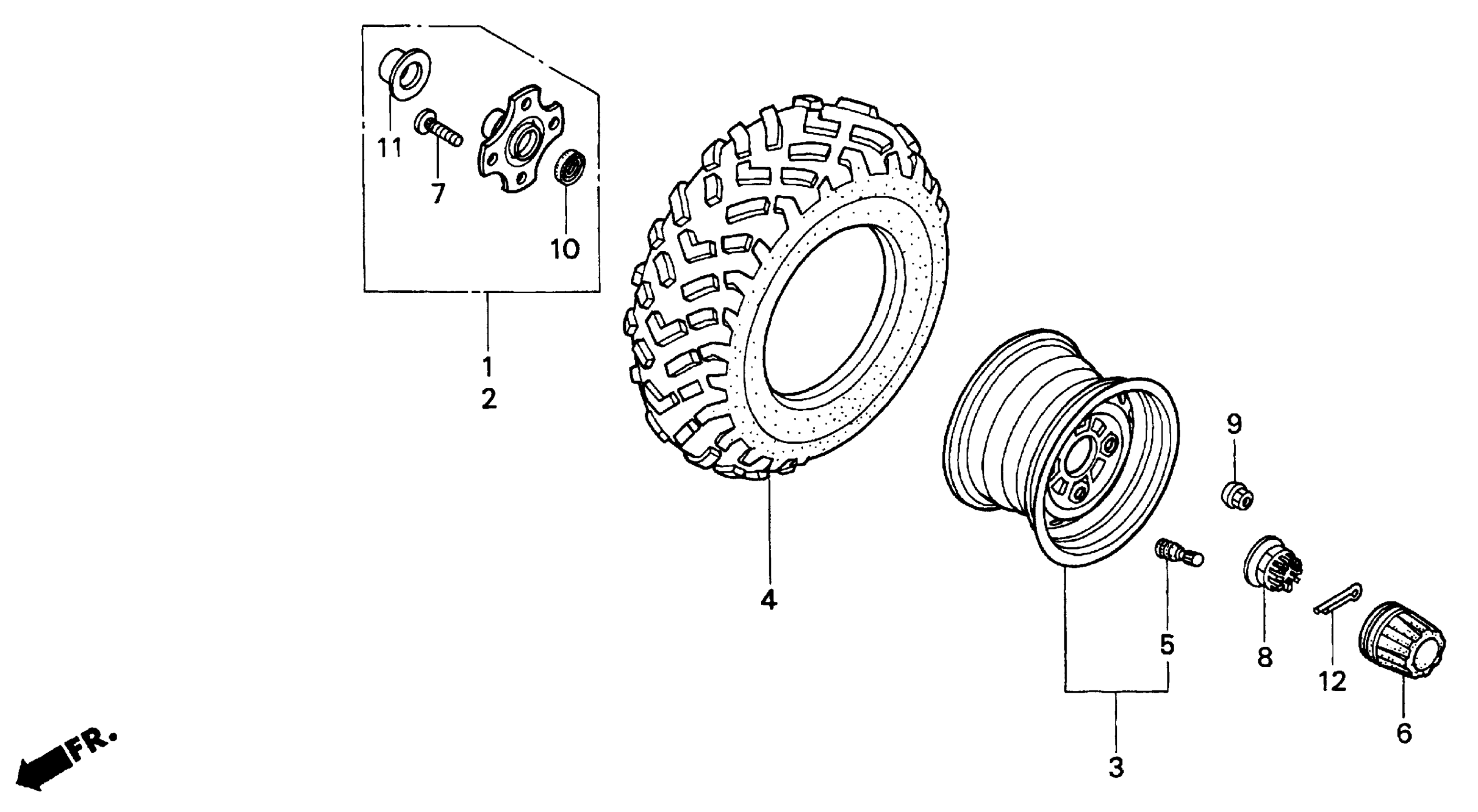

Honda TRX450SA (01) FOURTRAX FOREMAN S, USA, VIN# 478TE220-14200001 REAR WHEEL Diagram

HUB, R. RR. This part replaces 42610-HM7-610.

42610-HN0-670

$137.89

HUB, R. RR.

42610-HN0-670

$137.89

HUB, L. RR. This part replaces 42620-HM7-610.

42620-HN0-670

$134.53

HUB, L. RR.

42620-HN0-670

$134.53

WHEEL SUB-ASSY., RR. | Use up to Frame SN 14207030 This part replaces 42650-HN0-A00.

42650-HN0-505

$61.96

WHEEL SUB-ASSY., RR. This part replaces 42650-HN0-A60.

42650-HN0-505

$61.96

TIRE (ZA602) (25X10-12) (SRI) | (Optional).

42711-HM7-052

Unavailable

TIRE, RR. (25X10-12) (KT405C) (DUNLOP) This part replaces 42711-HN0-A01.

42711-HN0-A41

Unavailable

TIRE, RR. (25X10-12) (KT405C) (DUNLOP)

42711-HN0-A41

Unavailable

VALVE, RIM (TR412)

42753-HF1-670

$5.37

CAP, WHEEL CENTER

44732-HC4-000

$24.03

BOLT, WHEEL (10X30) | Use up to Frame SN 14207030

90103-HB3-300

$6.45

BOLT, WHEEL (10X32) | Use from Frame SN 14207031

90103-HN0-A60

$5.84

NUT, AXLE (20MM)

90304-HM7-A10

$12.05

NUT, WHEEL

90314-HM5-A10

$3.39

DUST SEAL (21.4X28.2X5) (ARAI)

91255-HM7-003

$7.63

RING, SIDE SEAL

91265-HA8-003

$27.70

PIN, SPLIT (4.0X40)

94201-40400

$1.49
