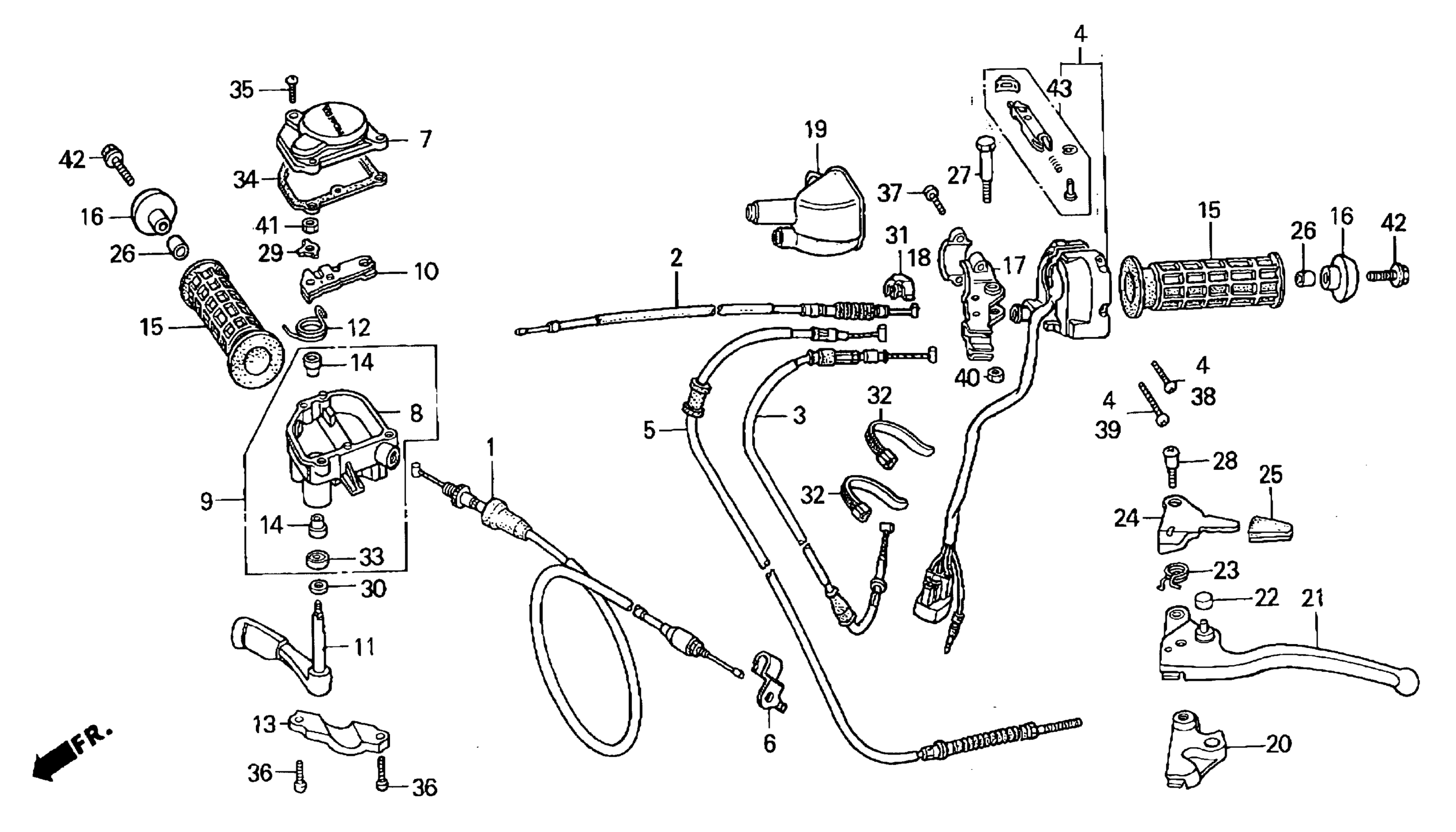

Honda TRX450SA (01) FOURTRAX FOREMAN S, USA, VIN# 478TE220-14200001 450S HANDLE SWITCH + CABLES Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-HN0-A00

$41.32

2

CABLE, CHOKE

17950-HN0-A00

$10.92

3

CABLE, REVERSE ASSIST

22880-HN0-A00

$21.73

4

SWITCH SET, LIGHTING & STARTER STOP

35020-HM7-A00

$120.41

5

CABLE, HAND BRAKE

43460-HN0-A00

$22.53

6

CLAMP, BRAKE CABLE

50352-HM7-000

$5.46

7

COVER, THROTTLE CASE

53141-HC3-000

Unavailable

8

CASE, THROTTLE LEVER

53142-HC0-770

$41.34

9

CASE ASSY., THROTTLE LEVER

53143-HM7-305

$50.26

10

ARM, THROTTLE

53144-HA0-010

$7.72

11

LEVER, THROTTLE

53145-HA0-770

$24.05

12

SPRING, THROTTLE RETURN

53146-HA0-000

$4.53

13

HOLDER, THROTTLE CASE

53147-HM5-850

$3.71

14

BUSH, THROTTLE PIVOT

53148-HA0-000

$8.00

15

GRIP, HANDLE

53165-958-010

$13.38

16

GUARD, HANDLE END

53167-958-680

$6.40

17

BRACKET, HANDLE LEVER

53172-HM7-000

$35.57

18

HOLDER, LEVER BRACKET

53173-376-000

$10.95

19

COVER, L. HANDLE LEVER

53177-HA0-680

$11.72

20

ARM, REVERSE ASSISTANT

53179-HA6-000

$15.17

21

LEVER, RR. BRAKE

53180-HA8-770

$29.38

22

CAP, REVERSE PIN

53187-VM6-000

$3.89

23

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

24

LEVER, PARKING BRAKE LOCK

53192-HN0-A00

$12.96

25

CAP, PARKING LEVER

53193-HA0-770

$6.16

26

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

27

BOLT, HANDLE LEVER PIVOT

90114-HA0-770

$2.56

27

BOLT, HANDLE LEVER PIVOT This part replaces 90114-VM6-000.

90114-HA0-770

$2.56

28

SCREW, PARKING LEVER PIVOT

90115-HA6-000

$4.08

29

WASHER, LOCK (6MM)

90501-HA0-000

$2.92

30

WASHER (9X20)

90504-HA0-000

$2.28

31

CLIP, CHOKE CABLE

90651-HM7-720

$4.31

32

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

33

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.92

33

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.92

34

GASKET, THROTTLE CASE

91532-HA0-020

$6.16

35

SCREW, PAN (4X16)

93500-04016-0G

$1.49

36

SCREW, PAN (5X14)

93500-05014-0G

$3.67

37

SCREW, PAN (5X18)

93500-05018-0G

$1.49

38

SCREW, PAN (5X25)

93500-05025-0G

$1.49

39

SCREW, PAN (5X35)

93500-05035-0G

$1.49

40

NUT, HEX. (6MM)

94001-06070-0S

$1.49

41

NUT, HEX. (6MM)

94002-06000-0S

$1.49

42

BOLT, FLANGE (6X25)

95701-06025-07

$1.80

43

LEVER SET, CHOKE

17962-HM7-A00

$13.49
