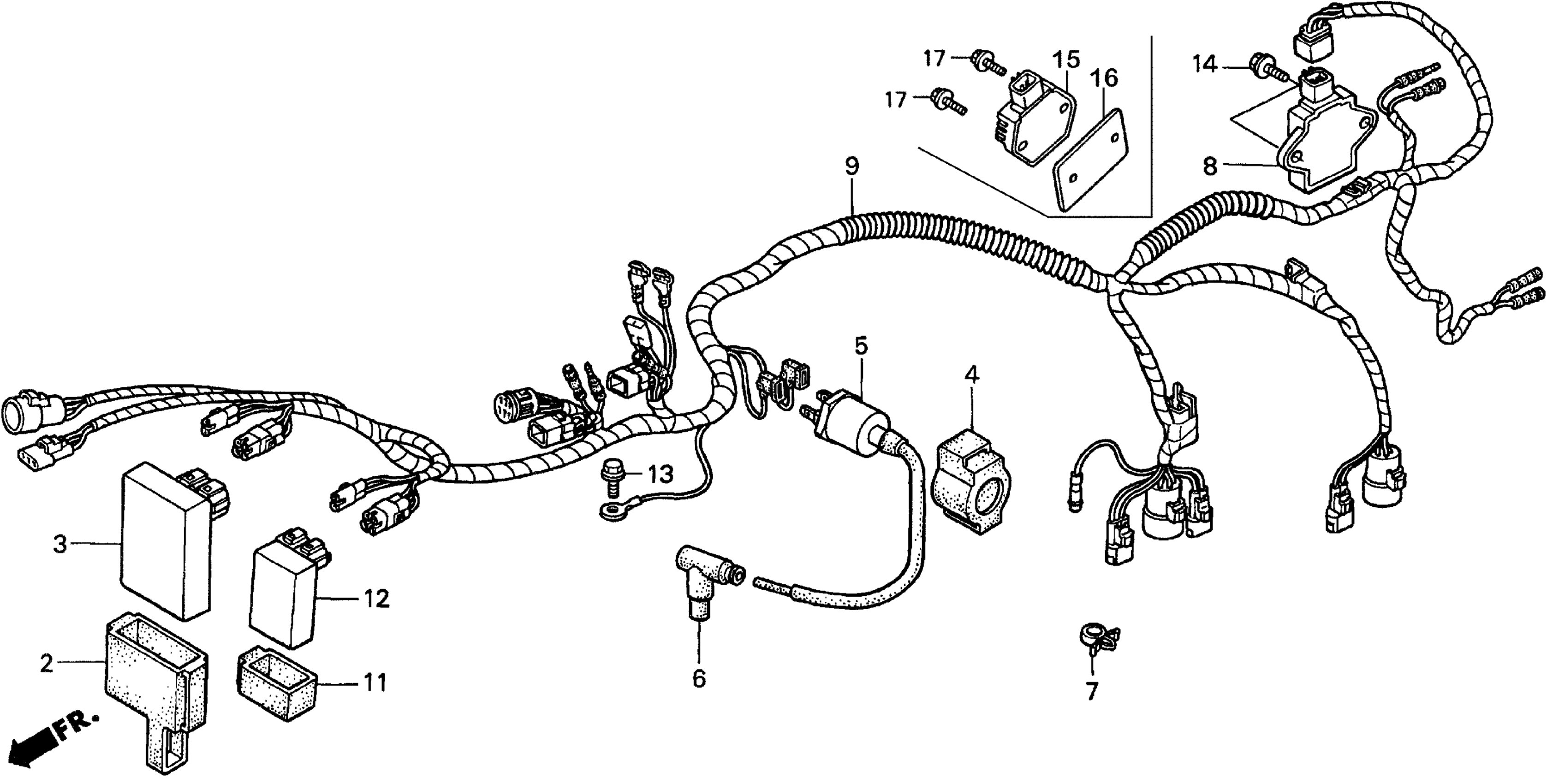

Honda TRX450SA (00) FOURTRAX FOREMAN S, USA, VIN# 478TE220-Y4100001 450S WIRE HARNESS Diagram

#

Description

Price

2

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-HA7-670

$8.98

3

MODULE, IGNITION CONTROL (CDI) This part replaces 30410-HN0-A00.

30410-HN0-A01

$117.41

4

SUSPENSION, IGNITION COIL

30506-KV3-771

$10.67

5

COIL, IGNITION This part replaces 30510-HM7-003.

30510-KJ2-405

$77.65

5

COIL, IGNITION

30510-KJ2-405

$77.65

6

CAP ASSY. This part replaces 30700-KY4-900.

30700-KY4-901

$26.45

7

CLIP, IGNITION WIRE (8MM)

30701-883-000

$2.65

8

RECTIFIER ASSY., REGULATOR This part replaces 31600-HM7-003.

31600-HN5-671

$101.87

8

RECTIFIER ASSY., REGULATOR

31600-HN5-671

$101.87

9

WIRE HARNESS

32100-HN0-A01

Unavailable

11

RUBBER, FAN CONTROL UNIT (TATEISHI)

38401-HC4-004

Unavailable

12

CONTROL UNIT, FAN

38710-HM7-004

$207.16

13

BOLT, FLANGE (6X10)

96001-06010-00

$1.48

14

BOLT, FLANGE (6X14)

96001-06014-00

$1.64
