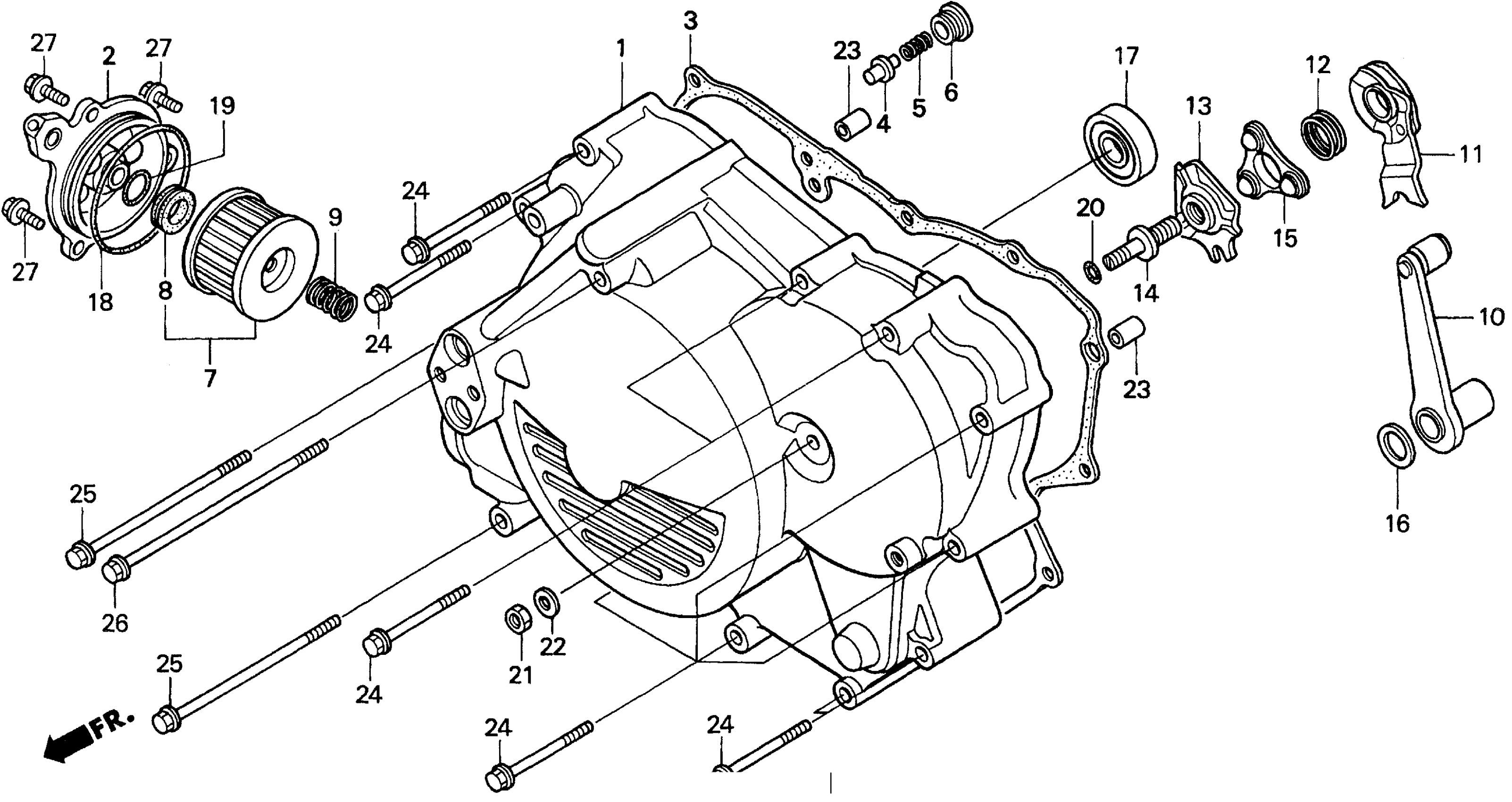

Honda TRX450SA (00) FOURTRAX FOREMAN S, USA, VIN# 478TE220-Y4100001 450S CRANKCASE COVER, FR. Diagram

#

Description
Price

1

COVER, FR. CRANKCASE This part replaces 11330-HM7-000.

11330-HN0-670

Unavailable

1

COVER, FR. CRANKCASE

11330-HN0-670

Unavailable

2

COVER, OIL FILTER

11333-HC4-000

Unavailable

3

GASKET, FR. CRANKCASE COVER

11394-HM7-003

$27.00

4

VALVE, RELIEF

15231-HM3-670

$12.43

5

SPRING, RELIEF VALVE

15232-HM3-670

$1.93

6

CAP, RELIEF VALVE

15235-HM3-670

$21.69

7

ELEMENT, OIL FILTER

15412-HM5-A10

$5.50

8

RUBBER, FILTER

15413-MC8-000

$3.35

9

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.24

10

LEVER, CLUTCH

22810-HM7-700

$87.24

11

PLATE, CLUTCH CAM

22820-HM7-010

Unavailable

12

SPRING, CAM PLATE SIDE

22825-HB3-003

$2.57

13

PLATE, CLUTCH LIFTER

22830-HC4-000

Unavailable

14

BOLT, CLUTCH ADJUSTING

22841-HC4-000

$7.95

15

RETAINER, BALL

22860-HB3-000

$7.81

16

WASHER (10X21.5)

90413-GE0-000

$3.90

17

BEARING, RADIAL BALL (6303SP)

91009-HA0-004

$39.30

18

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.47

19

O-RING (11X1.9) (NOK)

91303-HA0-004

$2.13

20

O-RING (8.2X1.5)

91308-MC7-000

$2.31

21

NUT, HEX. (8MM)

94030-08000

$1.49

22

WASHER, PLAIN (8MM)

94102-08800

$1.49

23

PIN, DOWEL (8X14)

94301-08140

$2.25

24

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

25

BOLT, FLANGE (6X85)

95701-06085-00

$1.64

26

BOLT, FLANGE (6X100)

95701-06100-00

$2.79

27

BOLT, FLANGE (6X18)

96001-06018-00

$1.80
