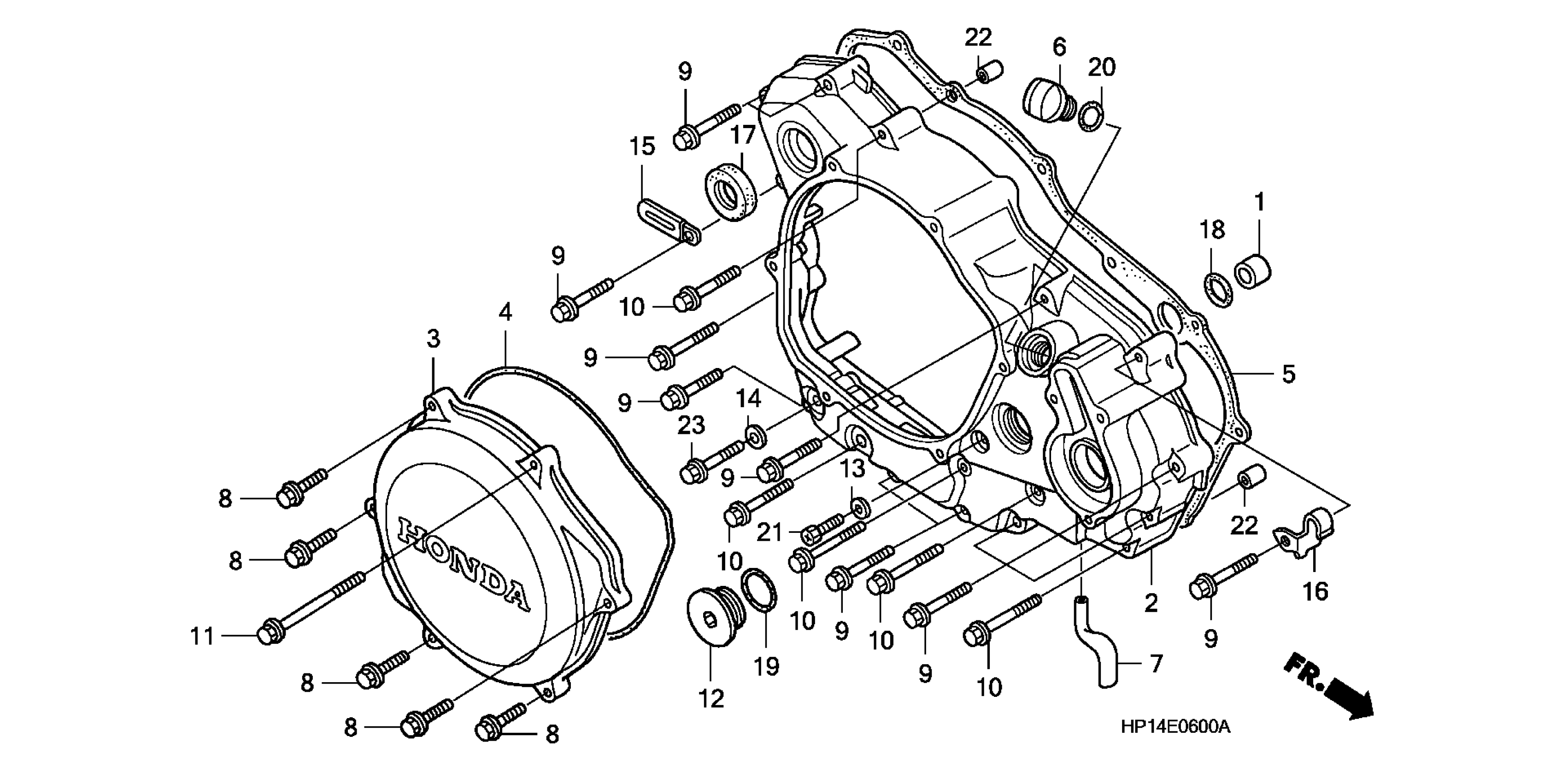

Honda TRX450RA (05) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE300-5A100001 TO 1HFTE300-5A199999 RIGHT CRANKCASE COVER ('04,'05) Diagram

COLLAR, WATER PASS (18MM)

11102-MEB-670

$3.11

COVER, R. CRANKCASE

11330-HP1-670

$216.43

COVER, CLUTCH

11351-HP1-670

$82.54

O-RING, CLUTCH COVER

11352-HP1-670

$5.91

GASKET, R. COVER

11394-HP1-670

$25.00

CAP, OIL FILLER

15611-KA4-710

$13.22

HOSE, DRAIN

19507-HP1-670

$15.85

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.36

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$3.89

BOLT, FLANGE (6X45) (NSHF)

90004-GHB-720

$4.02

BOLT, FLANGE (6X75) (NSHF)

90004-GHB-780

$2.97

CAP (30MM)

90087-HB5-000

$15.31

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

WASHER, SEALING (8MM)

90474-333-000

$4.15

CLIP (4X50)

90601-KJ9-000

$2.95

GUIDE, WATER HOSE

90610-HP1-670

Unavailable

OIL SEAL (20X28X5)

91204-KF0-003

$6.23

O-RING (17.8X2.4) (SHOWA)

91256-383-721

$2.12

O-RING (27X2) (ARAI)

91305-KF0-003

$2.80

O-RING (18X3)

91307-035-000

$2.75

BOLT, RECESSED (6X10)

92301-06010-0A

$0.72

PIN, DOWEL (8X14)

94301-08140

$2.76

BOLT, FLANGE (8X20)

95701-08020-08

$1.46
