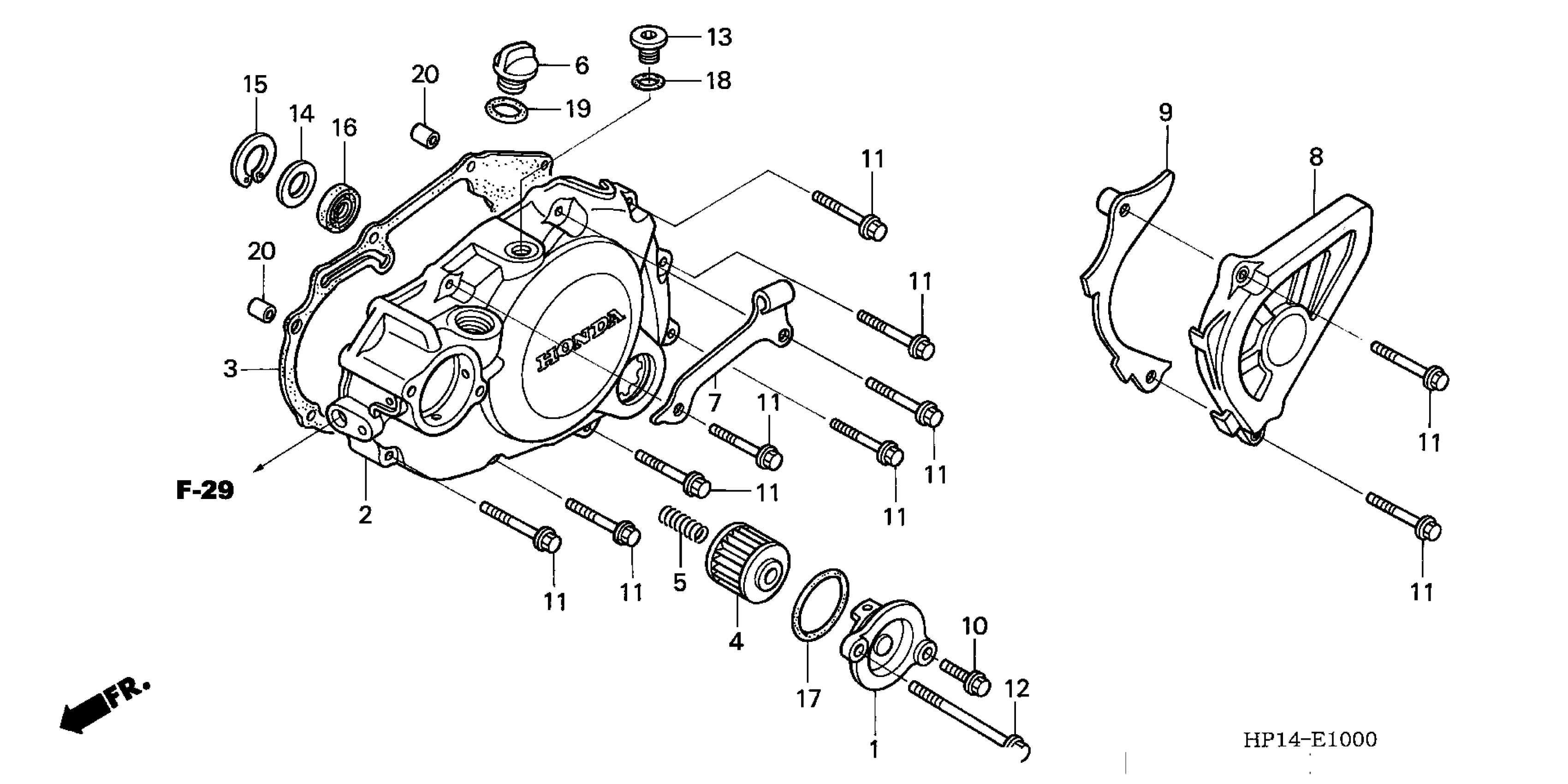

Honda TRX450RA (05) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE300-5A100001 TO 1HFTE300-5A199999 LEFT CRANKCASE COVER ('04,'05) Diagram

COVER, OIL FILTER

11333-HP1-670

Unavailable

COVER, L. CRANKCASE

11340-HP1-670

Unavailable

GASKET, L. COVER

11395-HP1-670

$13.86

FILTER, ENGINE OIL

15412-MEN-671

$7.74

SPRING, OIL FILTER

15414-MEB-670

$2.62

CAP, OIL FILLER

15611-KA4-710

$14.40

RECEIVER, CLUTCH CABLE

22838-HP1-670

Unavailable

COVER, DRIVE SPROCKET

23810-HP1-670

Unavailable

GUIDE, DRIVE CHAIN

23820-HP1-670

Unavailable

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.51

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$4.07

BOLT, FLANGE (6X80) (NSHF)

90004-GHB-790

$5.54

CAP (14MM)

90084-MN8-010

$12.82

WASHER, THRUST (13MM)

90451-459-770

$2.48

CIRCLIP, SPECIAL (INNER) (24MM)

90602-MEB-670

$3.08

OIL SEAL (12X22X5)

91203-HP1-671

$6.05

O-RING (39.8X2.2) (ARAI)

91302-PA9-003

$4.21

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (18X3)

91307-035-000

$2.92

PIN, DOWEL (8X14)

94301-08140

$2.25
