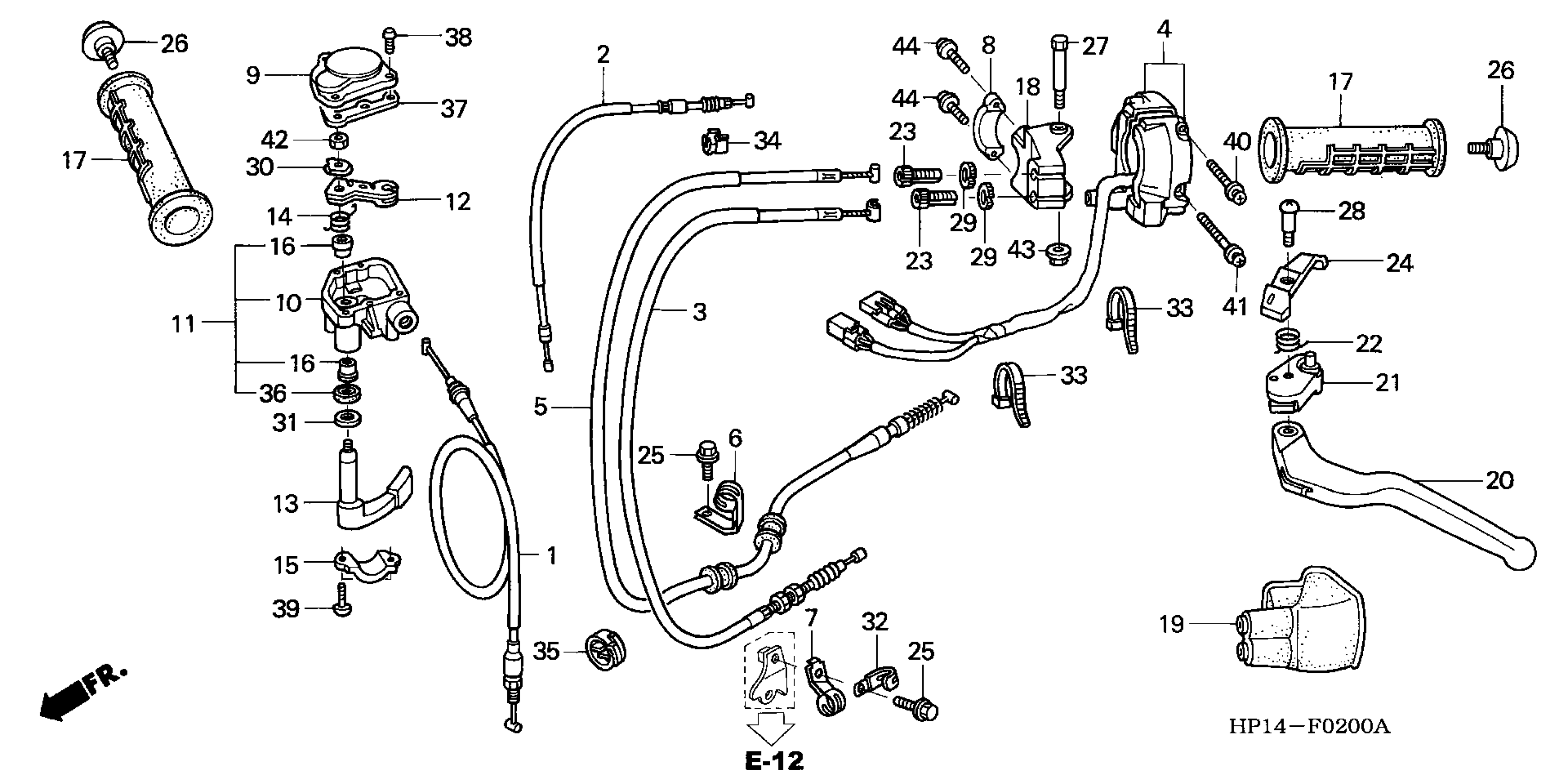

Honda TRX450RA (05) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE300-5A100001 TO 1HFTE300-5A199999 HANDLE LEVER + SWITCH + CABLE ('04,'05) Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-HP1-000

$35.14

2

CABLE, HOT STARTER

17950-HP1-000

$10.50

3

CABLE, CLUTCH

22870-HP1-000

$19.58

4

SWITCH ASSY., LIGHT

35200-HP1-003

$48.43

5

CABLE, PARKING BRAKE

43455-HP1-000

Unavailable

6

CLAMP A, PARKING BRAKE

43457-HP1-000

Unavailable

7

CLAMP B, PARKING BRAKE

43459-HP1-000

Unavailable

8

HOLDER, MASTER CYLINDER

45517-GW0-751

$12.41

9

COVER, THROTTLE CASE

53141-HP1-000

$36.58

10

CASE, THROTTLE LEVER

53142-HC0-770

$41.34

11

CASE ASSY., THROTTLE LEVER

53143-HM7-305

$50.26

12

ARM, THROTTLE

53144-HA0-010

$7.72

13

LEVER, THROTTLE This part replaces 53145-HA0-305.

53145-HA0-770

$24.05

13

LEVER, THROTTLE

53145-HA0-770

$24.05

14

SPRING, THROTTLE RETURN

53146-HM8-000

$3.10

15

HOLDER, THROTTLE CASE

53147-HM5-850

$3.71

16

BUSH, THROTTLE PIVOT

53148-HA0-000

$8.00

17

GRIP, HANDLE

53165-HP1-000

$34.02

18

BRACKET, L. HANDLE LEVER

53172-HP1-000

Unavailable

19

COVER, L. HANDLE LEVER

53177-HA5-000

$8.76

20

LEVER, L. HANDLEBAR (COO) This part replaces 53178-HP1-000.

53178-HP1-305

$35.90

20

LEVER, L. HANDLEBAR (COO)

53178-HP1-305

$35.90

21

ARM ASSY., PARKING

53180-HM3-000

$41.39

22

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

23

BOLT, WIRE ADJUSTING

53192-268-000

$6.72

24

LEVER, PARKING BRAKE LOCK

53192-965-000

$21.58

25

BOLT, FLANGE (6X12)

90103-MCS-G00

$1.49

26

BOLT, GRIP END

90109-HP1-000

$2.02

27

BOLT, HANDLE LEVER PIVOT

90115-HB5-671

$4.80

28

SCREW, PARKING BRAKE LEVER PIVOT

90115-961-000

$2.92

29

NUT, FIXING

90321-315-670

$7.31

30

WASHER, LOCK (6MM)

90501-HA0-000

$2.92

31

WASHER (9X20)

90504-HA0-000

$2.28

32

CLIP, SUB-WIRE

32901-MA1-000

$4.95

33

BAND, WIRE

90650-KW3-000

$4.48

34

CLIP, HOT STARTER CABLE

90651-HP1-000

$2.33

35

CLIP, WIRE HARNESS

90683-KJ2-003

$3.56

36

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.92

36

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.92

37

GASKET, THROTTLE CASE

91532-HA0-020

$6.16

38

SCREW, PAN (4X16)

93500-04016-0G

$1.49

39

SCREW, PAN (5X14)

93500-05014-0G

$3.67

40

SCREW-WASHER (5X25)

93892-05025-07

$1.49

40

SCREW-WASHER (5X25) This part replaces 93892-05025-17.

93892-05025-07

$1.49

41

SCREW-WASHER (5X35)

93892-05035-07

$1.49

42

NUT, HEX. (6MM)

94002-06000-0S

$1.49

43

NUT, FLANGE (6MM)

94050-06000

$1.49

44

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
