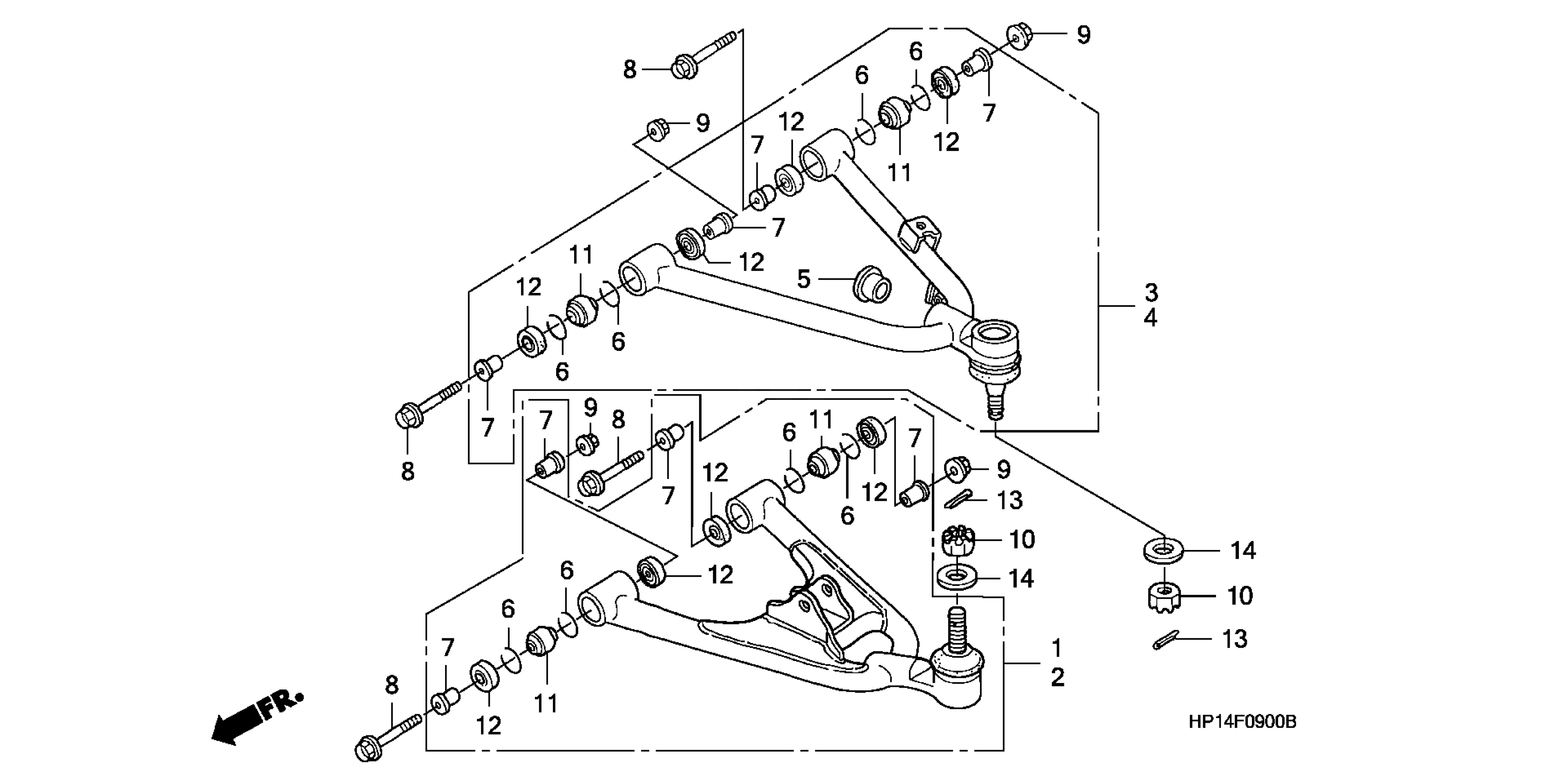

Honda TRX450RA (05) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE300-5A100001 TO 1HFTE300-5A199999 FRONT ARM Diagram

#

Description

Price

1

ARM ASSY., R. FR. (LOWER)

51350-HP1-000

$288.93

2

ARM ASSY., L. FR. (LOWER)

51360-HP1-000

$288.93

3

ARM ASSY., R. FR. (UPPER)

51370-HP1-000

$151.70

4

ARM ASSY., L. FR. (UPPER)

51380-HP1-000

$608.21

5

CAP, ARM (UPPER) This part replaces 51391-HP1-000.

51391-HP1-600

Unavailable

6

RING, STOPPER

51393-HB9-670

$4.98

7

COLLAR, FR. ARM PIVOT

51394-HC0-000

$11.26

8

BOLT, FLANGE (10X62)

90183-HC0-770

$10.50

9

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

10

NUT, CASTLE (12MM)

90310-HB9-000

$6.05

11

BEARING, SPECIAL (10MM) (THOMPSON)

91077-HB9-672

$38.29

12

DUST SEAL, FR. ARM PIVOT (ARAI)

91265-HB9-671

$3.92

13

PIN, SPLIT (3.0X18)

94201-30180

$1.49

14

WASHER, PLAIN (12MM)

94102-12000

$1.49
