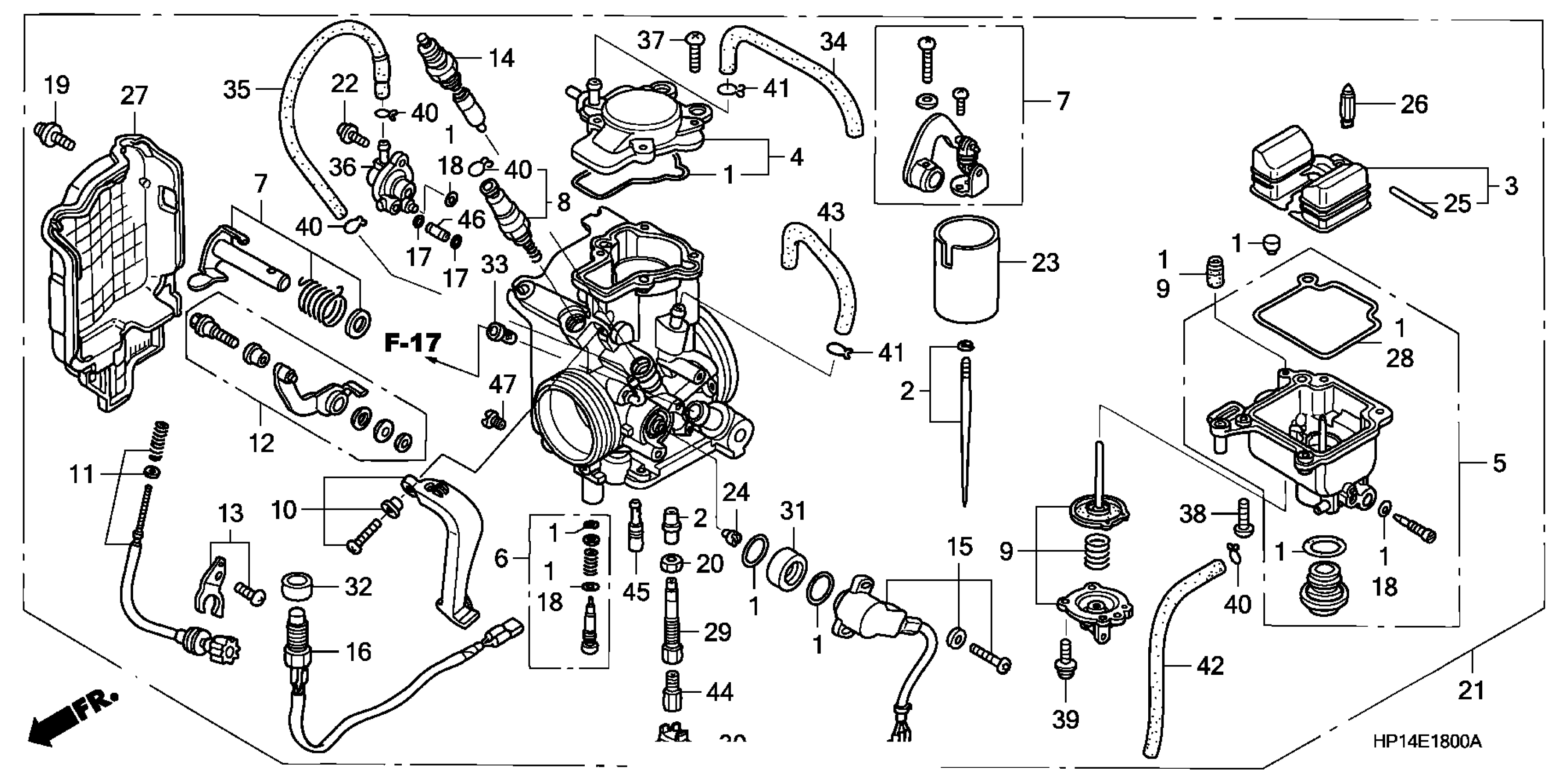

Honda TRX450RA (05) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE300-5A100001 TO 1HFTE300-5A199999 CARBURETOR ('04,'05) Diagram

#

Description
Price

1

GASKET SET

16010-HP1-671

Unavailable

2

NEEDLE SET, JET

16012-HP1-672

Unavailable

3

FLOAT SET

16013-HN8-003

$36.12

4

TOP SET

16014-HP1-671

Unavailable

5

CHAMBER SET, FLOAT

16015-HP1-671

$40.57

6

SCREW SET

16016-HP1-671

Unavailable

7

ARM SET, LINK

16018-HP1-671

Unavailable

8

VALVE SET, HOT STARTER

16019-HP1-671

Unavailable

9

DIAPHRAGM SET, PUMP

16021-HP1-671

Unavailable

10

LEVER SET, STARTER This part replaces 16025-HP1-671.

16025-HP1-672

$27.71

10

LEVER SET, STARTER

16025-HP1-672

$27.71

11

SCREW SET

16028-HP1-671

Unavailable

12

ARM SET, PUMP

16031-HM3-L00

$76.07

13

PLATE SET, STAY

16038-HP1-671

$9.69

14

VALVE SET, STARTER This part replaces 16046-HP1-671.

16046-HP1-672

$41.22

14

VALVE SET, STARTER

16046-HP1-672

$41.22

15

SENSOR SET, THROTTLE

16060-HP1-671

Unavailable

16

HEATER ASSY.

16070-HP1-671

Unavailable

17

O-RING (1.3X2.8)

16075-GHB-630

$1.93

18

O-RING (1.3X4.3)

16075-GHB-640

$2.69

19

SCREW-WASHER

16080-HC0-003

$3.95

20

NUT, HEX.

16096-HC0-003

$3.95

21

CARBURETOR ASSY. (QA16A B) This part replaces 16100-HP1-672.

16100-HP1-673

$467.12

21

CARBURETOR ASSY. (QA16A B)

16100-HP1-673

$467.12

22

SCREW

16108-MW0-750

$2.32

23

VALVE, THROTTLE

16111-HP1-671

Unavailable

24

JOINT, CONNECTOR

16145-MZ2-780

$20.05

25

PIN, ARM

16152-HN8-003

$3.90

26

VALVE, FLOAT

16155-HN7-003

$26.51

27

COVER, BODY

16160-HP1-672

Unavailable

28

GASKET, FLOAT CHAMBER

16163-MEA-671

$21.27

29

HOLDER, NEEDLE JET

16165-HP1-671

Unavailable

30

HOLDER, JET

16168-HC4-003

$9.70

31

COLLAR

16172-HP1-671

Unavailable

32

COLLAR, SETTING

16172-KEB-610

$3.35

33

SCREEN, FUEL STRAINER

16176-HP1-671

Unavailable

34

TUBE

16198-HP1-671

Unavailable

35

TUBE

16199-HP1-671

Unavailable

36

VALVE ASSY., AIR CUT

16510-MZ2-650

$83.13

37

SCREW, PAN (4X12)

93500-04012-0H

$0.90

37

SCREW, PAN (4X12) This part replaces 93500-04012-1H.

93500-04012-0H

$0.90

38

SCREW, PAN (4X14)

93500-04014-0H

$0.82

38

SCREW, PAN (4X14) This part replaces 93500-04014-1H.

93500-04014-0H

$0.82

39

SCREW-WASHER (4X12)

93892-04012-08

$0.75

39

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$0.75

40

CLIP, TUBE (B7)

95002-02079

$1.10

41

CLIP, TUBE (B10)

95002-02109

$1.35

42

BULK HOSE, VACUUM (3.5X1000) (3.5X400)

95005-35001-50M

$13.55

43

BULK HOSE, VACUUM (5X1000) (5X140)

95005-50001-50M

$10.58

44

JET, MAIN (#118)

99101-357-1180

$9.24

45

JET, SLOW (#48)

99104-HP1-0480

Unavailable

46

JET, SLOW AIR (#150)

99108-MW0-1502

Unavailable

47

JET, BY-STARTER (#72)

99112-HC4-0720

Unavailable
