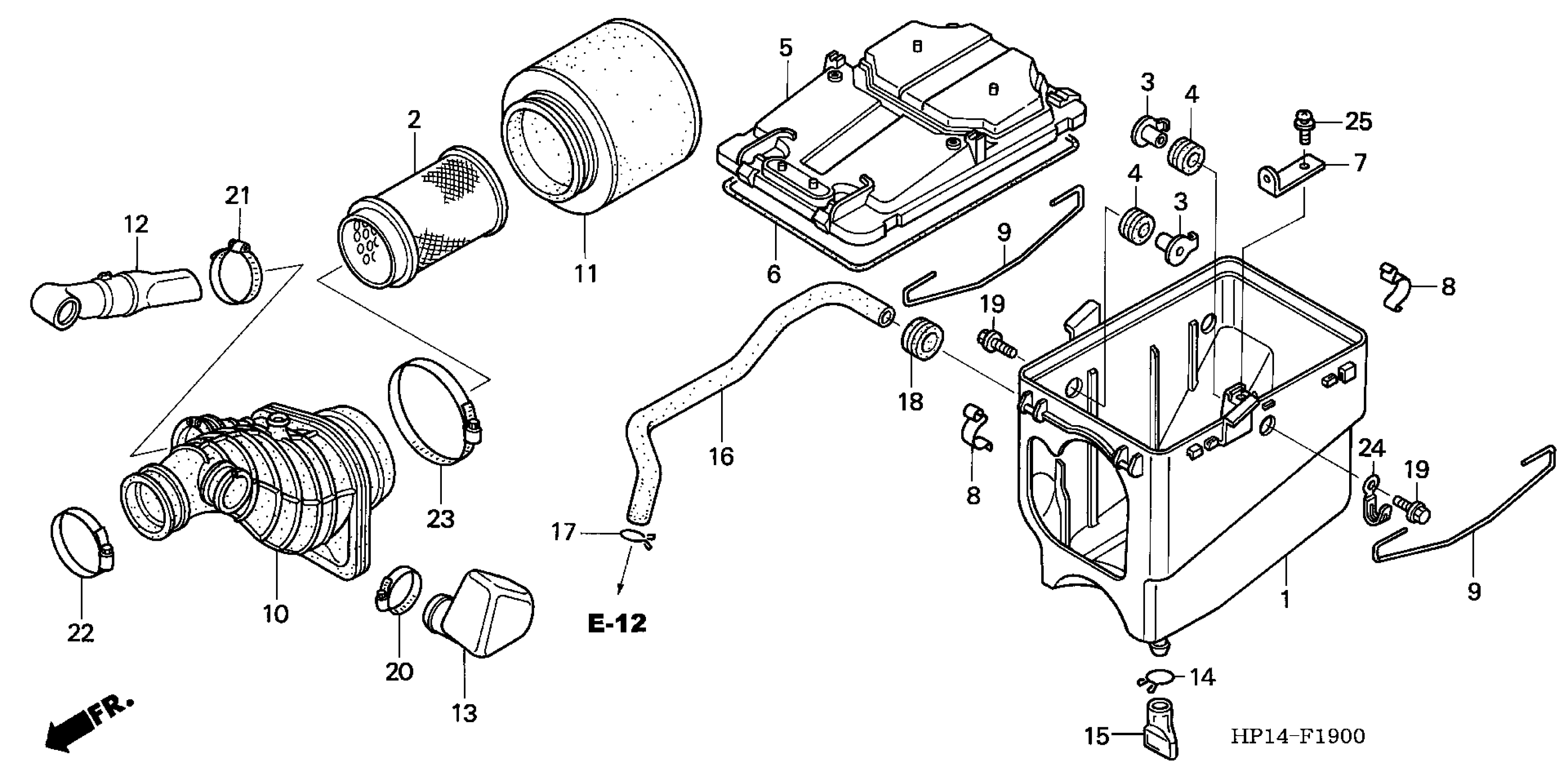

Honda TRX450RA (05) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE300-5A100001 TO 1HFTE300-5A199999 AIR CLEANER ('04,'05) Diagram

HOUSING, AIR CLEANER

17210-HP1-000

$37.46

BODY, AIR CLEANER

17211-HP1-000

$24.37

NUT, AIR CLEANER HOUSING

17212-HP1-000

$12.12

RUBBER, AIR CLEANER MOUNTING

17213-HP1-000

$6.39

LID, AIR CLEANER HOUSING

17217-HP1-000

$11.71

SEAL, AIR CLEANER

17219-HP1-000

$5.80

STAY, AIR CLEANER ELEMENT

17221-HP1-000

$3.38

SPRING, AIR CLEANER HOUSING LID (TOYO)

17223-HB3-003

$7.04

SPRING, AIR CLEANER HOUSING LID

17223-HM8-000

$1.65

SPRING, AIR CLEANER HOUSING LID

17223-HN8-000

$3.95

TUBE, AIR CLEANER CONNECTING

17253-HP1-000

$97.99

ELEMENT, AIR CLEANER

17254-HP1-000

$20.19

DUCT, SNORKEL

17259-HP1-000

$20.97

RESONATOR

17264-HP1-000

$8.62

CLIP, BREATHER TUBE

17316-611-000

$8.28

TUBE, DRAIN This part replaces 17358-HA0-680.

17358-HM8-000

$4.60

TUBE, DRAIN

17358-HM8-000

$4.60

TUBE, BREATHER

17366-HP1-000

$10.19

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

GROMMET, RR. FENDER

80102-KFJ-900

$4.61

BOLT, FLANGE (6X18) (NSHF)

90004-GHB-640

$2.67

BAND, AIR CLEANER CONNECTING TUBE (42)

90642-HP1-000

$4.35

BAND, CONNECTING TUBE (54)

90654-HM8-A60

$6.58

BAND, AIR CONNECTING TUBE (70)

90670-HN8-000

$6.36

BAND, AIR CONNECTING TUBE (96)

90696-HN2-830

$5.15

CLIP (2X60)

91410-679-000

$9.04

SCREW-WASHER (5X12)

93893-05012-08

$1.22
