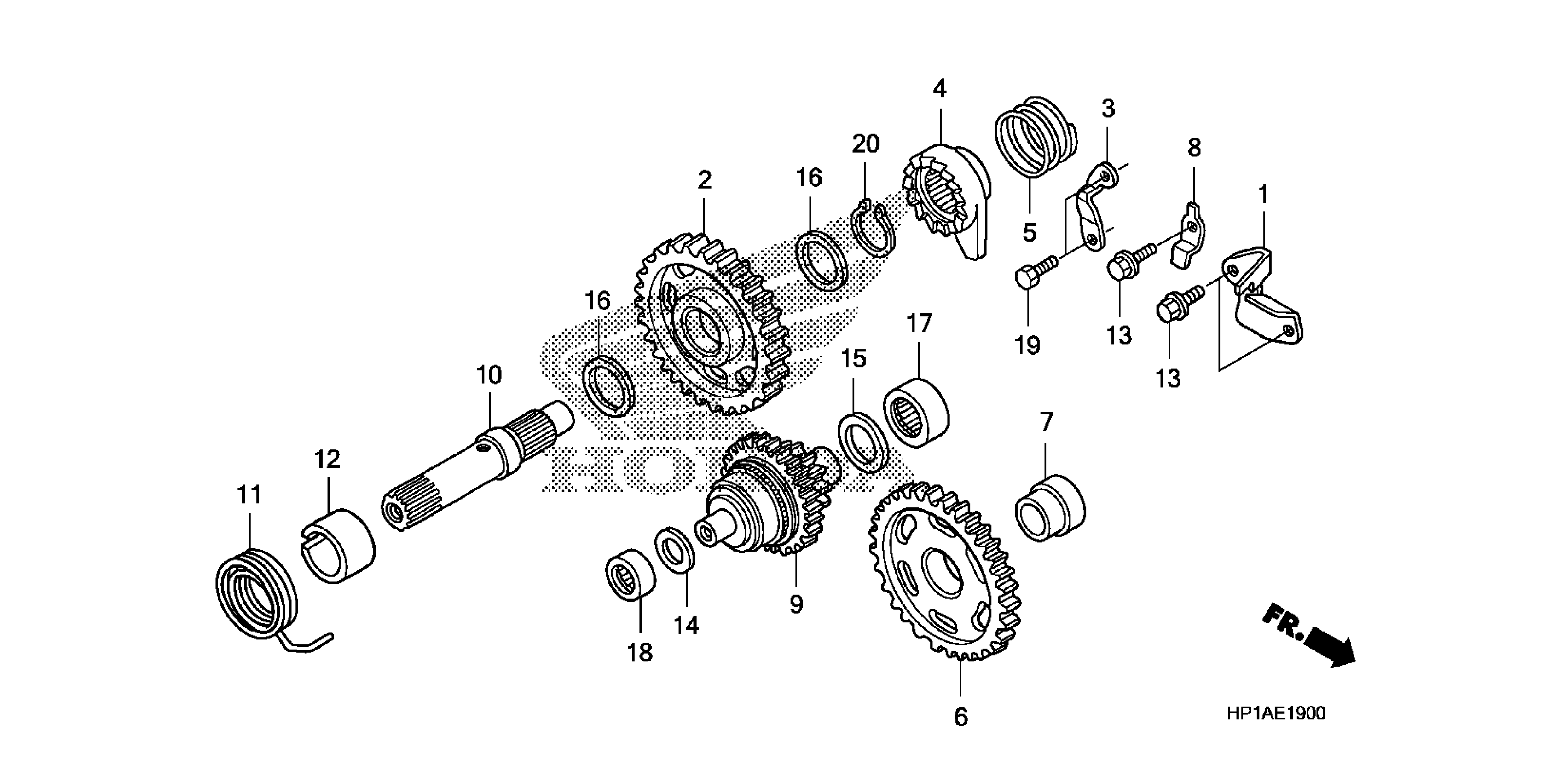

Honda TRX450R3A (09) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE32E-9K200001 TO JH2TE32E-9K299991 KICK STARTER SPINDLE Diagram

PLATE, OIL GUIDE

15201-HP1-600

$8.75

PINION, KICK STARTER (28T)

28211-HP1-670

$109.33

PLATE, KICK STOPPER

28215-HP1-670

$6.45

RATCHET, KICK STARTER

28221-HP1-670

$53.66

SPRING, KICK STARTER RATCHET

28223-HP1-670

$3.74

GEAR, KICK STARTER IDLE (31T)

28231-HP1-670

$70.32

COLLAR, KICK STARTER IDLE GEAR

28232-HP1-840

$8.57

PLATE, KICK STARTER IDLE STOPPER

28233-HP1-840

$4.66

GEAR, KICK STARTER FIRST IDLE (25T/13T)

28240-HP1-840

$194.07

SPINDLE, KICK STARTER

28251-HP1-840

$98.34

SPRING, KICK STARTER RETURN

28261-HP1-840

$10.52

COLLAR, KICK STARTER SPRING

28282-HP1-840

$10.43

BOLT, FLANGE (6X14) (NSHF)

90004-GHB-620

$3.42

WASHER, THRUST (14MM) (NA USE ALT:90451-PC9-000)

90451-035-900

Unavailable

WASHER B, THRUST (22MM) (BLUE)

90455-ML7-000

$4.85

WASHER, THRUST (20MM)

90554-728-940

$6.07

BEARING, NEEDLE (22X29X10)

91007-HP1-671

$9.55

BEARING, NEEDLE (14X20X12) (NTN)

91105-KN7-671

$6.55

BOLT, HEX. (6X16)

93301-06016-0A

$1.49

CIRCLIP, OUTER (19MM)

94510-19000

$1.49
