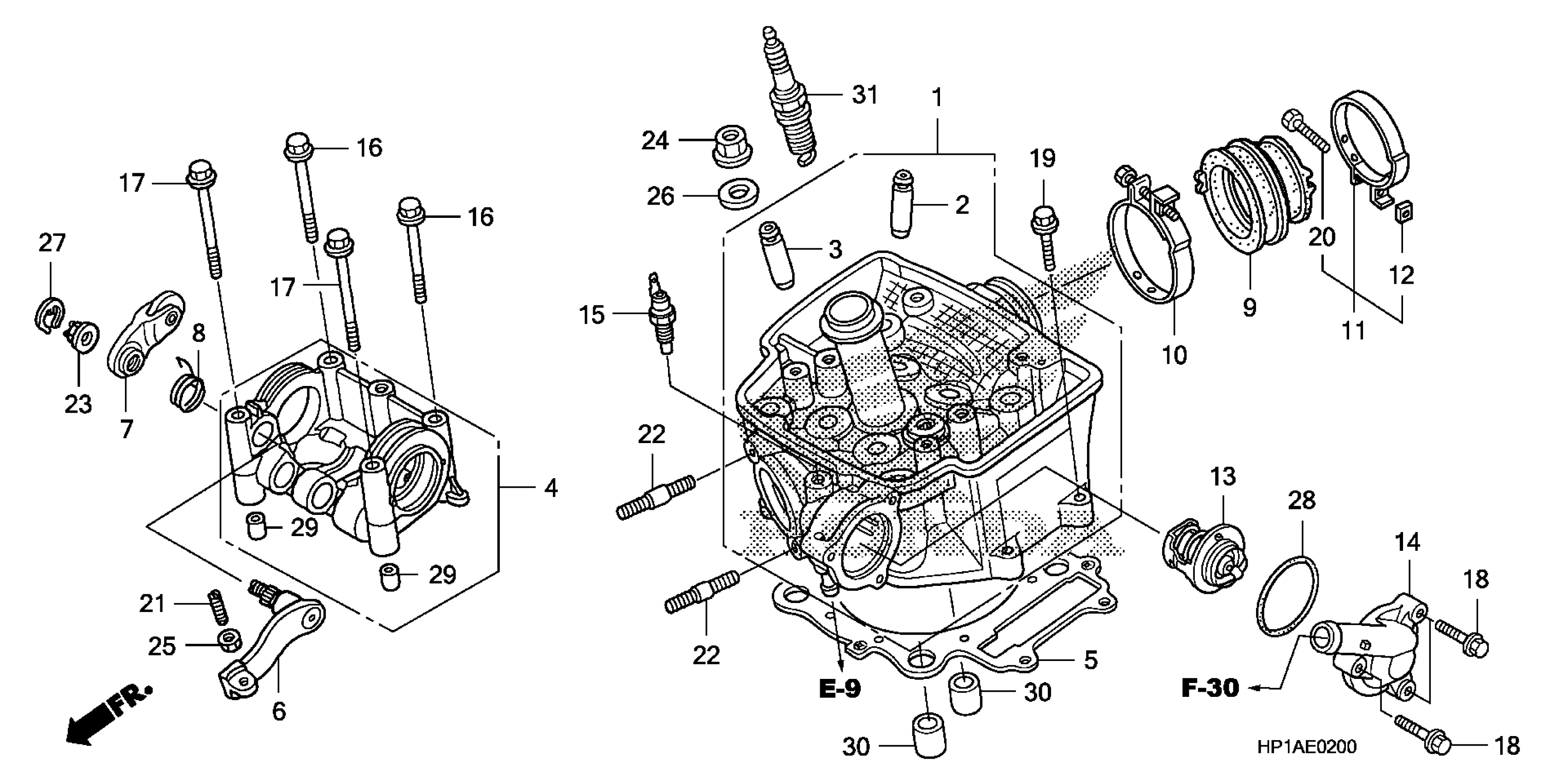

Honda TRX450R3A (09) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE32E-9K200001 TO JH2TE32E-9K299991 CYLINDER HEAD Diagram

CYLINDER HEAD

12200-HP1-600

$542.70

GUIDE, VALVE (OVER SIZE)

12204-MEB-P00

$16.96

GUIDE, EX. VALVE (O.S.)

12205-MEB-P00

$15.97

HOLDER, CAMSHAFT

12240-HP1-670

$138.86

GASKET, CYLINDER HEAD

12251-MEY-671

$50.71

ARM, DECOMPRESSION LIFTER

14120-MEB-770

$154.97

SLIPPER, DECOMPRESSION

14130-MEN-670

$124.84

SPRING, DECOMPRESSION ARM

14133-MEB-670

$1.52

INSULATOR, CARBURETOR

16210-MEB-670

$14.02

BAND, INSULATOR

16218-MCA-000

$7.30

BAND B, INSULATOR

16218-MCJ-000

$8.76

NUT, SQUARE (5MM)

16222-MV4-300

$2.15

THERMOSTAT ASSY.

19300-HP1-671

$53.82

COVER, THERMOSTAT

19321-HP1-670

$26.75

THERMO UNIT (DENSO)

37750-MAZ-003

$38.98

BOLT, FLANGE (6X65)

90002-MEB-770

$3.33

BOLT, FLANGE (6X72)

90003-MEB-770

$3.33

BOLT, FLANGE (6X25) (NSHF)

90004-GHB-670

$2.89

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.33

BOLT, RECESSED (5X28)

90005-MCJ-000

$1.51

SCREW, TAPPET ADJUSTING

90012-MEB-670

$2.98

BOLT, STUD (8X32)

90034-HP1-670

$2.39

NUT, SPECIAL (8MM)

90201-MEB-670

$11.26

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.59

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.59

NUT, FLANGE (10MM)

94050-10000

$1.59

NUT, TAPPET ADJUSTING

90206-KM3-000

$1.49

WASHER, PLAIN (10MM)

90453-KCY-670

$4.15

CIRCLIP, SPECIAL (12MM)

90603-MEB-670

$2.87

O-RING (45.5X2.5) (ARAI)

91373-733-003

$4.03

PIN, DOWEL (8X10)

94301-08100

$2.25

PIN, DOWEL (14X20)

94301-14200

$2.28

SPARK PLUG (IFR8H11) (NGK) | (Optional).

31918-MEB-671

$16.03

SPARK PLUG (VK24PRZ11) (DENSO) | (Optional).

31918-MEB-672

$14.23

SPARK PLUG (VK22PRZ11) (DENSO)

98079-5715U

$34.05

SPARK PLUG (IFR7L11) (NGK)

98079-5717U

$18.24
