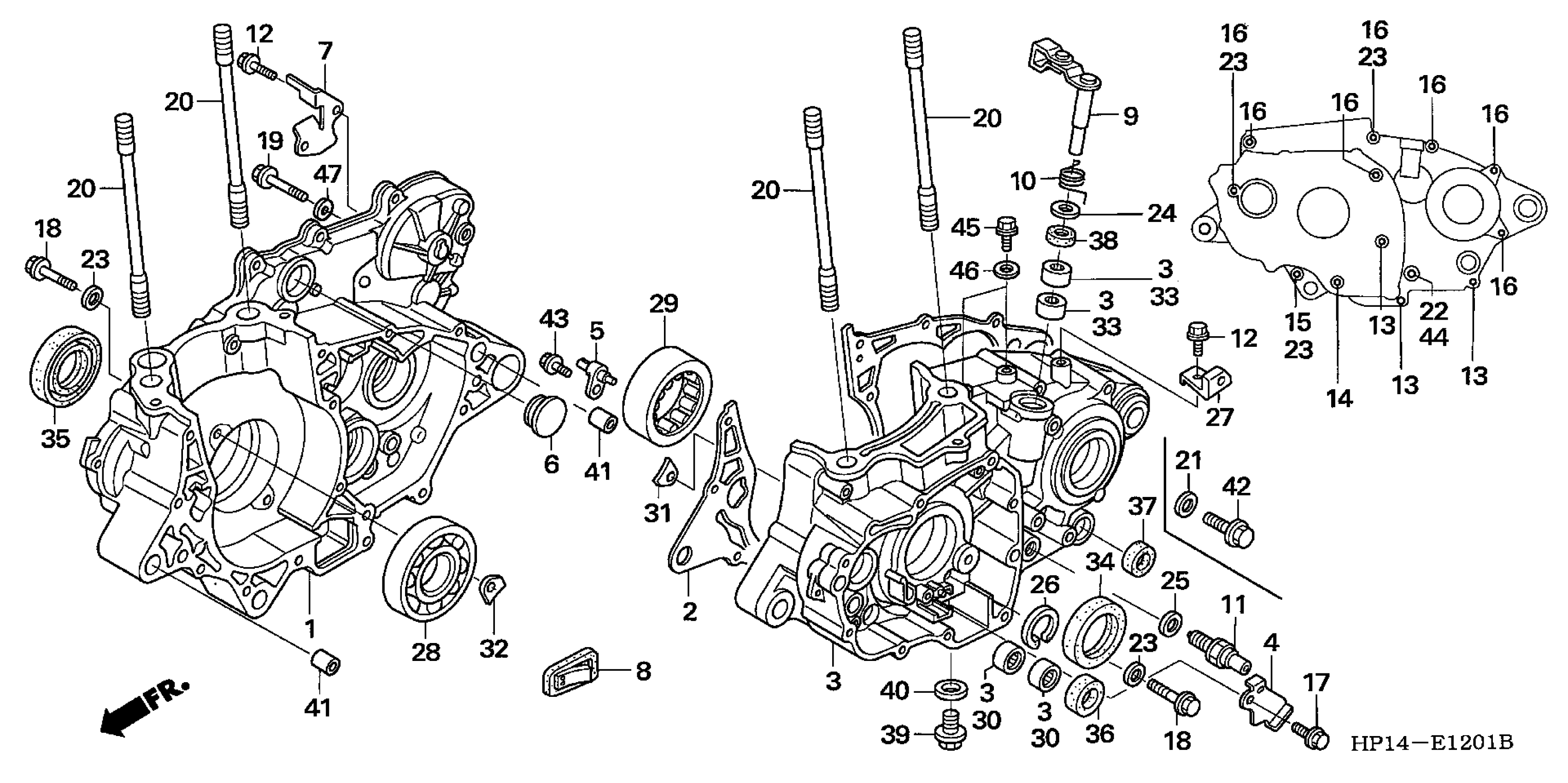

Honda TRX450R3A (08) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE32E-8K100001 TO JH2TE32E-8K100000 CRANKCASE ('06-) Diagram

#

Description
Price

1

CRANKCASE, R.

11100-HP1-600

$458.02

2

GASKET, CRANKCASE

11191-HP1-600

$21.82

3

CRANKCASE, L.

11200-HP1-600

$465.10

4

PLATE, CAM CHAIN GUIDE

11206-HP1-600

$3.00

5

JET, PISTON (#80)

11210-HP1-600

$33.49

6

CAP (30MM)

11333-HP1-841

$12.20

8

VALVE, REED

18601-MBW-003

$17.16

9

LEVER, CLUTCH

22810-HP1-600

$48.98

10

SPRING, CLUTCH LEVER

22815-HP1-600

$5.22

12

BOLT, FLANGE (6X14) (NSHF)

90004-GHB-620

$3.42

13

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$4.07

14

BOLT, FLANGE (6X50) (NSHF)

90004-GHB-730

$4.25

15

BOLT, FLANGE (6X65) (NSHF)

90004-GHB-760

$5.57

16

BOLT, FLANGE (6X75) (NSHF)

90004-GHB-780

$3.12

17

BOLT, FLANGE (6X12)

90005-GHB-610

$2.52

18

BOLT, FLANGE (6X22)

90017-HP1-600

$1.49

19

BOLT, FLANGE (7X28)

90017-MEY-670

$2.62

20

BOLT, STUD (12X148)

90031-MEB-670

$5.34

21

WASHER (10MM) This part replaces 90403-ML4-610.

90403-ML4-611

$6.21

22

WASHER, SEALING (8MM)

90474-333-000

$3.30

23

WASHER, SEALING (6MM)

90488-425-000

$2.28

24

WASHER, BRAKE ARM

90525-GC4-700

$2.34

26

CIRCLIP, SPECIAL (33MM)

90604-MEB-670

$4.40

27

CLAMP BASE, PARKING CABLE

90620-HP1-600

$11.69

28

BEARING, RADIAL BALL (30X76X19)

91001-HP1-601

$53.75

29

BEARING, SPECIAL ROLLER

91002-HP1-601

$45.77

30

BEARING, NEEDLE (9MM) (NTN)

91006-HA0-003

$13.32

31

PLATE., L. BEARING SETTING

91011-HP1-600

$6.70

32

PLATE., R. BEARING SETTING

91012-HP1-600

$6.70

33

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$8.68

33

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$8.68

34

OIL SEAL (38X52X7) (ARAI)

91201-MEB-671

$13.13

35

OIL SEAL (39X60X7.5)

91202-HP1-601

$20.33

36

OIL SEAL (20X33X7.5)

91203-HP1-601

$10.74

37

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.81

38

OIL SEAL (12X18X3) (ARAI)

91205-MEB-671

$3.45

39

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

40

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

41

PIN, DOWEL (14X20)

94301-14200

$2.28

42

BOLT, FLANGE (10X16)

95701-10016-00

$1.49

43

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

44

BOLT, FLANGE (8X65)

96300-08065-00

$2.39

45

BOLT, FLANGE (6X10) (NSHF)

90004-GHB-600

$3.10

46

WASHER, SEALING (6.5MM)

90481-GW3-000

$1.84

47

WASHER, SEALING (7MM)

90447-KE1-000

$2.66
