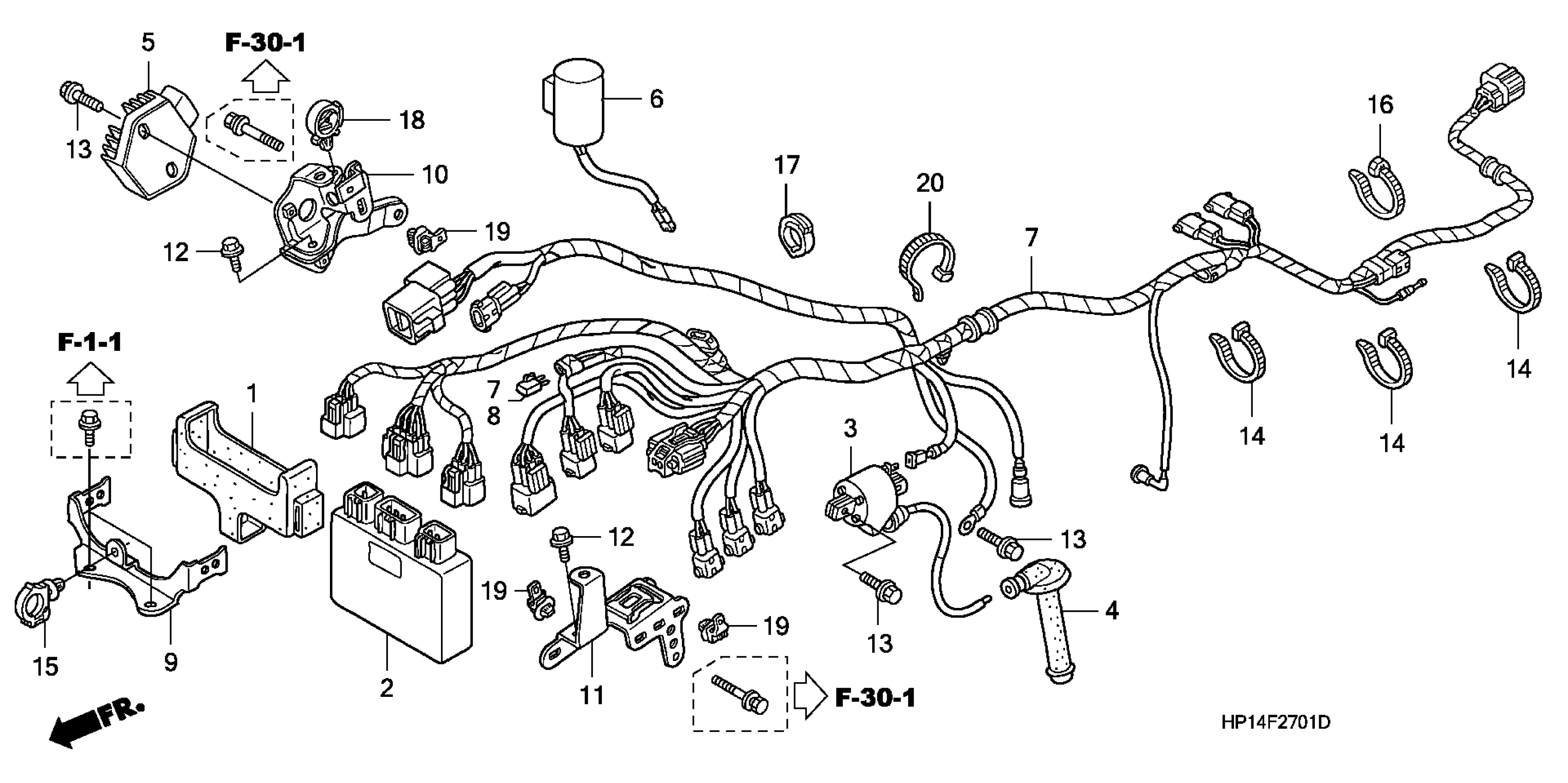

Honda TRX450R3A (07) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE32E-7K000001 TO JH2TE32E-7K099999 WIRE HARNESS ('06-) Diagram

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-HP1-600

$7.54

MODULE, IGNITION CONTROL (CDI)

30410-HP1-841

$444.61

COIL, IGNITION

30500-HP1-003

$69.21

CAP ASSY., NOISE SUPPRESSOR

30700-MEB-671

$50.87

RECTIFIER, REGULATOR

31600-KTB-003

$222.89

CONDENSER UNIT

31700-HP1-841

$171.05

WIRE HARNESS

32100-HP1-840

$435.75

STAY, C.D.I.

50128-HP1-600

$7.05

STAY, R. SHROUD

61101-HP1-900

$14.56

STAY, L. SHROUD

61102-HP1-900

$9.25

BOLT, FLANGE (6X12) (NSHF)

90004-GHB-610

$2.97

BOLT, FLANGE (6X18) (NSHF)

90004-GHB-640

$2.92

BAND, WIRE

90650-HP1-000

$2.46

CLAMP, HARNESS

90652-HC4-003

$5.95

BAND, HARNESS

90652-HP1-000

$2.93

CLIP, HARNESS This part replaces 90684-ZA0-600.

90684-ZA0-601

$2.93

CLIP, HARNESS

90684-ZA0-601

$2.93

CLIP, CONNECTOR (BLACK)

91565-SEL-003

$3.67

BAND, WIRE

90650-KW3-000

$4.48
