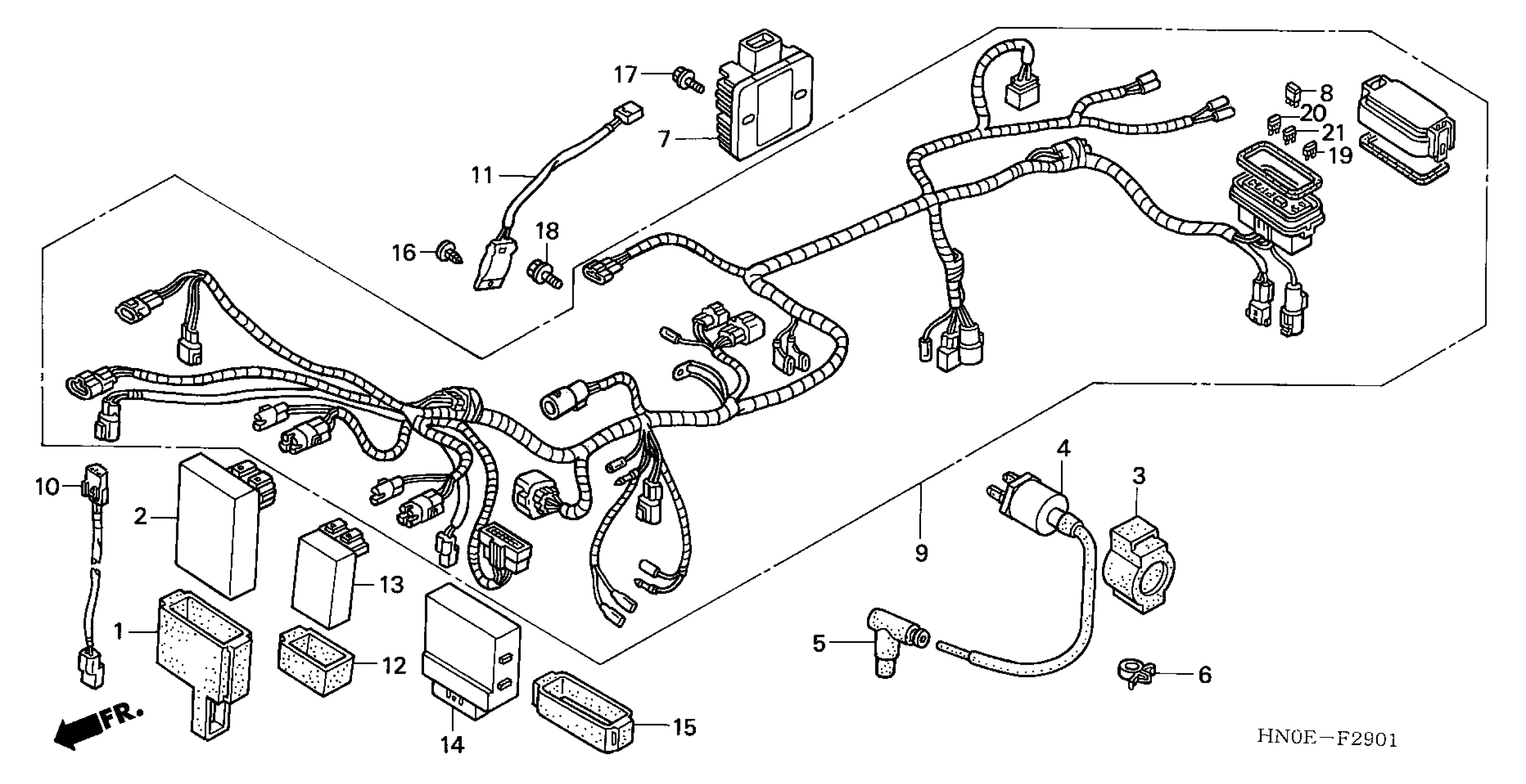

Honda TRX450FMA (04) FOURTRAX FOREMAN S, USA, VIN# 478TE220-44500001 WIRE HARNESS (TRX450FM) Diagram

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-HA7-670

$10.00

MODULE, IGNITION CONTROL (CDI)

30410-HN0-A01

$119.45

SUSPENSION, IGNITION COIL

30506-KV3-771

$11.89

COIL, IGNITION This part replaces 30510-HM7-003.

30510-KJ2-405

$86.48

COIL, IGNITION

30510-KJ2-405

$86.48

CAP ASSY. This part replaces 30700-KY4-900.

30700-KY4-901

$29.46

CLIP, IGNITION WIRE (8MM)

30701-883-000

$2.91

RECTIFIER ASSY., REGULATOR

31600-HN0-671

$102.83

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-HN0-670

Unavailable

SUB-HARNESS, FR. FINAL CLUTCH

32101-HN0-670

Unavailable

SWITCH ASSY., THERMOSTAT

35250-HN4-670

$48.08

CUSHION, FAN CONTROL UNIT (TATEISHI)

38401-HC4-004

Unavailable

CONTROL UNIT, FAN

38710-HM7-004

$230.73

UNIT, FR. FINAL CLUTCH CONTROL

38921-HN0-670

Unavailable

SUSPENSION, CONTROL UNIT

38922-HN0-670

$5.10

CLIP, WASHER MOUTH

91504-SD5-901

$4.39

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (15A) (Honda Code 4853438)

98200-41500

$1.49

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.67
