Description

Price

1

BEARING SET, TAPER ROLLER (17X40X13.25) (KOYO) This part replaces 06912-HN2-000.

06912-HN2-010

$22.01

1

BEARING SET, TAPER ROLLER (17X40X13.25) (KOYO)

06912-HN2-010

$22.01

2

JOINT ASSY., YOKE

40200-HM7-610

$73.63

3

JOINT, YOKE This part replaces 40210-HM5-731.

40210-HN7-010

$60.66

3

JOINT, YOKE

40210-HN7-010

$60.66

4

SPRING, PROPELLER SHAFT

40215-HN0-671

$3.22

5

HITCH, TRAILER

50810-HN2-000

$109.77

6

SWINGARM ASSY., RR.

52100-HN0-670

Unavailable

7

BOOT, JOINT

52101-HN0-A00

$28.24

8

GREASE (SHELL 6459) This part replaces 52102-HN2-P00.

52102-HN2-P01

$6.86

8

GREASE (SHELL 6459)

52102-HN2-P01

$6.86

9

STAY, SKID PLATE

52190-HN5-670

$4.00

10

PIPE, R. HOUSING

52210-HN0-670

Unavailable

11

PIPE ASSY., L. HOUSING

52300-HN0-670

$156.34

12

BOLT, R. SWINGARM PIVOT

90121-HN2-000

$16.01

13

BOLT, L. SWINGARM PIVOT

90122-HN2-000

$18.73

14

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

15

CAP, LOCK NUT

90312-HM5-670

$11.71

16

NUT, SWINGARM PIVOT LOCK

90355-469-000

$17.54

17

BEARING, RADIAL BALL (32X58X13UU) (KOYO)

91055-HN5-681

$19.80

18

OIL SEAL (42X58X10) (ARAI)

91255-HA0-681

$20.36

19

SEAL A, RUBBER

91302-HM7-003

$7.90

20

O-RING (75X3.2) (NOK)

91320-HM7-702

$2.83

21

BAND, AIR CLEANER CONNECTING TUBE (74)

95018-74250

$6.78

22

BAND, AIR CLEANER CONNECTING TUBE (90)

95018-90250

$5.46

23

BOLT, FLANGE (10X20) BOLT, FLANGE (10X16)

95701-10020-00

$2.23

24

BOLT, FLANGE (10X60)

95701-10060-00

$2.03

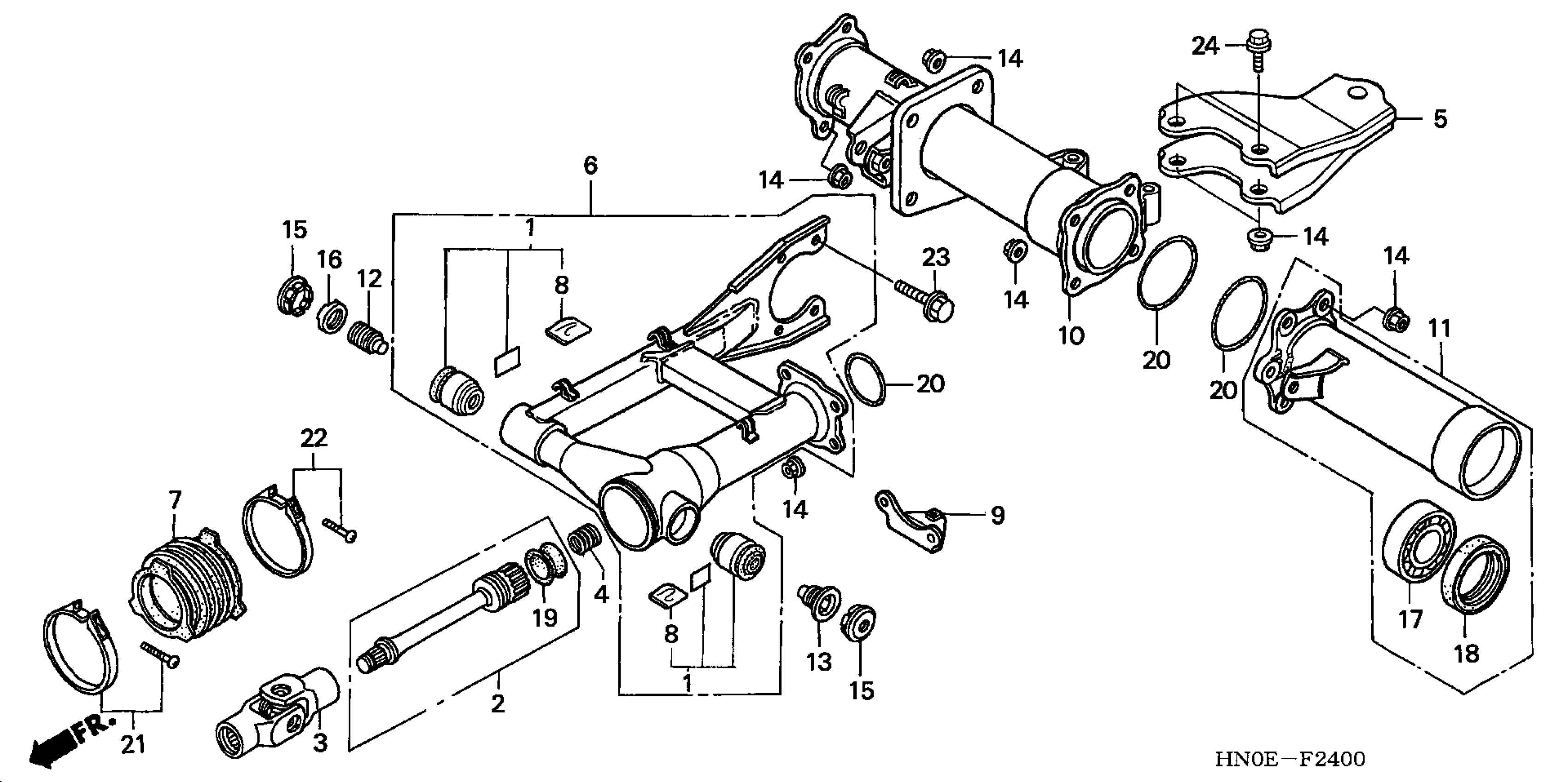

Honda TRX450FMA (04) FOURTRAX FOREMAN S, USA, VIN# 478TE220-44500001 SWINGARM Diagram
