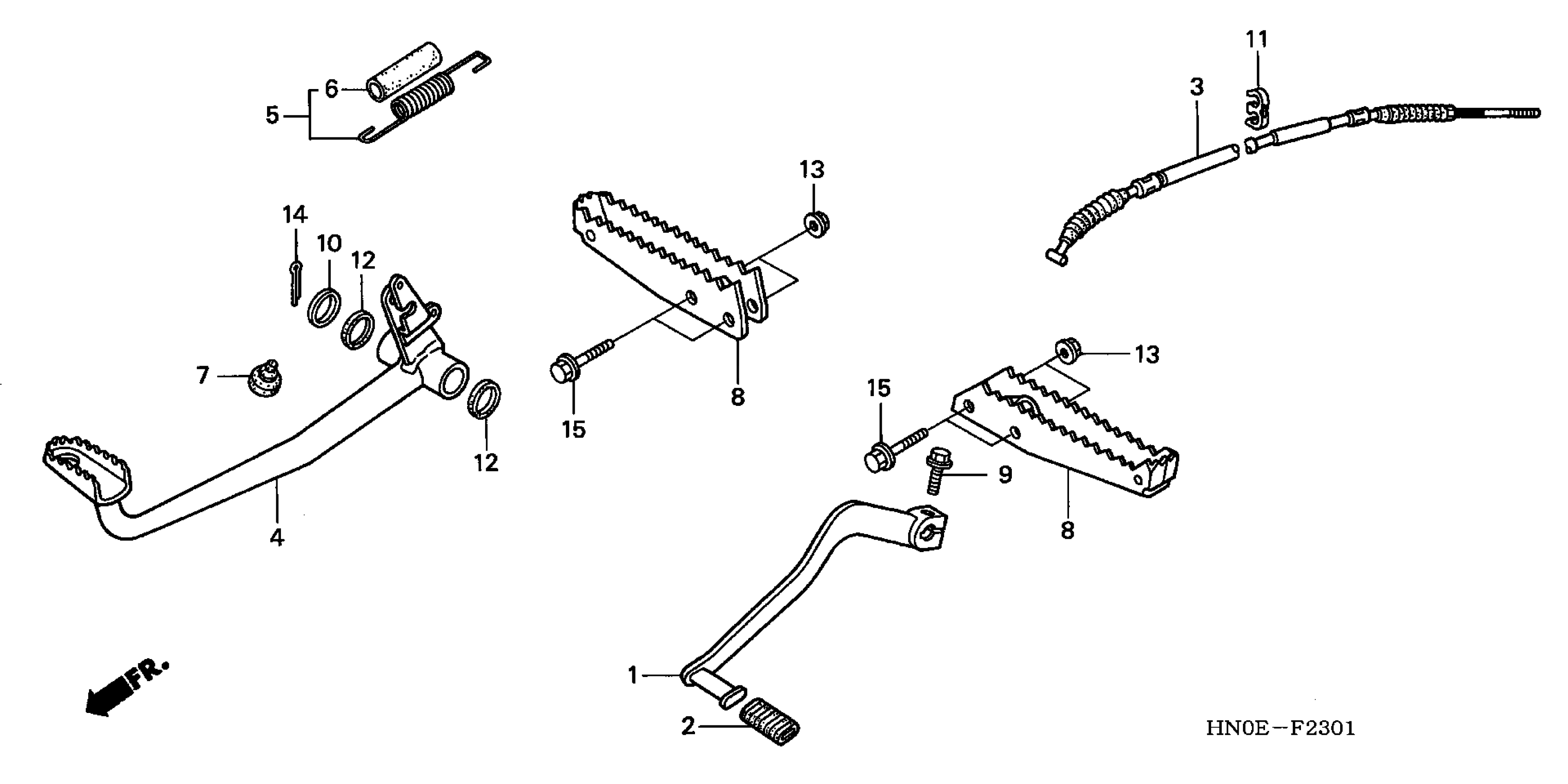

Honda TRX450FMA (04) FOURTRAX FOREMAN S, USA, VIN# 478TE220-44500001 STEP (TRX450FM) Diagram

PEDAL, GEARSHIFT

24700-HM7-A00

$58.27

RUBBER, GEARSHIFT PEDAL

24781-371-000

$4.77

CABLE, FOOT BRAKE

43470-HN0-A00

$9.88

PEDAL, BRAKE

46500-HM7-000

Unavailable

SPRING ASSY., RR. BRAKE PEDAL

46513-HM7-000

$13.76

TUBE, BRAKE PEDAL SPRING

46515-HM7-000

$1.88

RUBBER, STAND STOPPER

50505-GA7-730

$2.03

STEP

50610-HM8-000

$14.97

BOLT, FLANGE (6X20)

90118-968-000

$3.93

WASHER (17.5MM)

90512-303-000

$1.61

CLIP, HIGH TENSION CORD (L. SIDE)

90658-ZA0-930

$2.26

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.44

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$0.86

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.94

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.94

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.94

PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)

94201-30450

$0.94

BOLT, FLANGE (8X45)

95801-08045-00

$1.59
