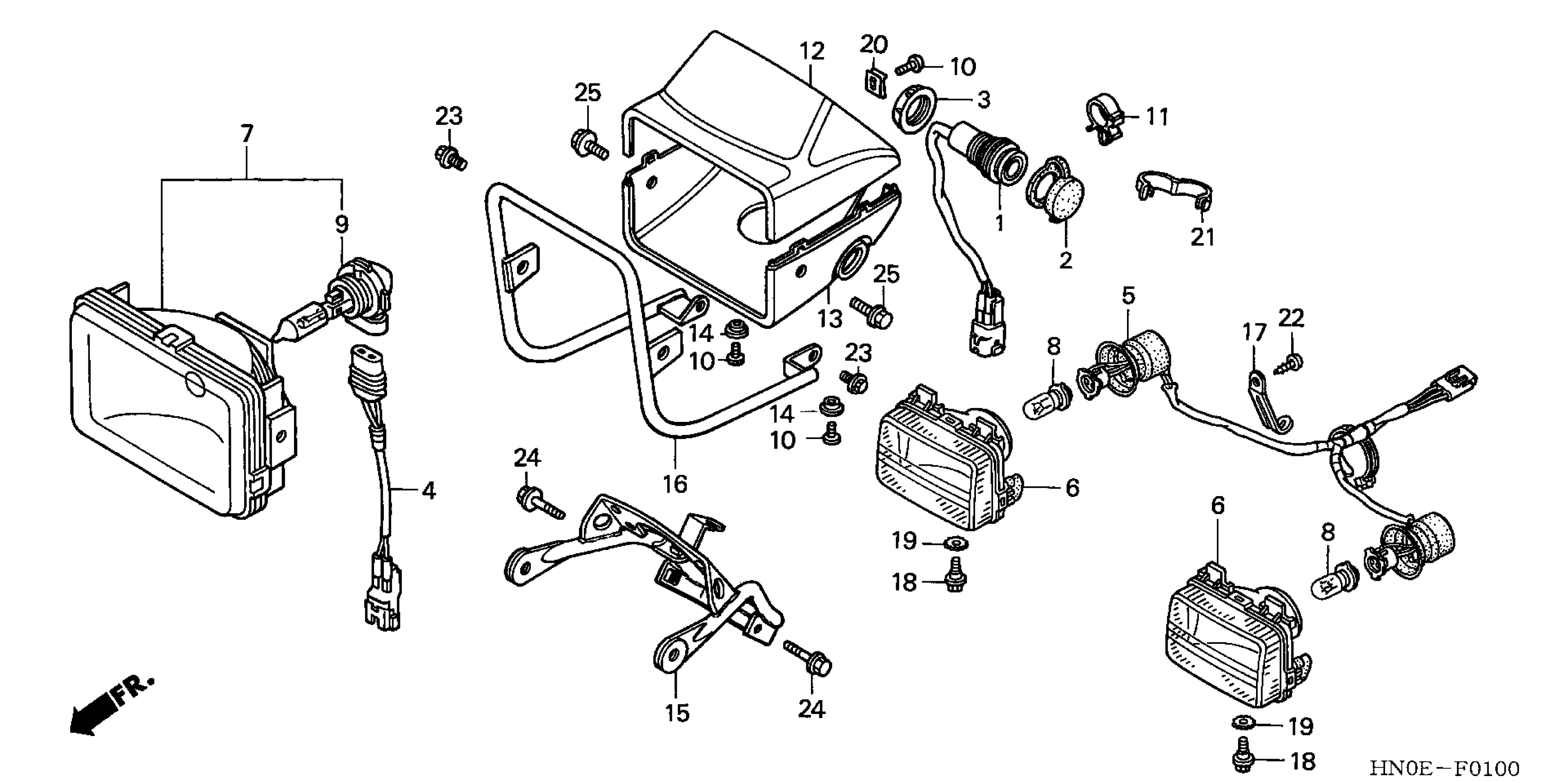

Honda TRX450FMA (04) FOURTRAX FOREMAN S, USA, VIN# 478TE220-44500001 HEADLIGHT Diagram

#

Description
Price

1

SOCKET, ACCESSORY

31651-HN0-A02

$37.59

2

CAP

31652-HN0-A01

$9.09

3

NUT

31653-HN0-A01

$4.22

4

SUB-WIRE, HEADLIGHT

32500-HN0-670

Unavailable

5

SOCKET, HEADLIGHT

33130-HN0-670

$68.71

6

HEADLIGHT UNIT This part replaces 33150-HN0-670.

33150-HN4-671

$120.42

6

HEADLIGHT UNIT

33150-HN4-671

$120.42

7

HEADLIGHT ASSY., ASSIST (12V 45W) (HOBBS)

33150-HN2-000

Unavailable

8

BULB, HEADLIGHT (12V 30/30W) (STANLEY)

34901-GT4-003

$15.78

9

BULB, HEADLIGHT (12V 45W) (HOBBS)

34901-HN2-000

Unavailable

10

SCREW, CROSS-RECESSED HEAD MACHINE

52426-KM4-003

$2.17

11

CLIP, RETURN HOSE This part replaces 53728-SM4-J65.

53729-SS0-003

$7.75

11

CLIP, RETURN HOSE

53729-SS0-003

$7.75

12

CASE, ASSIST HEADLIGHT (UPPER) *NH1* (BLACK)

61301-HN0-A00ZC

$19.24

13

CASE, ASSIST HEADLIGHT (LOWER) *NH1* (BLACK)

61302-HN0-A00ZA

$27.81

14

COLLAR, HEADLIGHT SETTING

61304-HM7-000

$5.22

15

BRACKET, LIGHT CASE

61310-HN0-A00

$308.20

16

GUARD, ASSIST HEADLIGHT

61320-HN0-A00

$135.57

17

CLIP, TUBE

90010-GE0-710

$1.99

18

SCREW, ADJUSTING

90101-HN1-000

Unavailable

19

WASHER, LOCK (6MM)

90307-GJ6-003

$3.16

20

NUT, CLIP (5MM)

90677-KAN-961

$3.79

21

CLIP, CABLE (30MM)

90690-GHB-681

$2.80

22

SCREW, TAPPING (5X12)

93903-25220

$0.83

23

BOLT, FLANGE (6X12)

95701-06012-07

$1.48

24

BOLT, FLANGE (8X16)

95701-08016-07

$1.59

25

BOLT, FLANGE (8X20)

95701-08020-07

$1.70
