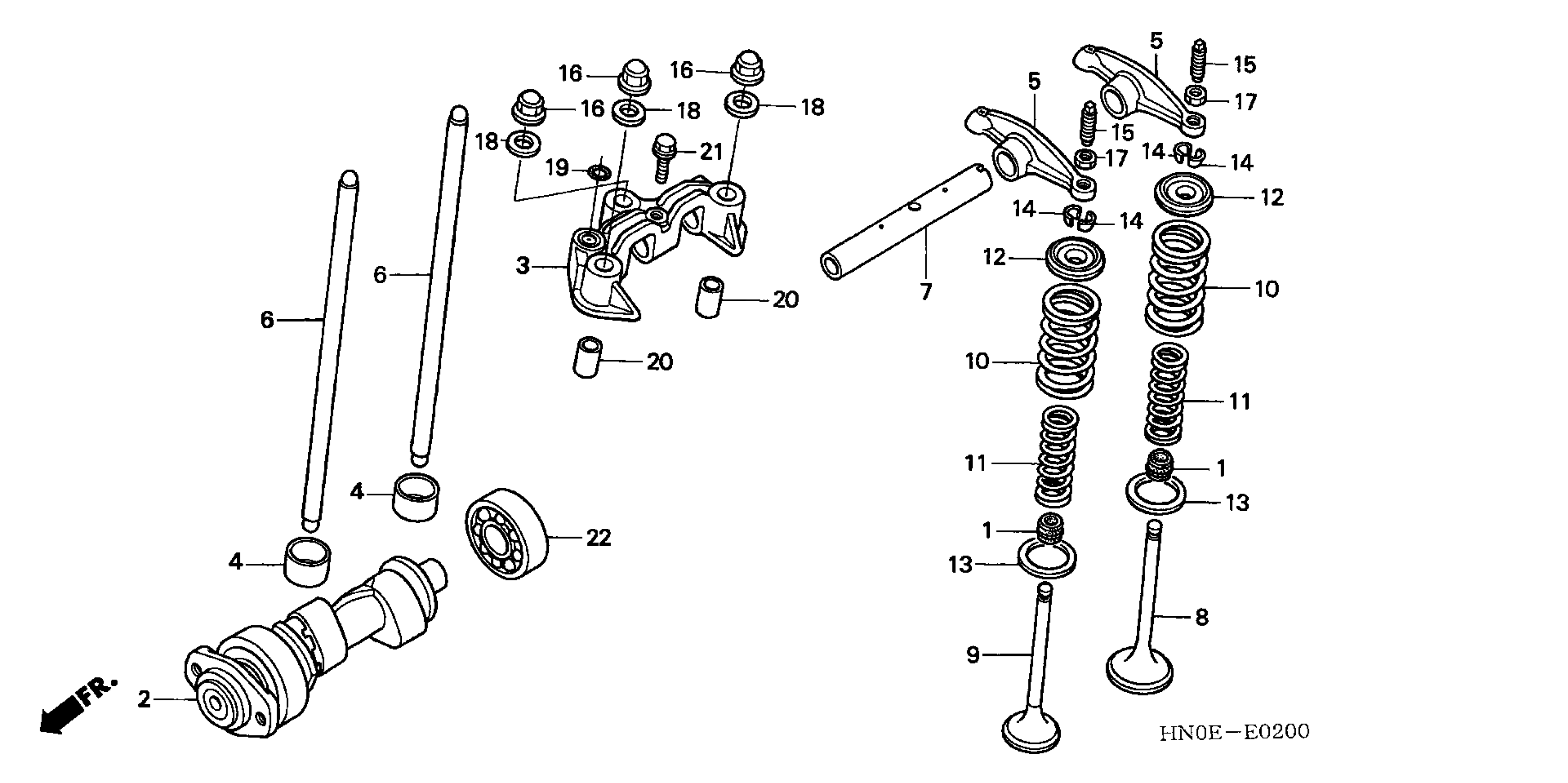

Honda TRX450FMA (04) FOURTRAX FOREMAN S, USA, VIN# 478TE220-44500001 CAMSHAFT Diagram

#

Description
Price

1

SEAL, VALVE STEM (NOK) SEAL, VALVE STEM (ARAI)

12209-KL4-005

$7.81

2

CAMSHAFT

14100-HN0-A00

Unavailable

3

HOLDER, ROCKER ARM

14411-HM7-000

Unavailable

4

FOLLOWER, CAM

14421-HM7-000

$35.38

5

ARM, VALVE ROCKER

14431-HM7-000

Unavailable

6

ROD, PUSH

14440-HM7-010

Unavailable

7

SHAFT, ROCKER ARM

14450-HM7-000

Unavailable

8

VALVE, IN.

14711-HN0-670

$9.16

9

VALVE, EX.

14721-HN0-670

$13.20

10

SPRING, VALVE (OUTER)

14751-HN0-A00

$9.76

11

SPRING, VALVE (INNER)

14761-HM8-000

$6.40

12

RETAINER, VALVE SPRING

14771-KE5-000

$11.72

13

SEAT, VALVE SPRING

14775-HN0-670

$8.68

14

COTTER, VALVE

14781-HA0-770

$3.45

15

SCREW, TAPPET ADJUSTING

90012-426-000

$5.94

16

NUT, FLANGE CAP (10MM)

90201-HA0-000

$6.45

16

NUT, CAP (10MM) This part replaces 90202-HA0-000.

90201-HA0-000

$6.45

17

NUT, TAPPET ADJUSTING

90206-250-000

$2.94

18

WASHER (10MM)

90465-MM9-000

$3.54

19

O-RING (7.7X2.5)

91303-428-003

$1.90

20

PIN A, DOWEL (12X16)

94301-12160

$2.27

21

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55

22

BEARING, RADIAL BALL (6203)

91004-HN0-671

$11.80
