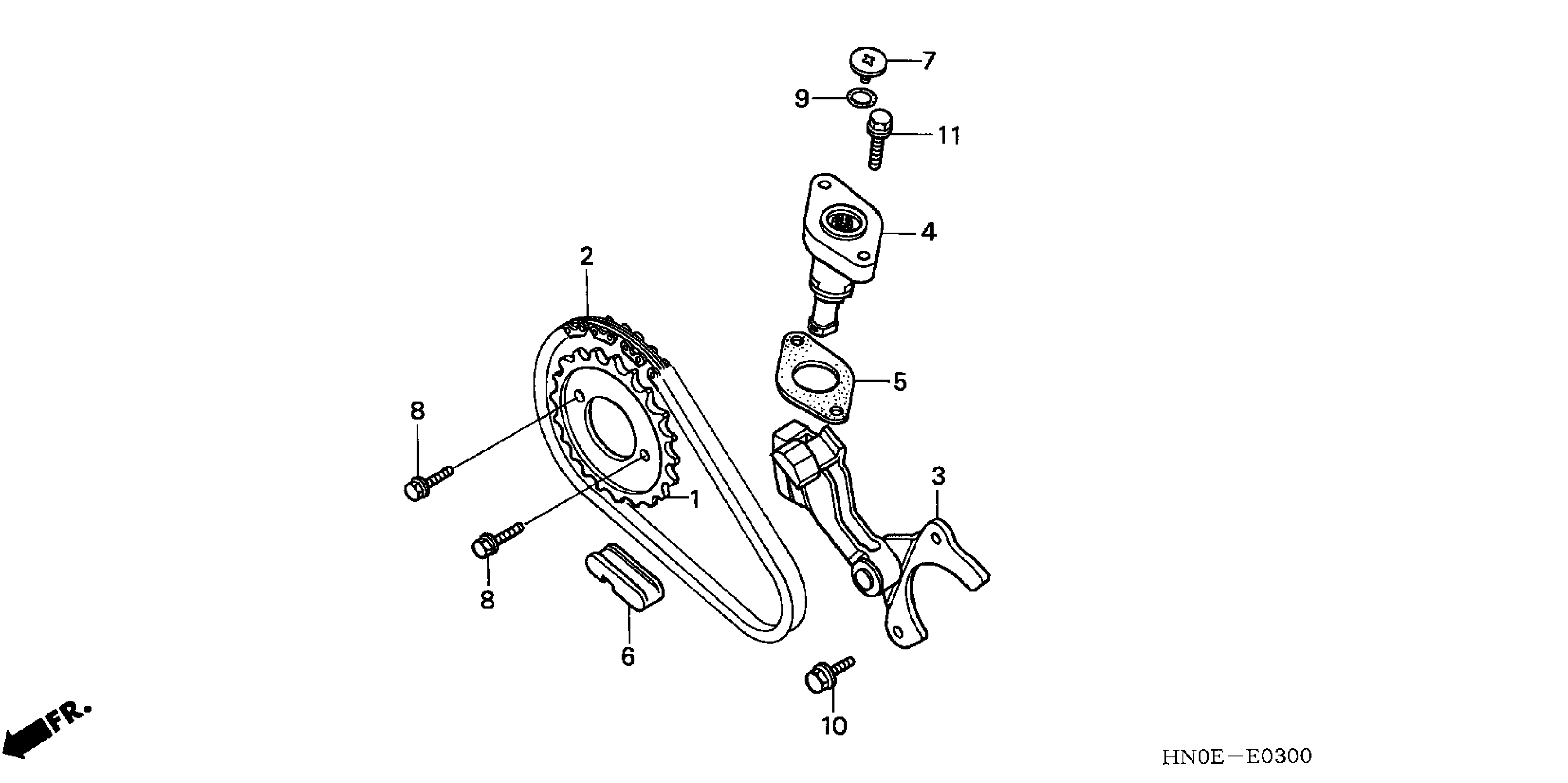

Honda TRX450FMA (04) FOURTRAX FOREMAN S, USA, VIN# 478TE220-44500001 CAM CHAIN Diagram

#

Description

Price

1

SPROCKET, CAM

14321-HM7-000

Unavailable

2

CHAIN, CAM

14401-HM7-003

$197.30

3

TENSIONER, CAM CHAIN

14510-HM7-010

$137.74

4

LIFTER ASSY., TENSIONER

14520-GY6-901

$146.50

5

GASKET, TENSIONER

14523-HM7-000

$3.36

6

GUIDE, CAM CHAIN

14621-HM7-000

$14.77

7

SCREW, PAN (6X6)

90005-KY7-000

$3.24

8

BOLT, FLANGE KNOCK (7X10.5) (Honda Code 1824291)

90082-HA0-000

$1.97

9

O-RING (1.5X9.5)

91306-MG3-000

$2.33

9

O-RING (1.5X9.5) This part replaces 91306-105-690.

91306-MG3-000

$2.33

10

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

11

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
