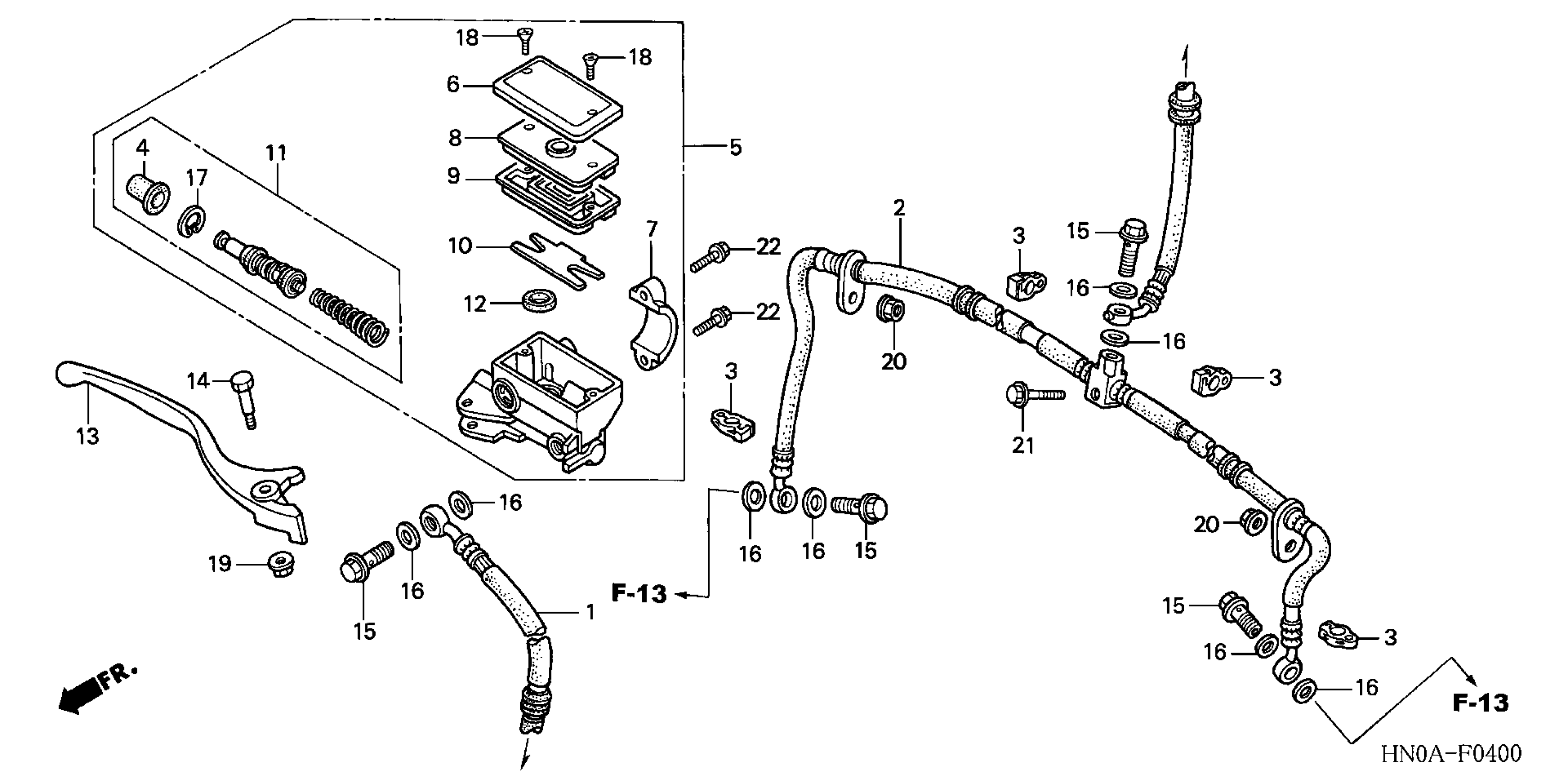

Honda TRX450FMA (02) FOURTRAX FOREMAN S, USA, VIN# 478TE220-24300001 TO 478TE220-24399999 FRONT BRAKE MASTER CYLINDER Diagram

HOSE A, FR. BRAKE

45126-HN0-A21

$49.89

HOSE B, FR. BRAKE

45127-HN0-A21

$47.10

CLIP, BRAKE HOSE

45401-HM5-850

$1.74

BOOT

45504-410-003

$11.17

MASTER CYLINDER SUB-ASSY., FR. BRAKE

45510-HC5-305

$180.95

CAP, MASTER CYLINDER

45513-KE5-026

$38.35

HOLDER, MASTER CYLINDER

45517-MA5-671

$28.72

PLATE, DIAPHRAGM

45518-MB4-671

$11.13

DIAPHRAGM

45520-MA5-672

$16.64

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-HC5-971

$6.21

MASTER CYLINDER SET

45530-HC5-006

$52.29

SEPARATOR

46666-961-013

$7.46

LEVER, R. HANDLE

53175-HA8-680

Unavailable

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

Unavailable

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

WASHER, OIL BOLT

90545-300-000

$5.79

CIRCLIP

90651-MA5-671

$2.38

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

NUT, FLANGE (6MM)

94050-06000

$0.60

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$0.87

BOLT, FLANGE (6X25)

95701-06025-07

$1.79

BOLT, FLANGE (6X22)

96001-06022-07

$1.71
