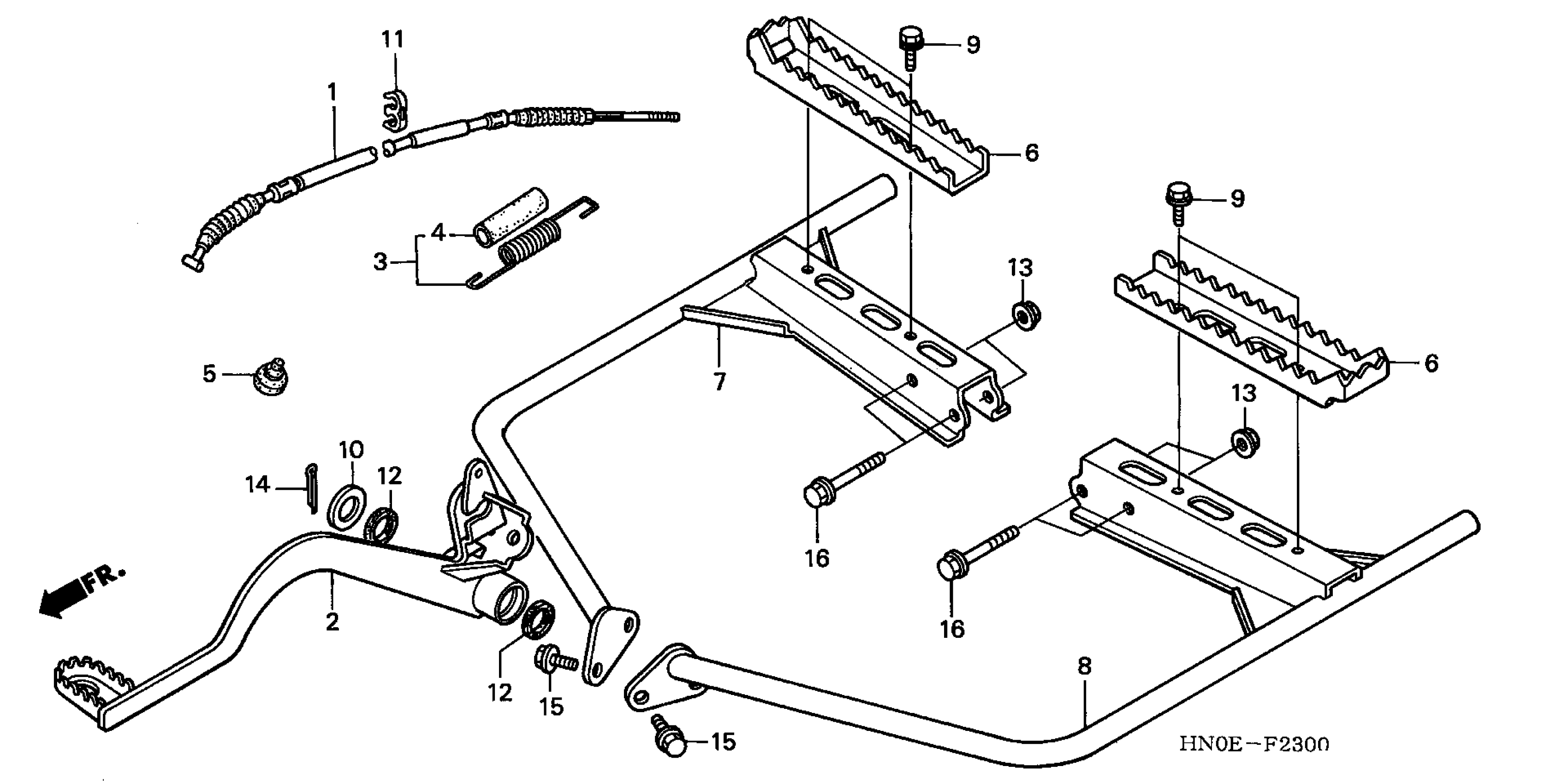

Honda TRX450FEA (04) FOURTRAX FOREMAN ES, USA, VIN# 478TE224-44500001 STEP (TRX450FE) Diagram

CABLE, FOOT BRAKE

43470-HN0-A00

$11.33

PEDAL, BRAKE

46500-HN0-A11

Unavailable

SPRING ASSY., RR. BRAKE PEDAL

46513-HM7-000

$11.69

TUBE, BRAKE PEDAL SPRING

46515-HM7-000

$2.13

RUBBER, STOPPER

47117-196-000

$2.67

STEP This part replaces 50610-HN0-A11.

50610-HN2-000

$37.48

STEP

50610-HN2-000

$37.48

BRACKET, R. STEP

50611-HN0-A10

$199.75

BRACKET, L. STEP

50612-HN0-A10

Unavailable

BOLT, FLANGE (6MM)

90111-197-890

$3.67

WASHER (17.5MM)

90512-303-000

$1.77

CLIP, HIGH TENSION CORD (L. SIDE)

90658-ZA0-930

$2.48

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.69

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)

94201-30450

$1.49

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

BOLT, FLANGE (8X45)

95801-08045-00

$1.80
