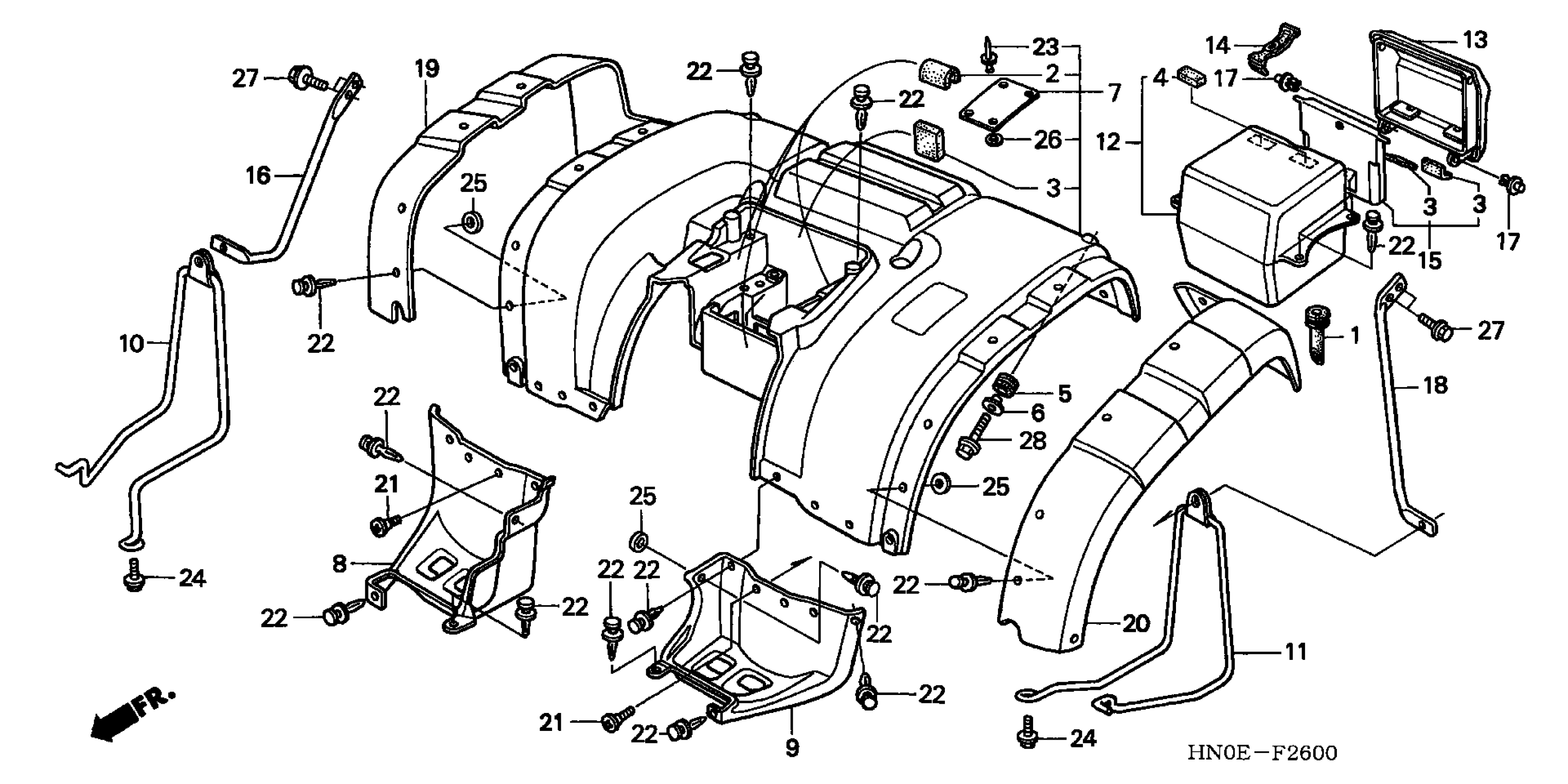

Honda TRX450FEA (04) FOURTRAX FOREMAN ES, USA, VIN# 478TE224-44500001 REAR FENDER Diagram

TUBE, DRAIN

17358-VM4-000

$10.24

RUBBER, BATTERY (30X75X3)

50383-HM7-300

Unavailable

RUBBER, BATTERY (30X40X3)

50384-HM5-670

$2.33

STOPPER, OIL TANK

55111-197-610

$5.51

RUBBER, FR. FENDER MOUNTING (Honda Code 4735148)

61103-HM5-850

$1.52

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

FENDER, RR. *G152* (ADVENTURE GREEN)

80100-HM7-A30ZA

$400.67

FENDER, RR. *R232* (PATRIOT RED)

80100-HM7-A30ZC

$377.74

FENDER, RR. *Y151R* (STARBURST YELLOW)

80100-HM7-A30ZE

$397.31

BOX, TOOL

80210-HM7-000

Unavailable

LID, TOOL BOX *G152* (ADVENTURE GREEN)

80211-HM7-A00ZA

$31.53

LID, TOOL BOX *R232* (PATRIOT RED)

80211-HM7-A00ZC

$33.44

LID, TOOL BOX *Y151R* (STARBURST YELLOW)

80211-HM7-A00ZE

$33.44

BAND, TOOL BOX

80214-HM5-850

$2.56

BOX, OWNER'S MANUAL

80215-HM7-000

$18.90

STAY, R. RR. FENDER

80217-HM7-A00

$30.54

RIVET, TOOL BOX

80217-958-003

$2.23

STAY, L. RR. FENDER

80218-HM7-A00

Unavailable

SPLASH GUARD, R. RR. SIDE *NH1* (BLACK)

80220-HM7-000ZB

$21.45

SPLASH GUARD, L. RR. SIDE *NH1* (BLACK)

80221-HM7-000ZB

$21.45

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

RIVET, POP (3.2)

90841-HF1-910

$1.49

WASHER, PLAIN (8MM)

94101-08700

$1.49

WASHER, PLAIN (3MM)

94103-03800

$1.49

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
