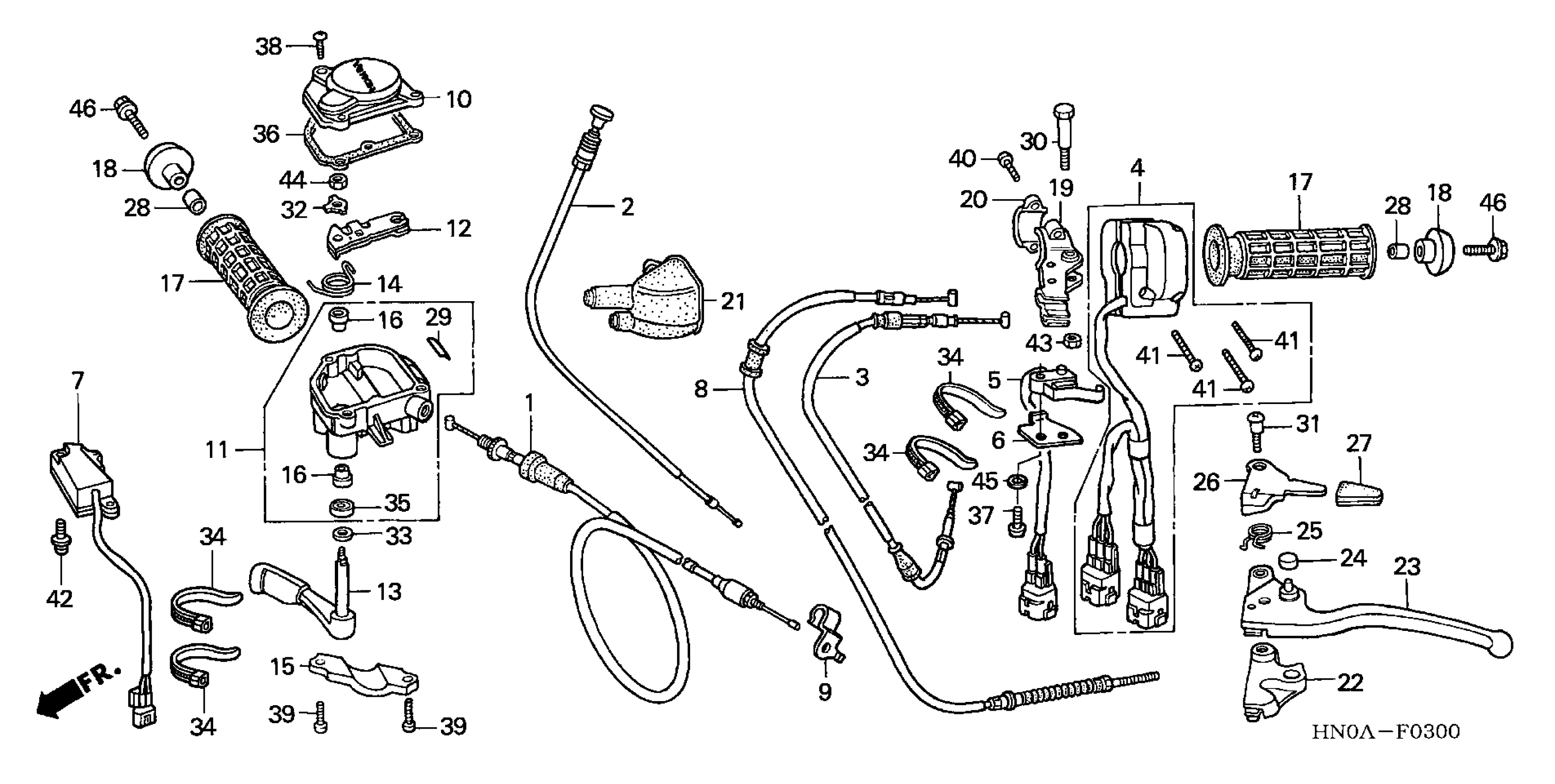

Honda TRX450FEA (04) FOURTRAX FOREMAN ES, USA, VIN# 478TE224-44500001 HANDLE LEVERS@SWITCHES @CABLES (TRX450FE) Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-HN0-A00

$41.32

2

CABLE, CHOKE

17950-HN0-A12

$10.56

3

CABLE, REVERSE ASSIST

22880-HN0-A00

$21.73

4

SWITCH SET, L. HANDLE

35020-HN0-A11

$160.16

5

SWITCH ASSY., REVERSE

35370-HN0-A10

$53.12

6

COVER, REVERSE SWITCH

35371-HN0-A10

$26.66

7

SWITCH ASSY., SELECT (2WD/4WD)

35400-HN0-671

Unavailable

8

CABLE, HAND BRAKE

43460-HN0-A00

$22.53

9

CLAMP, BRAKE CABLE

50352-HM7-000

$5.46

10

COVER, THROTTLE CASE

53141-HC3-000

Unavailable

11

CASE ASSY., THROTTLE LEVER

53143-HN0-305

$47.56

12

ARM, THROTTLE

53144-HA0-010

$7.72

13

LEVER, THROTTLE This part replaces 53145-HA0-305.

53145-HA0-770

$24.05

13

LEVER, THROTTLE

53145-HA0-770

$24.05

14

SPRING, THROTTLE RETURN

53146-HA0-000

$4.53

15

HOLDER, THROTTLE CASE

53147-HN0-670

$14.30

16

BUSH, THROTTLE PIVOT

53148-HA0-000

$8.00

17

GRIP, HANDLE

53165-958-010

$13.38

18

GUARD, HANDLEBAR END

53167-958-680

$6.40

19

BRACKET, BRAKE LEVER

53172-HN0-A11

$56.03

20

HOLDER, LEVER BRACKET

53173-376-000

$10.95

21

COVER, L. HANDLE LEVER

53177-HA0-680

$11.72

22

ARM, REVERSE ASSIST

53179-HN0-A10

$7.75

23

LEVER, RR. BRAKE

53180-HA8-770

$29.38

24

CAP, REVERSE PIN

53187-VM6-000

$3.89

25

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

26

LEVER, PARKING BRAKE LOCK

53192-HN0-A00

$12.96

27

CAP, PARKING LEVER

53193-HA0-770

$6.16

28

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

29

MARK, SELECT (2WD/4WD)

87516-HN0-670

$15.34

30

BOLT, HANDLE LEVER PIVOT

90114-HA0-770

$2.56

30

BOLT, HANDLE LEVER PIVOT This part replaces 90114-VM6-000.

90114-HA0-770

$2.56

31

SCREW, PARKING LEVER PIVOT

90115-HA6-000

$4.08

32

WASHER, LOCK (6MM)

90501-HA0-000

$2.92

33

WASHER (9X20)

90504-HA0-000

$2.28

34

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

35

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.92

35

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.92

36

GASKET, THROTTLE CASE

91532-HA0-020

$6.16

37

SCREW, PAN (3X12)

93500-03012-0H

$1.49

38

SCREW, PAN (4X16)

93500-04016-0G

$1.49

39

SCREW, PAN (5X14)

93500-05014-0G

$3.67

40

SCREW, PAN (5X18)

93500-05018-0G

$1.49

41

SCREW, PAN (5X28)

93500-05028-0G

$1.49

42

SCREW-WASHER (4X12)

93891-04012-07

$1.49

43

NUT, HEX. (6MM)

94001-06070-0S

$1.49

44

NUT, HEX. (6MM)

94002-06000-0S

$1.49

45

WASHER, SPRING (3MM)

94111-03800

$1.49

46

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
